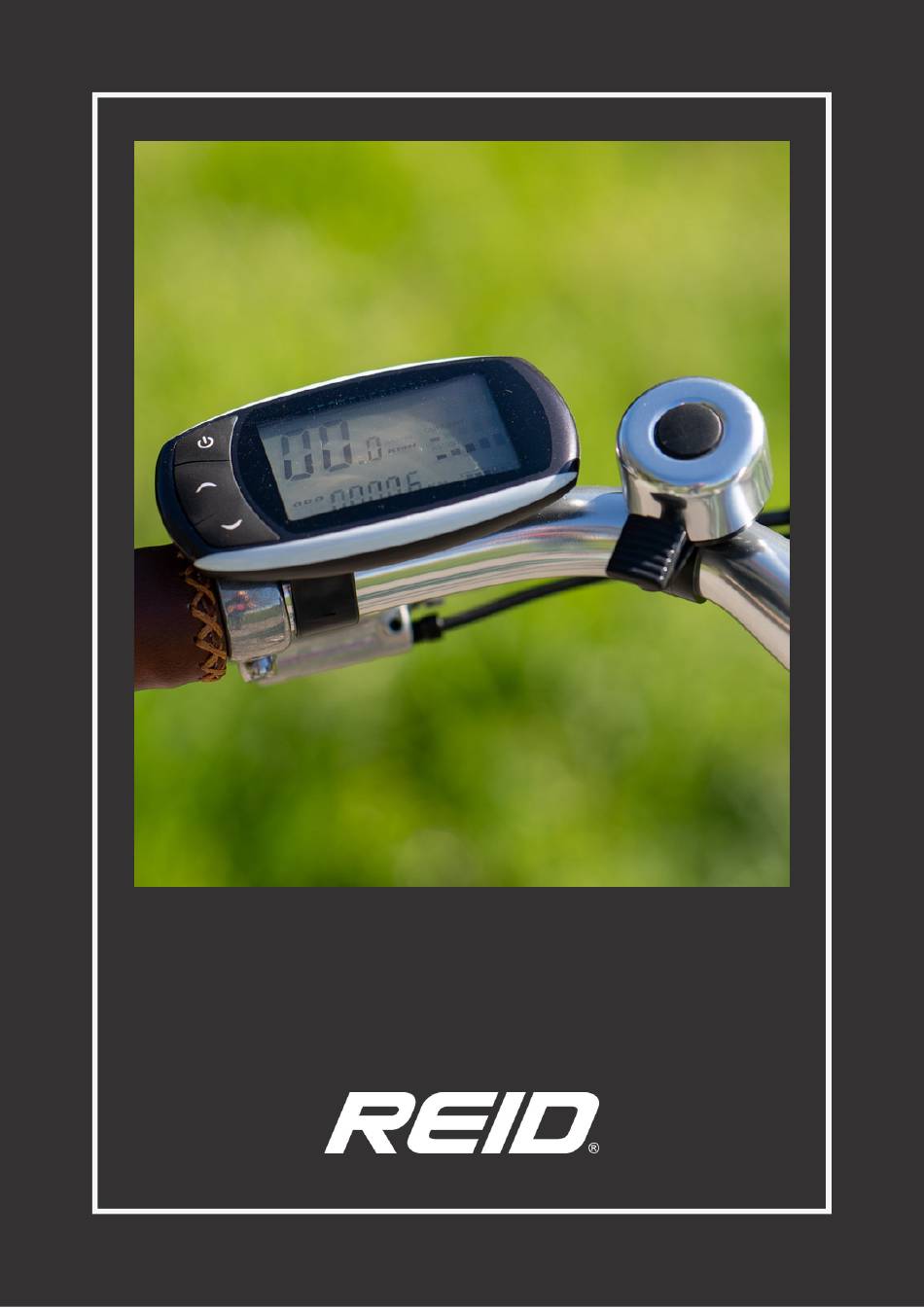

Ladies Classic eBike
Display Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the TC480 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reid TC480

Summary of Contents for Reid TC480

  • Page 1 Ladies Classic eBike Display Manual...
  • Page 2 TC480 Display Manual (with setup instructions) Appearance PG 1...
  • Page 3 2. The main screen display content 3. Typical Operating Voltage: 24V-48V PG 2...

  • Page 4: Display Description

    4. Display description Display Function Description Speed display unit Speed KM/H or MP/H. ODO for accumulative total ODO / TRIP mileage. TRIP for single mileage. Residual electricity display. Battery Indicator Display for cruise state. Cruise Identification Manufacturer used to set up the Wheel Diameter Set diameter of the wheel.
  • Page 5 5. Operating instructions Operation Display Function Description Press this button Press Once briefly to turn on Briefly the display. Press Once ON/OFF Press to turn on Briefly Headlamp and off the light. Press 2 times in a Press Twice Trip Mileage row to reset the Briefly Reset...
  • Page 6 Set the function 1 (wheel diameter setting) Press and hold Wheel Diameter Description below Wheel diameter setting: Hold the up and down arrows for 5 seconds to enter wheel diameter settings, the default speed display area will flash with the default factory settings. Release the two buttons and press '+' or '-' buttons to adjust to the required wheel diameter value.
  • Page 7 Should the problem not be fixed, please reach out to the retailer you purchased from or Reid at www.reidbikes.com/contactus/ and we’ll do our best to help.
  • Page 8 Ladies Classic eBike Display Manual...
