Page 1

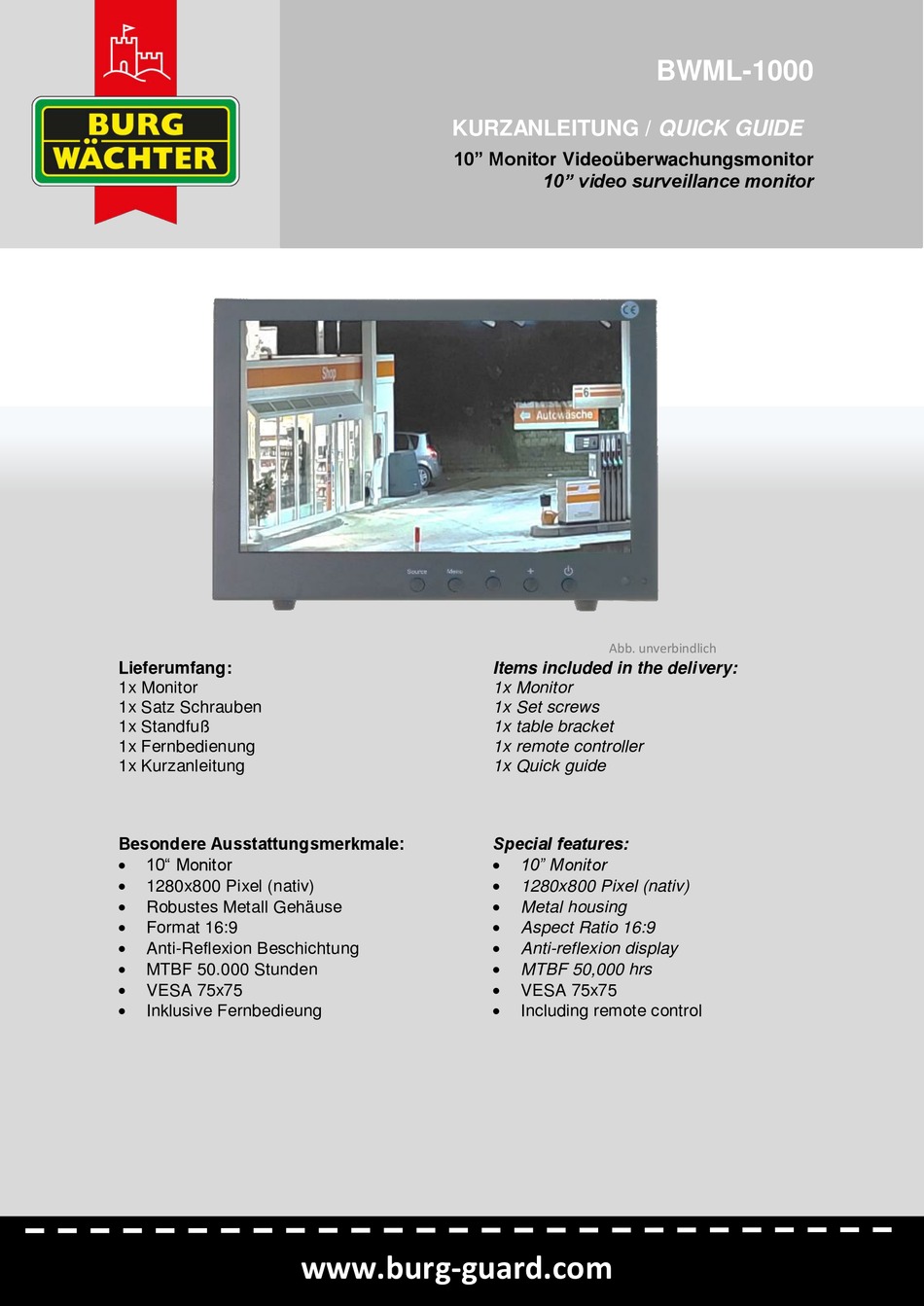

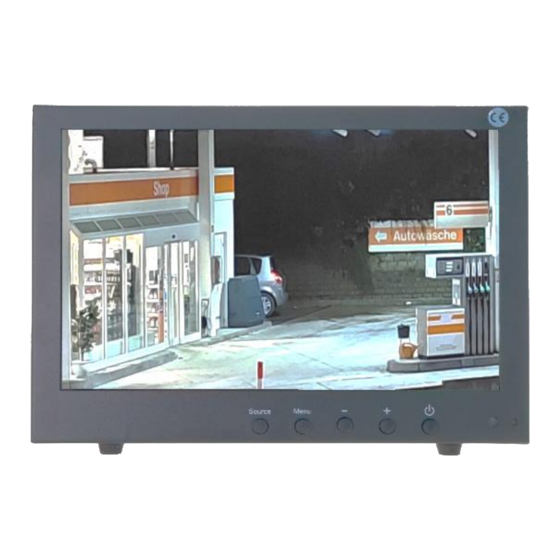

BWML-1000 KURZANLEITUNG / QUICK GUIDE 10” Monitor Videoüberwachungsmonitor 10” video surveillance monitor Abb. unverbindlich Lieferumfang: Items included in the delivery: 1x Monitor 1x Monitor 1x Satz Schrauben 1x Set screws 1x Standfuß 1x table bracket 1x Fernbedienung 1x remote controller...
Page 2
Trennen Sie das Gerät vor der Reinigung von der Steckdose. • Verwenden Sie keine Flüssig- oder Sprühreiniger. Verwenden Sie zur Reinigung ein trockenes, weiches, fusselfreies Tuch. Bei hartnäckigem Staub mit einem leicht feuchten Tuch abwischen. 2 | DEUTSCH ENGLISH BWML-1000...
• Unplug the unit from the wall outlet before cleaning. • Do not use liquid or spray cleaners. Use a dry, soft, lint-free cloth for cleaning. For stubborn dust, wipe with a slightly damp cloth. DEUTSCH ENGLISH | 3 BWML-1000...
Page 4
All dimensions in mm. Drawings not true to maßstabsgerecht. Irrtum, technische scale. We reserve the right to change technical Änderungen, geringe Maß- und specifications including slight variation in size Gewichtsdifferenzen vorbehalten. and weight, technical changes, errors excepted. 4 | DEUTSCH ENGLISH BWML-1000...
Page 5
Audio 3.5mm Audio-Eingang name description name description =12Vdc 10W Video In FBAS/CVBS Input HDMI HDMI socket for Typ A Video Out FBAS/CVBS Loop Output 15-pol. D-Sub Input Audio 3.5mm Audio-Input Inhalt Content Deutsch English S.12 DEUTSCH ENGLISH | 5 BWML-1000...
Page 6
Lautstärke erhöhen / verringern Automatische Anpassung AUTO (nur im VGA-Modus verfügbar) INFO Informationen werden angezeigt VGA-Signal auswählen HDMI HDMI-Signal auswählen AV-Eingangssignal auswählen SOURCE Umschaltung der Videosignaleingänge verfügbar nur Passwort eingegeben Sensor PIP POP SWAP einfrieren EXIT Menü verlassen 6 | DEUTSCH ENGLISH BWML-1000...
Page 7
Funktion HSTART: Legt den linken Ausrichtungspunkt des Bildes fest. HSIZE: Stellen Sie die horizontale Größe des Bildes ein. VSTART: Setzt den unteren Ausrichtungspunkt des Bildes. VSIZE : Stellen Sie die vertikale Größe des Bildes ein. DEUTSCH ENGLISH | 7 BWML-1000...
Page 8
(0–100) Stellen Sie ein, wie hell das Display ist. FARBTEMP.: Wählen Sie das Farbtemperaturmenü. FARBTEMP.: Voreingestellte Farbtemperatur auswählen. USER - R: Stellen Sie die ROT-Farbstufe ein. USER - G: Stellen Sie den GRÜNEN Farbpegel ein. USER - B: Stellen Sie die BLAU-Farbstufe ein. 8 | DEUTSCH ENGLISH BWML-1000...
Page 9
Größe des Bildes ein. Audio BASSE : ( 0-100 ) HÖHEN : ( 0-100 ) BALANCE : (-50 bis +50) SOUND MODE : Legen Sie Benutzer- oder voreingestellte Audiokonfigurationen fest. (Benutzer/Standard/Film/Musik) AVC : (EIN/AUS) Automatische Lautstärkeregelung DEUTSCH ENGLISH | 9 BWML-1000...
Page 10
(0-100) Stellen Sie die vertikale Position des OSD ein. DAUER : (5-60 ) Stellen Sie die Sekunden ein, in denen das OSD automatisch geschlossen wird. BACKLIGHT : Stellen Sie die Leistungsstufe ein, die von der Hintergrundbeleuchtung verwendet wird (HIGH/MID/LOW) 10 | DEUTSCH ENGLISH BWML-1000...
Page 11
Position durch. Audio BASSE : ( 0-100 ) HÖHEN : ( 0-100 ) BALANCE : (-50 bis +50) SOUND MODE : Legen Sie Benutzer- oder voreingestellte Audiokonfigurationen fest. (Benutzer/Standard/Film/Musik) AVC : (EIN/AUS) Automatische Lautstärkeregelung DEUTSCH ENGLISH | 11 BWML-1000...
VGA signal HDMI HDMI signal AV input signal Press it to display and select the Source available video signal available only password entered Sensor Freeze PIP POP SWAP EXIT Press this button to exit the menu 12 | DEUTSCH ENGLISH BWML-1000...
Page 13
Set power level in use by backlight (HIGH/MID/LOW) MEM-RECALL: Restore all factory defaults. Function HSTART: Set left alignment point of image. HSIZE: Set horizontal size of image. VSTART: Set lower alignment point of image. VSIZE: Set vertical size of image. DEUTSCH ENGLISH | 13 BWML-1000...
(0–100) Set how bright the display is. COLOR TEMP: Select the color temperature Menu. COLOR TEMP: Select color temperature preset. USER - R: Set RED color level. USER - G: Set GREEN color level. USER - B: Set BLUE color level. 14 | DEUTSCH ENGLISH BWML-1000...
Page 15
Set lower alignment point of image. VSIZE: Set vertical size of image. Audio BASS: (0-100) TREBLE: (0-100) BALANCE: (-50 to +50) SOUND MODE: Set user or preset audio configurations. (User/Standard/Movie/Music) AVC: (ON/OFF) Automatic Volume Control DEUTSCH ENGLISH | 15 BWML-1000...
(0-100) Set the horizontal position of the OSD. V-POSITION: (0-100) Set the vertical position of the OSD. DURATION: (5-60) Set seconds for the OSD to automatically close. BACKLIGHT: Set power level in use by backlight (HIGH/MID/LOW) MEM-RECALL: Restore all factory defaults. 16 | DEUTSCH ENGLISH BWML-1000...
Perform an automatic configuration of the Phase, Clock, vertical and horizontal position. Audio BASS: (0-100) TREBLE: (0-100) BALANCE: (-50 to +50) SOUND MODE: Set user or preset audio configurations. (User/Standard/Movie/Music) AVC: (ON/OFF) Automatic Volume Control DEUTSCH ENGLISH | 17 BWML-1000...
Page 18
Technische Daten / Technical specifications BWML-1000 Modell / Model BWML-1000 Typ / type Videoüberwachungsmonitor Installation / Installation Innenbereich / indoor Größe / size 10.1“ Unterstützte Videostandards 960H CVBS/FBAS (Analog) supported video standards Unterstützte Auflösungen 1280x800 (nativ); 1920x1080 (skaliert) 960H (CVBS/FBAS) HDMI Eingang / HDMI Input 1x HDMI 1.4...
Page 19
Handbuch direkt auf Ihr view the user manual on your smartphone or Smartphone oder Tablet zu erhalten. tablet. Link Link Aktuelle Informationen finden Sie auf unserer Latest updates can be found on our homepage Webseite unter www.burg-guard.com www.burg-guard.com DEUTSCH ENGLISH | 19 BWML-1000...
