SMC Networks IZS30 SERIES Operation Manual

Izs30 series ionizer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

OPERATION MANUAL

PRODUCT NAME:
MODEL:
○Read this operation manual carefully to
understand before installation and operation.
○Pay extra attention on the clause concerning the
safety.
○Keep this operation manual available whenever
necessary.
DOCUMENT No. : IZ*-OMJ0003
Ionizer
IZS30 Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IZS30 SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks IZS30 SERIES

Summary of Contents for SMC Networks IZS30 SERIES

  • Page 1: Operation Manual

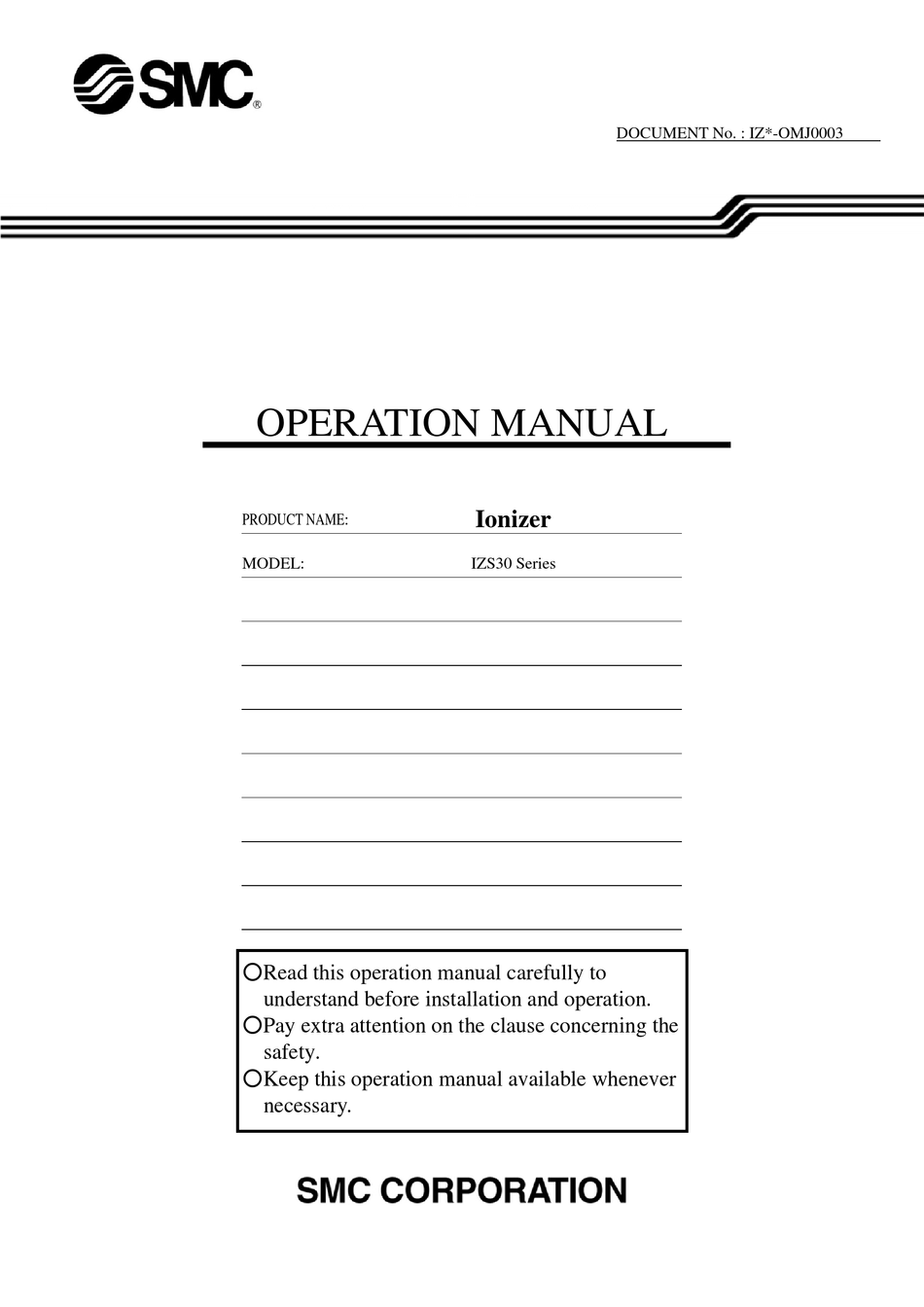

    OPERATION MANUAL Ionizer PRODUCT NAME: MODEL: IZS30 Series ○Read this operation manual carefully to understand before installation and operation. ○Pay extra attention on the clause concerning the safety. ○Keep this operation manual available whenever necessary. DOCUMENT No. : IZ*-OMJ0003...

  • Page 2: Table Of Contents

    1. Safety instructions...2 2. How to order...6 3. Specifications ...7 3-1. Ionizer...7 3-2. Surface electric potential sensor ...7 4. Installation...8 4-1. Installation of Ionizer body ...8 4-2. Installation of surface electric potential sensor ...9 4-3. Connection of cable ...10 5. Function description ...15 5-1.

  • Page 3: Safety Instructions

    1. Safety instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard by labeling "Caution", "Warning", and "Danger". To ensure safety, be sure to observe ISO4414, JIS B8370and other safety precautions. CAUTION Operator error could result in injury or equipment damage.
  • Page 4 6. Be sure to install and adjust after power supply is stopped. CAUTION 1. Install IZS30 series with keeping distance from the wall etc. as shown in the figure below. The generated ion might not reach the target effectively and efficiency decrease, where there is wall etc.
  • Page 5 WARNING 1. Check that power supply capacity is enough and voltage is in specification before piping. 2. Apply type D earthing to prevent electrical shock in accordance with instructions on this operation manual. 3. Be sure to cut off power supply at wiring (inclu/ding connector plug-in/out) . 4.
  • Page 6 product. k. The place where strong high frequency is generated. l. The place where lightning disaster is expected. m. The place where the product is directly exposed to the vibration and impact. n. The situation where the force and weight that causes deformation of the product is applied. 3.

  • Page 7: How To Order

    2. How to order Ionizer Product name I Z S 3 0 Bar ype Ionizer Bar length 300 mm 780 mm 1260 1260 mm 1500 1500 mm 1900 1900 mm Sensor Mounted ∗ Not mounted Sensor Part name Sensor Cable Part name Cable Bracket...

  • Page 8: Specifications

    3. Specifications 3-1. Ionizer Ionizer model Type Ion generation principle Voltage supply method Discharge output Ion balance *1 Fluid Air supply flow rate *2 (L/min[ANR]) Purge air Op. pressure (MPa) Connection tube size Power supply voltage Sensing DC mode operated Current Sensing DC mode consumption...

  • Page 9: Installation

    4. Installation 4-1. Installation of Ionizer body Investigate the places where static problem occurs, or process and parts which generate ESD (Electro static discharge), and carefully consider the required conditions to ensure appropriate static charge elimination before installation. Operating distance and static charge elimination time: See [1. installation distance and static charge elimination time of 6-1.Static charge elimination characteristics (reference) ].

  • Page 10: Installation Of Surface Electric Potential Sensor

    4. Adjust angle of the ionizer body to ensure proper static charge elimination, and fix it with detent threads (M5) of brackets. Recommended tightening torque for detent thread: 1.5Nm Detent thread 4-2. Installation of surface electric potential sensor In case of using a surface electric potential sensor, install it on the place which can realize the precise sensing in order for the detecting hole to sense the target’s static charge.

  • Page 11: Connection Of Cable

    3. Peal off the seal attached on the detecting hole of the surface electric potential sensor. 4. Direct the surface electric potential sensor to the target’s static charge as adjusting the angle, and fix the detent thread (M5) of bracket. Recommended tightening torque for detent thread : 1.5 Nm 4-3.
  • Page 12 2. Arrange lead wires in accordance with the wiring table. The unused wires should be cut short or covered with vinyl tape without pealing the coat to prevent them from coming contact with other wires. See [4-4. Connection circuit ]. Wiring table for power supply cable IZS30-CP Lead wire Description...
  • Page 13 2. Arrange lead wires in accordance with the wiring table. The unused wires should be cut short or covered with vinyl tape without pealing the coat to prevent them from coming contact with other wires. See [4-4. Connection circuit ]. Wiring table for power supply cable IZS30-CP Lead wire Description...
  • Page 14 4. Insert the modular plug on the other side of sensor cable IZS30-CS into the modular jack of the electric potential sensor. If the modular plug is properly inserted and locked, a lever clicks to notify it’s locked. Fix cables with a tie wrap or other measures in the vicinity of connection not to apply compulsive force to the modular jack and plug.
  • Page 15 4-4. Connection circuit Ionizer POWER connector Power supply DC21.6 to 26.4V OUTPUT INPUT [Note 1] [Note 2] the ionizer operation. [Note 3] Input and output operation list Lead wire Name Stop signal of charge elimination Signal for abnormal High voltage Signal for abnormal sensing Signal for static...

  • Page 16: Function Description

    5. Function description 5-1. Operation mode Three operation modes are available in IZS30. Use these modes depending on applications and operating conditions. Op. mode Operation After surface electric potential sensor detects polarity potential of the target’s static charge, generates anti-polarity continuously. Discharge plus minus...

  • Page 17: Output Signal

    5-2. Output signal Signal type Signal for static charge elimination completion (When surface electric potential sensor is used) Abnormal high voltage Abnormal sensing 5-3. Function description of indication 1. Power supply indication…Light on Green when power supply is turned ON. 2.

  • Page 18: Selection And Setting Of Equipment

    6. Selection and setting of equipment 6-1. Sensing DC mode 1. selection of bar length Select the length applicable to work size base on [2. static charge elimination area of 7-1. static charge elimination characteristics (reference)] 2. Installation of ionizer body Installation of ionizer body: Install within 200mm to 2000mm from the target’s static charge See data of [1.

  • Page 19: Technical Data

    7. Technical data 7-1. Static charge elimination characteristics (reference 1. Installation distance and static charge elimination time Installation distance and static charge elimination time (W/O air purge) Installation distance and static charge elimination time With air purge Target’s static charge work Charged plate Dimension: 150×150mm Capacity:20pF Meas.
  • Page 20 2. Static charge elimination area Ionizer depth direction Air purge : N/A Surface potential Sensor : N/A Op. Frequency: 33Hz Target’s work of static charge Charged plate dimensions: 150×150mm Capacity:20 F Meas. Cond.: static elimination time 3kV 0.3kV Ionizer width direction Air purge : N/A Surface potential Sensor : N/A Op.
  • Page 21 Ionizer depth direction (with air purge) Air purge amount : 20l /min ANR Surface potential Sensor : N/A Op. Frequency: 33Hz Ionizer width direction with air purge Ionizer depth direction -Installed position of target’s static charge mm Target’s work of static charge Charged plate dimensions: 150×150mm Capacity:20 F Meas.
  • Page 22 Charged amount and static charge elimination time Operating frequency and static charge elimination time (W/O surface electric potential sensor) Installation distance and static charge elimination time Target’s work of static charge Charged plate dimensions: 150×150mm Capacity:20 F Meas. Cond.: static elimination time for 3kV 0.3kV 33Hz Common conditions Installed height:250mm...

  • Page 23: Outline Dimensions

    Installation distance and static charge elimination time IZS30-1260** IZS30-1500** IZS30-1900** 7-2. Outline dimensions 1. Ionizer (IZS30-**) Trimmer for ajusting I/B 2-Pipefitting with check valve AKH04B-M5-X275 n (Number of Cartriges) IZS30-300** IZS30-780** IZS30-1260** IZS30-1500** IZS30-1900** n (Number of Cartriges) (Air purge amount:Refer to Flow rate of air purge in 3.Specification) Model L (mm) IZS30-300**...
  • Page 24 End bracket (IZS30-BE) Thread for mounting M5 (Should be prepared by user) Intermediate bracket IZS30-BM Attached thread M4X10L Angle ajustment available (±90°) Thread for mounting M5 (Should be prepared by user) Angle ajustment available (±90°)
  • Page 25 Surface electric potential sensor (IZS30-D1) Detecting hope 6P Modular jack (For Sensor plug for cable) Sensor bracket (IZS30-BS) Shaft 8 for mounting (Should be prepared by user) 2X2-M5X0.8 dpt6 2-M5X0.8 dpt7 Mounting hole 8 Attached thread M5x0.8 IZS30-D1...
  • Page 26 Power supply cable (IZS30-CP) Sensor cable (IZS30-CS)

This manual is also suitable for:

Izs30-300Izs30-780Izs30-1260Izs30-1500Izs30-1900
