Summary of Contents for OKIN DF04.01

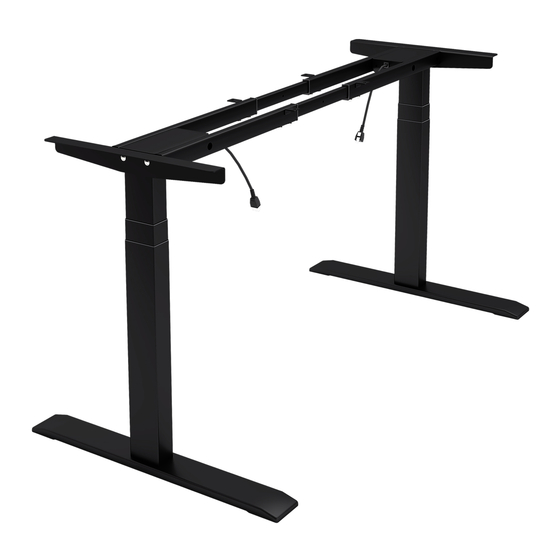

- Page 1 DF04.01 Operation Manual for Height-Adjustable Desk...
- Page 3 DO NOT RETURN !!! *You can check the installation guide from this YouTube video: https://youtu.be/3vXltfJSem4 Or scan this QR code to check the video *About how to use, you can see YouTube video https://youtu.be/HFkRBbSdqm8 You can also scan the QR code to check it:...
-
Page 4: Warranty
Warranty ABOUT TOPSKY 5 YEAR WARRANTY: This product come with 5-year warranty from the date of purchase.Any failure/function issues from normal usage will be replaced free of charge or refund once within one year of the date of purchase. A failure is a mechanical breakdown of or defect in the unit that affects the user's ability to operate the product as intended. - Page 5 Caution Keep children and pets away from the electric high-adjustable desk during the operation. Unplug the power cord during a thunderstorm or if you do not intend to use the desk for long time. Make sure desktop not touch the wall. Ensure no obstacles in the desk’s path, and no any object above 20”...
-
Page 6: Parts List
Parts list Assembling time Two people Part name Part name Qty (Pcs) Qty (Pcs) Foot ST3.5*16 screw Column Power cord Power adapter Side bracket Right rail Control box Handset Left rail Extension rail Extension cable Cable clip M6*8 screw M5 allen key M6*10 screw M6*16 screw ▲8 of M6*16 Screws just for the board which sold by TOPSKY. -
Page 7: Installation Instructions

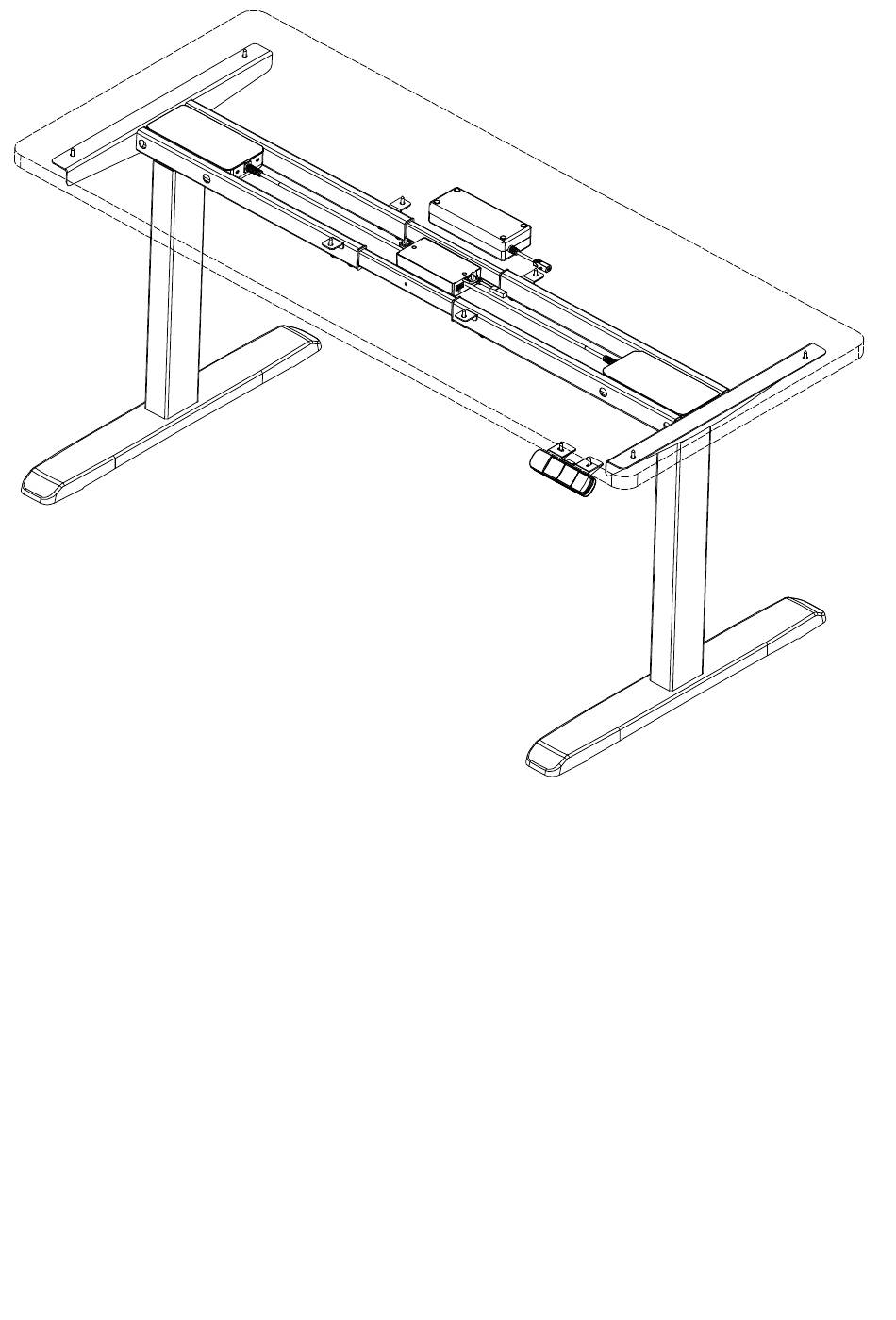

Installation Instructions Warning: 1.Control box with Gyro: please fixed it under the table board before the first use. 2.Do not use the Guide Sleeves if the frame length needed less than 1220mm. · Place the right and left rails on an even surface as shown below. ·... - Page 8 Installation Instructions · Tighten the screws for desk feet and columns. STEP 4 M5 allen key M6*16 screw Foot · Please adjust and leave the side brackets to both edges of the desktop for 2'', then tighten the screws. STEP 5 ·...
-
Page 9: Manual Reset
Instruction ▲ ● Manual Reset • Keep pressing "down" key till display shows "E-1" and "rES" alternately and release the key. • Keep pressing "down" key again, the desktop will move slowly down and return back till the display shows "060" or "23.6"(Depends on your version of the control box). - Page 10 Instruction Do not enable this function unless ● High and Low Limitation Positions you are really need in some situation. • Keep pressing key "S" till the display shows "S - -" • Press "up" key till the display flash as "HLP". •...
- Page 11 Instruction ● Anti-Collision function • Once the desktop encounters any obstacle in its path, the screen displays "E-2". • The desktop will move a defined distance in opposite direction, and it would be used normally after removing the obstacle. The function can detect whether the motors are ●...
-
Page 12: Troubleshooting
Code meaning and Trouble shooting Code meaning Code Information Operating Manual resetting Refer to the progress of manual reset Remove the load on desktop till it less than 1330N / 136KG / Overloading 300LBS(including the desktop) for further operation Anti-Collision function It can be used normally after removing the obstacle Operated continuously Make the desk rest around 18minutes for further operation...
