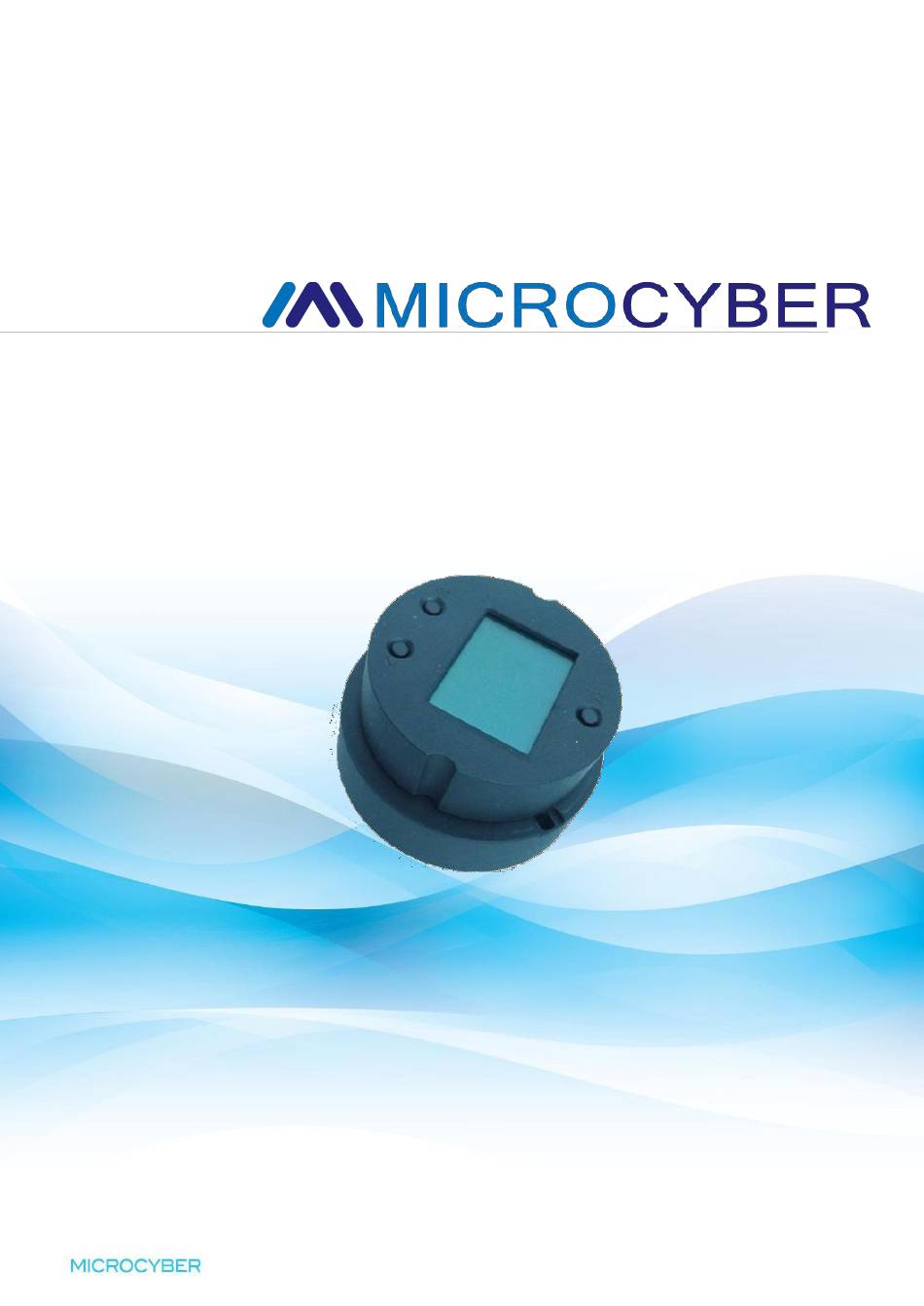

- Page 1 MS0210 HART Temperature Board Set User Manual Microcyber Corporation...
- Page 2 Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the information in this publication is reviewed regularly and any necessary corrections are included in subsequent editions. Microcyber Corporation 2015 The technical data may change at any time.
-
Page 3: Table Of Contents
Table of Contents Section 1 Overview........................1 Section 2 Introduction....................... 2 Dimension........................2 Hardware Interface......................2 Failure Alarm and Configuration Protection DIP Switch.......... 3 Bus Power Interface....................3 Sensor Wiring......................4 System Connection..................... 4 Section 3 Temperature Board Set Setting................5 Topology Connection....................5 3.1.1 (4~20) mA Compatible Mode................. - Page 4 Table of Figures Figure 1 Temperature Board Set Dimension................2 Figure 2 Hardware Interface Introduction.................. 2 Figure 3 Temperature Board Set Sensor Wiring................. 4 Figure 4 System Connection......................4 Figure 5 (4~20) mA Compatible Mode..................5 Figure 6 Networking Mode......................6 Figure 7 Basic Information......................7 Figure 8 Configuration Information....................
-
Page 5: Overview

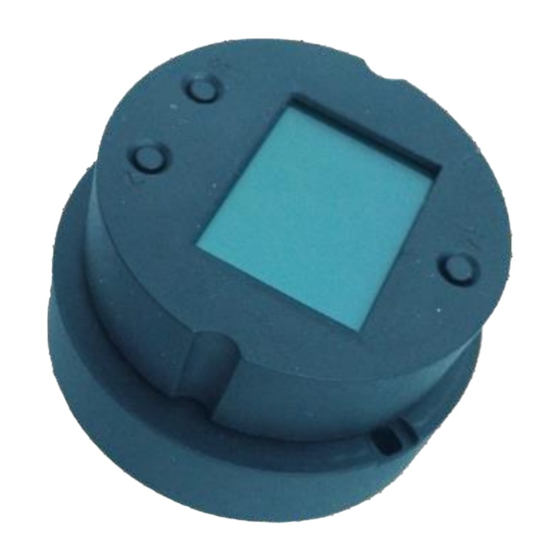

HART temperature board uses digital technology and it shall match multiple thermal resistance and thermocouples sensors. It has wide range and simple interface between field and control room, which reduces the expense of installation, operation and maintenance. Page 1 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... -
Page 6: Introduction
There are 3 main interfaces for HART temperature board set: Alarm setting (AL) and configuration protection setting (WP) hardware DIP switch; J1, HART bus power interface (P+ and P-); J5, temperature sensor connection interface. Page 2 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... -
Page 7: Failure Alarm And Configuration Protection Dip Switch
2.4 Bus Power Interface MS0210 HART temperature board set power and bus share the same a pair of cable and it is called bus cable. The specific fieldbus cable recommended by IEC61158-2 is suggested. -
Page 8: Sensor Wiring
RTD represents thermal resistive type sensor. 2.6 System Connection 24VDC HART HartMPT Terminal Temperatur 250Ω Configuration HART Modem Board e Board Set Software for PC Figure 4 System Connection Page 4 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... -
Page 9: Topology Connection
Figure 5 (4~20) mA Compatible Mode Feature： 1) Connect to upper control system via AI module and HART communication device; 2) Use digital and analog communication; 3) Device address is 0. Page 5 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... -
Page 10: Networking Mode
3) Support 64 (polling address is 0~63) devices networking for HART 7.0. 3.2 Function Configuration HART temperature board set supports Microcyber’s HartMPT Configuration Software and universal software such HART Organization’s SDC625 for configuration debugging. Following is an example for HartMPT Configuration Software, including functions: 1) Basic information configuration: configure the basic information of device online, including tag, address, date, assemble number and so on;... -
Page 11: Basic Information Configuration
(damp value, unit, upper limit and lower limit) and range calibration, etc., shown as Figure 8. Page 7 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... -
Page 12: Sensor Configuration
You may check the current configuration sensor info (upper limit, lower limit and minimum span) via sensor info TAB. Also, you may configure the sensor type and wiring with it, Page 8 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... -
Page 13: Figure 9 Sensor Configuration
N type thermocouple R_TC R type thermocouple S_TC S type thermocouple T_TC T type thermocouple Wiring: It can be set as 2-wire, 3-wire or 4-wire, only effective to RTD. Page 9 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... - Page 14 Cold-end Compensation: enables disables thermocouple’s cold-end Page 10 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn...
-
Page 15: Current Calibration
5) Select “current value” as 20mA, when the ammeter is stable, input the value in ammeter to “adjustment value”, and then click “Apply”. 6) Select “current value” as blank, makes the device output current as PV value. Page 11 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... -
Page 16: Figure 10 Current Calibration
Note: Calibration current and fixed current output functions are only in the moment when the polling address is 0. It will be at absolute digital communication mode at other polling addresses, the failure info is “Command Execution Failure”. Page 12 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... -
Page 17: Variable Monitoring
The present refreshing variables are: PV value, current value, percentage and cold end temperature. Figure 11 Variable Monitoring Page 13 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... -
Page 18: Adjustment In The Field
“SUCCESS”. Otherwise, there is “FAILED” is save is not successfully or no modification. Now the local adjustment functions are finished, the user shall adjust many function items once, and then adjust to “Fun 99” to save all the data once. Page 14 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... -
Page 19: List Function Items
SAVE function to finish local adjustment. Notes: If the sensor type is resistive, there shall be no display for “Fun 25” cold end compensation function in list. Page 15 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... - Page 20 If the sensor type is resistive, and the wiring is not 2-wire, or the sensor type is mV, Page 16 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn...
-
Page 21: Description For Special Symbols
保存成功后，系统自动进入 Value automatically to 到测量值显示界面 Display measurement value display Figure 12 Function Switch 4.4 Description for Special Symbols No. Display Description PV mark SV mark Page 17 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... - Page 22 Square root mark Page 18 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn...
- Page 23 Smaller or equal to range lower limit mark Write protection mark Alarm mark Communication mark Page 19 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn...
-
Page 24: Maintenance
Check sensor short circuit, open circuit, and earthing. Check sensor Noise Disturb Reading Error Adjust damping Check the house earthing Check the terminal Check the cable is away from the strong electromagnetic interference Page 20 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... - Page 25 Software Configuration Check sensor type configuration Check function block parameter configuration Temperature Module Failure Replace the temperature module with others for testing. Page 21 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn...
-
Page 26: Technical Specification
2/3/4 wire Display COG128x64 Working Temperature (-20~70)℃ Storage Temperature (-40~85)℃ Start Time ≤5s Refresh Time 0.5s Humility Range (5~95)% RH Isolation Voltage 500 VAC GB/T 18268.1-2010 GB/T 18268.23-2010 Page 22 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... -
Page 27: Rtd Parameter
RTD Other Parameter Wiring 2/3/4 Common Mode Rejection ≥70 dB (50 Hz and 60 Hz) Series Mode Rejection ≥70 dB (50 Hz and 60 Hz) Temperature Effect <50 ppm/℃ Page 23 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... -
Page 28: Thermocouple Parameter
B, E, J, N, K, R, S, T; (-100~100)mV Voltage Common Mode Rejection ≥70 dB (50 Hz and 60 Hz) Series Mode Rejection ≥70 dB (50 Hz and 60 Hz) Temperature Effect <50 ppm/℃ Page 24 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn... - Page 29 YOUR FIELDBUS EXPERT CONTACT INFORMATION Address: 17-8 Wensu Street, Hunnan New District, Shenyang, China Website: www.microcyber-fieldbus.com Phone: +86-24-31217278/+86-24-31217280 Fax: +86-24-31217338 Email: fang.siqi@microcyber.cn Page 25 HART Temperature Board Set | MS0210 | Email | fang.siqi@microcyber.cn...
