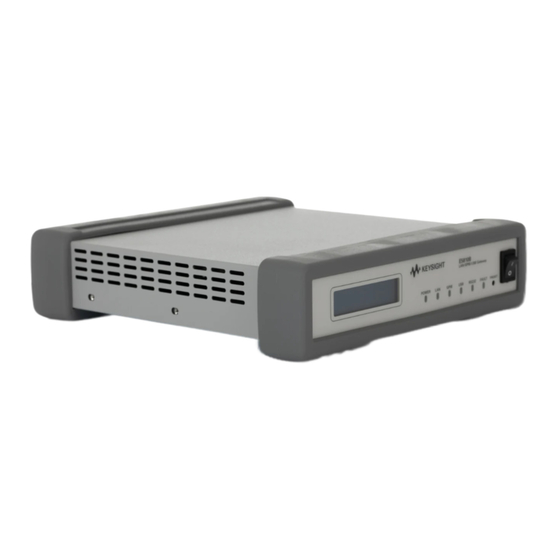

- Page 1 Keysight E5810B LAN/GPIB/ USB Gateway Rackmount Installation Guide (Option 200)
- Page 2 Do not proceed beyond a WARNING acquires no greater than Limited Rights as defined in FAR 27.401 or DFAR notice until the indicated conditions are 227.7103-5 (c), as applicable in any fully understood and met. technical data. Keysight E5810B Rackmount Installation Guide (Option 200)
- Page 3 ..........12 Keysight E5810B Rackmount Installation Guide (Option 200)
- Page 4 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight E5810B Rackmount Installation Guide (Option 200)
- Page 5 E5810-00035 or E5810-00045) will be included in the rackmount kit. 1 Remove both rubber bumpers from the E5810B. 2 Using a Torx screwdriver, attach the rackmount bracket - half rack (B) to the E5810B with three panhead screws, M4X10 (E).
- Page 6 Keysight E5810B Rackmount Installation Guide (Option 200)
- Page 7 5 Using a Torx screwdriver, attach the rack ears to the rack with four machine screws (F), four machine nuts (G), and eight plastic washers (H). Keysight E5810B Rackmount Installation Guide (Option 200)
- Page 8 E5810-00035 or E5810-00045) will be included in the rackmount kit. 1 Remove both rubber bumpers from the E5810B. 2 Plug the E5810B power adapter (C) into the DC power port of the E5810B. Place the power adapter into the power adapter holder (B).
- Page 9 Keysight E5810B Rackmount Installation Guide (Option 200)
- Page 10 E5810-00035 or E5810-00045) will be included in the rackmount kit. 1 Remove both rubber bumpers from the E5810B. 2 Plug the E5810B power adapter (C) into the DC power port of the E5810B. Place the power adapter into the power adapter holder (B).
- Page 11 4 Using an Allen key, attach the CTH manipulator mounting bracket to the rack with four HD Cap Hex socket screws, M6X10 (E) and four washers (F). Keysight E5810B Rackmount Installation Guide (Option 200)
- Page 12 E5810-00035 or E5810-00045) will be included in the rackmount kit. 1 Remove both rubber bumpers from the E5810B. 2 Plug the E5810B power adapter (C) into the DC power port of the E5810B. Place the power adapter into the power adapter holder (B).
- Page 13 4 Using a Torx screwdriver, attach the ATH cart mounting bracket to the rack with two panhead screws, M5X10 (D). Keysight E5810B Rackmount Installation Guide (Option 200)
- Page 14 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight E5810B Rackmount Installation Guide (Option 200)
- Page 15 This information is subject to change without notice. Always refer to the English version at the Keysight website for the latest revision. © Keysight Technologies 2014-2022 Edition 3, May 2022 Printed in Malaysia *E5810-90007* E5810-90007 www.keysight.com...
