Summary of Contents for Logic LG-HE50M

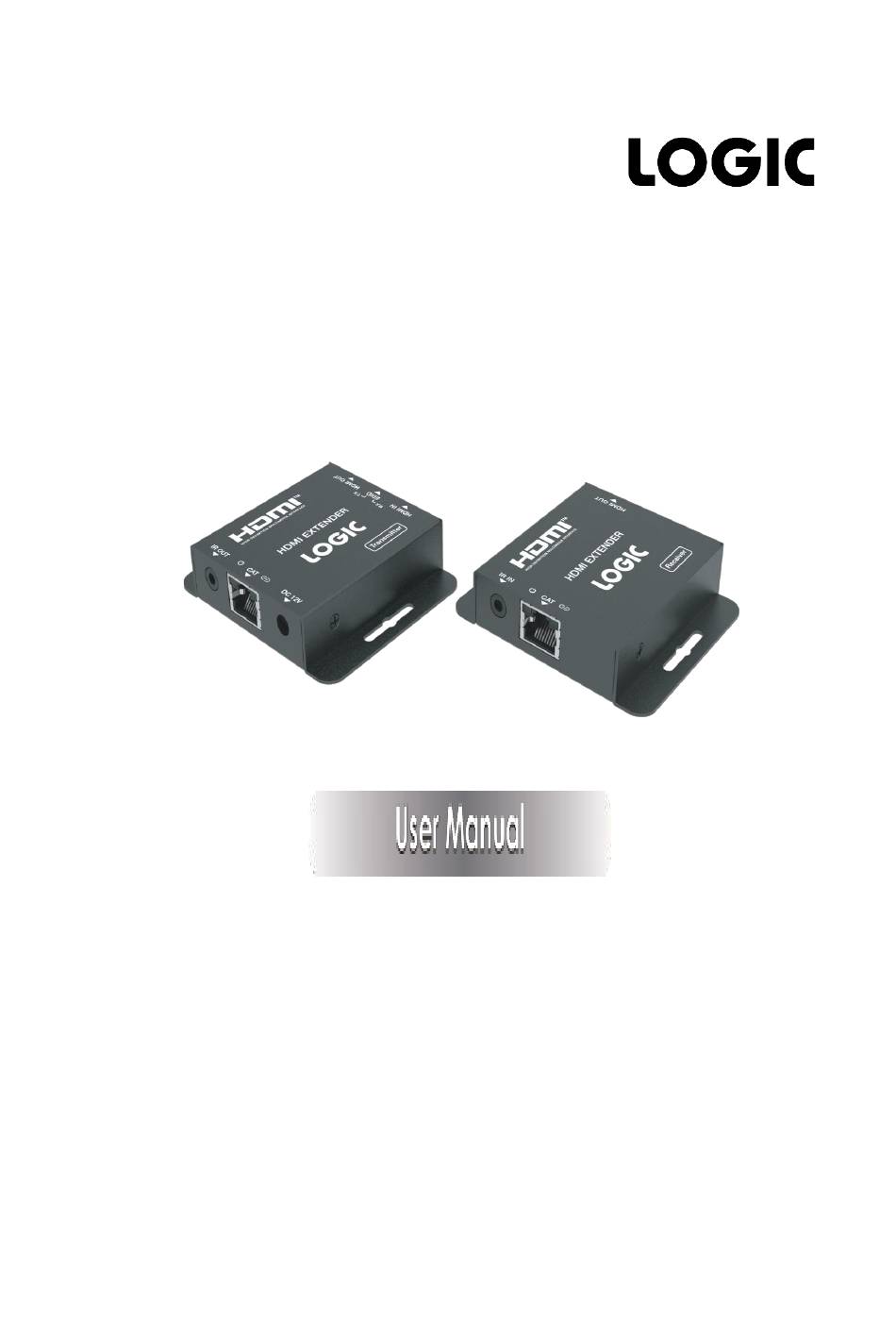

- Page 1 HDMI Extender with IR Control Model No. LG-HE50M Version: LG-HE50M_2021...
- Page 2 HDMI Extender with IR Control-LG-HE50M SAFETY PRECAUTIONS For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lighting strikes, etc.
-
Page 3: Table Of Contents
HDMI Extender with IR Control-LG-HE50M Table of Contents Introduction ..................................................1 Features .................................................... 1 Package Contents..............................................1 Specification .................................................. 2 Operation Controls and Functions ......................................2 ............................. 2 RANSMITTER ANEL ............................3 ECEIVER ANEL IR P ............................4 EFINITION Application Example ............................................... 5... -
Page 4: Introduction
HDMI Extender with IR Control-LG-HE50M Introduction This HDMI Extender can extend high-definition video/audio signal and IR control signal up to 230 ft./70 m for 1080p resolution, and 131ft/40 m for 4K30 resolution via a single CAT6 cable, which can achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver. -
Page 5: Specification
HDMI Extender with IR Control-LG-HE50M Specification Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 Video Bandwidth 10.2 Gbps Video Resolution Up to 4K@30Hz Audio Support Up to 7.1CH HD audio Input TMDS Signal 3.3 volts Input DDC Signal 5.0 volts/P-P... -
Page 6: Receiver Panel
HDMI Extender with IR Control-LG-HE50M Name Function Description HDMI IN HDMI signal input port. Connect to HDMI source device such as DVD or Set-top box. EDID The switch is used for selecting EDID: Switch to the right DIP Switch position, the extender will copy HDMI loop out display EDID information to signal source;... -
Page 7: Ir Pin Definition
HDMI Extender with IR Control-LG-HE50M IR Pin Definition IR Receiver and Blaster pin definition is as below: www.logicav.in... -
Page 8: Application Example
HDMI Extender with IR Control-LG-HE50M Application Example The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. www.logicav.in...
