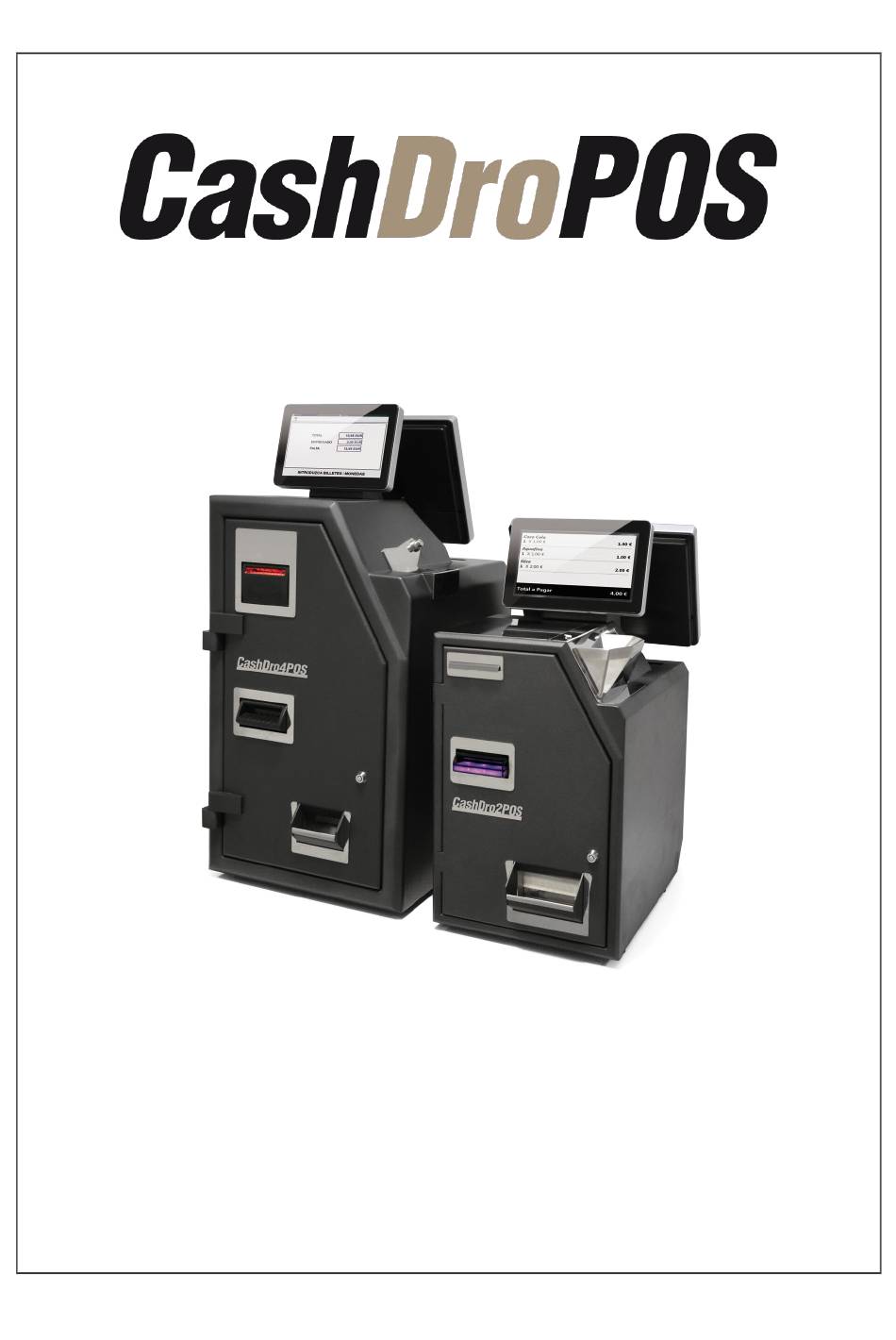

- Page 1 Screen's Installation Manual...
-
Page 2: Table Of Contents
Index 1. Packaging content..................1 1.1. Packing CashDroPOS - Screens................1 1.2. Packing CashDro - CashDro..................2 1.3 Outdoor Wiring CashDro.....................2 2. Mount screens....................3 Step 1 - Mounting brackets....................3 Step 2 - Installing second screen..................4 Step 3 - Installing POS Touch....................5 Step 4 - Connecting the wires to touch POS..............6... -
Page 3: Packaging Content
1. Packaging content 1.1. Packing CashDroPOS - Screens The box contains the POS CashDroPOS Touch, the second screen and VESA mount 10” Second Screen POS 15” VESA Support 1. Packaging content | 1... -
Page 4: Packing Cashdro - Cashdro
1.2. Packing CashDro - CashDro In the box you will find CashDro4 CashDro2 or support for second screen and into a bag packed with all the necessary screws for mounting screens. Second screen support Screws 1.3 Outdoor Wiring CashDro CashDro includes the following cables: ❶... -
Page 5: Mount Screens
1. Unpacking second screen support. Screws are included in this package: 2. Separate Part VESA 3. Place the support on the second screen CashDro 4. 2 8x20 Screw Allen screws holding the VESA bracket placed on the second screen support... -
Page 6: Step 2 - Installing Second Screen
Step 2 - Installing second screen 1. VGA Pass the cable through the hole of the support 2. Connect the cable to the second screen 3. Screw the second screen to the support (2 Star 4x8 screws) 2. Mount screens | 4... -
Page 7: Step 3 - Installing Pos Touch
Step 3 - Installing POS Touch 1. Release the two latches on the rear cover 2. Remove the cover 3. Screw the VESA bracket (4 screws 4x10 Allen) 4. Place the bracket on the base by sliding it up and down 5. -
Page 8: Step 4 - Connecting The Wires To Touch Pos
Step 4 - Connecting the wires to touch POS 1. Open the cable clamp 2. Connect the power cord 3. Connect the VGA cable 4. Connect the USB cable 5. Route the three wires through the clamp and close 6. Replace the cover and tighten the two screws 2. - Page 9 Place the POS Touchscreen with desired tilt angle and installation of screens is complete CashDroPOS 2. Mount screens | 7...
- Page 10 For more information about CashDroPOS you can check out the website: www.cashdro.com...
