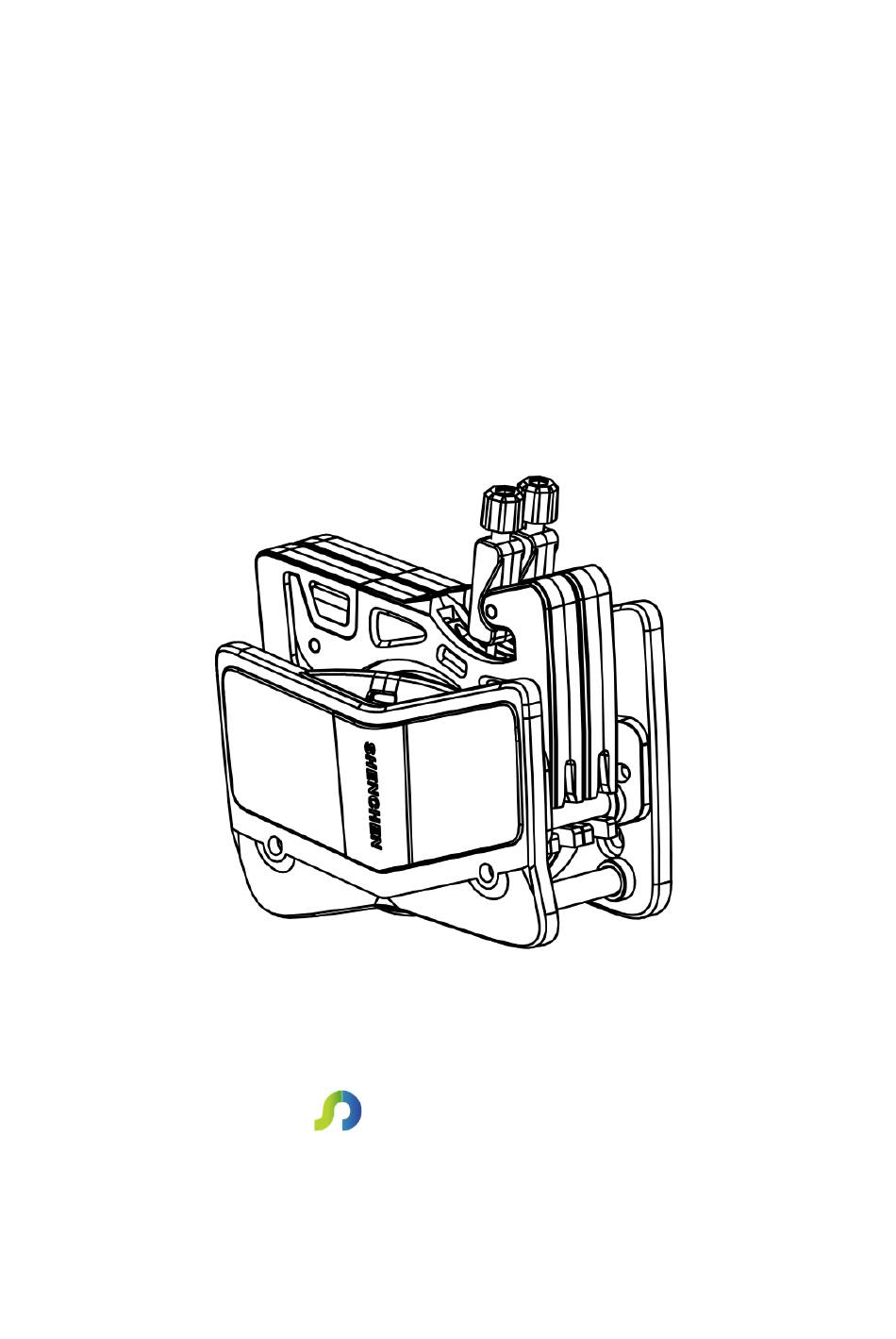

- Page 1 Shenchen Precision Pump Manual of AMC Series Pump Head Baoding Shenchen Precision Pump Co.,Ltd.
- Page 2 Note: Please read the manual carefully before operating the product. Warning: Tubing may have cracks due to wear, which results in overflow of fluid from the tubing. In that time human body and instruments may be harmed. So, users must check frequently and change the tubing in time.
-
Page 3: Table Of Contents
Catalogue 1. Product Introduction ................- 1 - 2. Pump Head Instruction ................. - 1 - 3. Dimension Drawing ................- 3 - 4. Pump Head Technical Specification ............. - 4 - 5. Function Instruction ................- 6 - 6. Troubleshooting ..................- 7 - 7. -
Page 4: Product Introduction
AMC Series 1. Product Introduction AMC series pump head has flexible positioning mechanism, where users can install and remove the cartridge easily. Flexible pressure tube design to extend the service life of the tube. Stepless adjustment of pressure tube gap to improve the transmission accuracy between channels. - Page 5 Shenchen Pump AMC Series hexagon socket flat head screws(M4) to fix the pump head. The mounting holes is on the back board. Fasten the screws with a hexagon spanner. 2.2 Tubing Installation 1. Pressing elastic locking 2. After the cartridge take off, 3.
-
Page 6: Dimension Drawing
Shenchen Pump AMC Series 3. Dimension Drawing Unit: (mm) Note: 1. Increase the thickness of one cartridge for each additional channel. 2. The number after AMC indicates the number of channels Model type AMC1 43.7 AMC2 53.9 AMC3 64.1 AMC4 74.3... -
Page 7: Pump Head Technical Specification
Shenchen Pump AMC Series 4. Pump Head Technical Specification 4.1 Pump Head Technical Specification Pump head AMC1 AMC2 AMC3 AMC4 AMC5 AMC6 AMC8 AMC10 AMC12 Channel Material of POM/PPS cartridge Material of 304 stainless steel roller Rollers 6 rollers, 8 rollers, 10 rollers... - Page 8 Shenchen Pump AMC Series 4.2 Flow Rate Chart 4.2.1 AMC1, AMC2, AMC3, AMC4, AMC5, AMC6, AMC8, AMC10, AMC12 (6 rollers) flow rate chart. 4.2.2 AMC1, AMC2, AMC3, AMC4, AMC5, AMC6, AMC8, AMC10, AMC12 (10 rollers) flow rate chart. - 5 -...
-
Page 9: Function Instruction
Shenchen Pump AMC Series 5. Function Instruction Adjustment function of pressure tubing gap Adjust the knob to adjust the pressure tubing gap, in this way you can change the pump head and tubing outlet pressure and flow rate. The pressure tubing gap is stepless adjustment, any position within the adjustment range can be used normally. -
Page 10: Troubleshooting
Shenchen Pump AMC Series pressure is reduced, the flow rate become higher. Note: The lower the knob, the greater the outlet pressure of the pump head tubing, the faster the tubing wears, and the shorter the tubing life. Therefore, it is not recommended to adjust the knob too low. -
Page 11: Warranty And After Service
Shenchen Pump AMC Series wearing of the tubing, reduce the useful life of tubing and lead the rollers to damage in earlier. Before the peristaltic pump start running, check the tubing carefully each time to see if it is damaged. - Page 12 MADE IN CHINA Baoding Shenchen Precision Pump Co., Ltd. Address:No.103,Building 2, Zhidian Industrial Park, FuXing East Road 999, Baoding, China. Tel: 0086- 312- 5958380 Fax: 0086-312- 6780636 Website: www.good-pump.com Email: info@good-pump.com...
