PDi 1000 Series Installation Instructions

THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND SHOULD CONFORM TO ALL
LOCAL CODES. READ AND FOLLOW THE SAFETY INSTRUCTIONS BEFORE ATTEMPTING THIS INSTALLATION.
NOTE to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40
of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of cable entry as practical.
WARNING: OXYGEN ENVIRONMENT DO
NOT use in an oxygen tent or oxygen
chamber. Such use may cause a fire hazard.
WARNING: To avoid the hazards of fire or
electric shock, DO NOT expose this TV to rain
or moisture.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed
on the apparatus. Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use
a damp cloth for cleaning. This unit REQUIRES periodic maintenance. Refer to the maintenance section for instructions.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do no block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8. Do not install near any heat source such as radiators,
heat registers, stove, or other apparatus (including
amplifiers) that produce heat.
9. Use only with the cart, stand, tripod, bracket or table
specified by the manufacturer, or sold
with the apparatus. When a cart is used,
use caution when moving the
cart/apparatus combination to avoid
injury from tip-over.
10. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
Contact PDi for complete list of approved TV model numbers for which this arm can be used.
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
MODEL NUMBER:

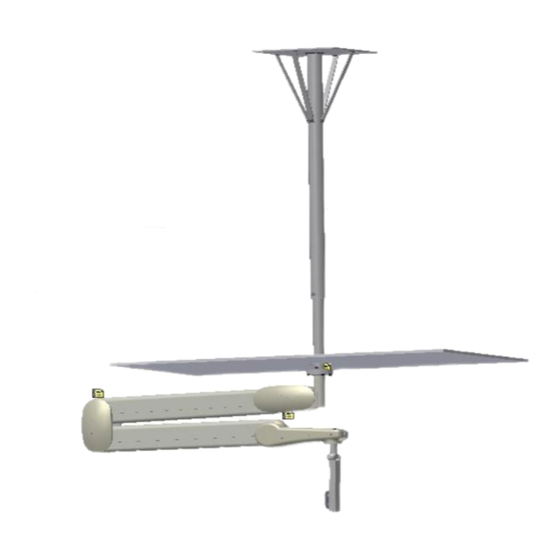

1000 Series CMT Arm
Installation Instruction for 1000 Series CMT Arm
with 48" Vertical Travel
with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide blade
or the third prongs are provided for your safety. If the
provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
11. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
12. Only use attachments/accessories specified by the
manufacturer.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
Document Number:
PD196-326R3
Page 1 of 5
DANGER: ARM RECOIL HAZARD The
safety brake pin must remain in the
SAFETY BRAKE PIN HOLE whenever the
television set is removed from the arm or
when the arm is removed from the wall
bracket to prevent the arm from springing
open.
