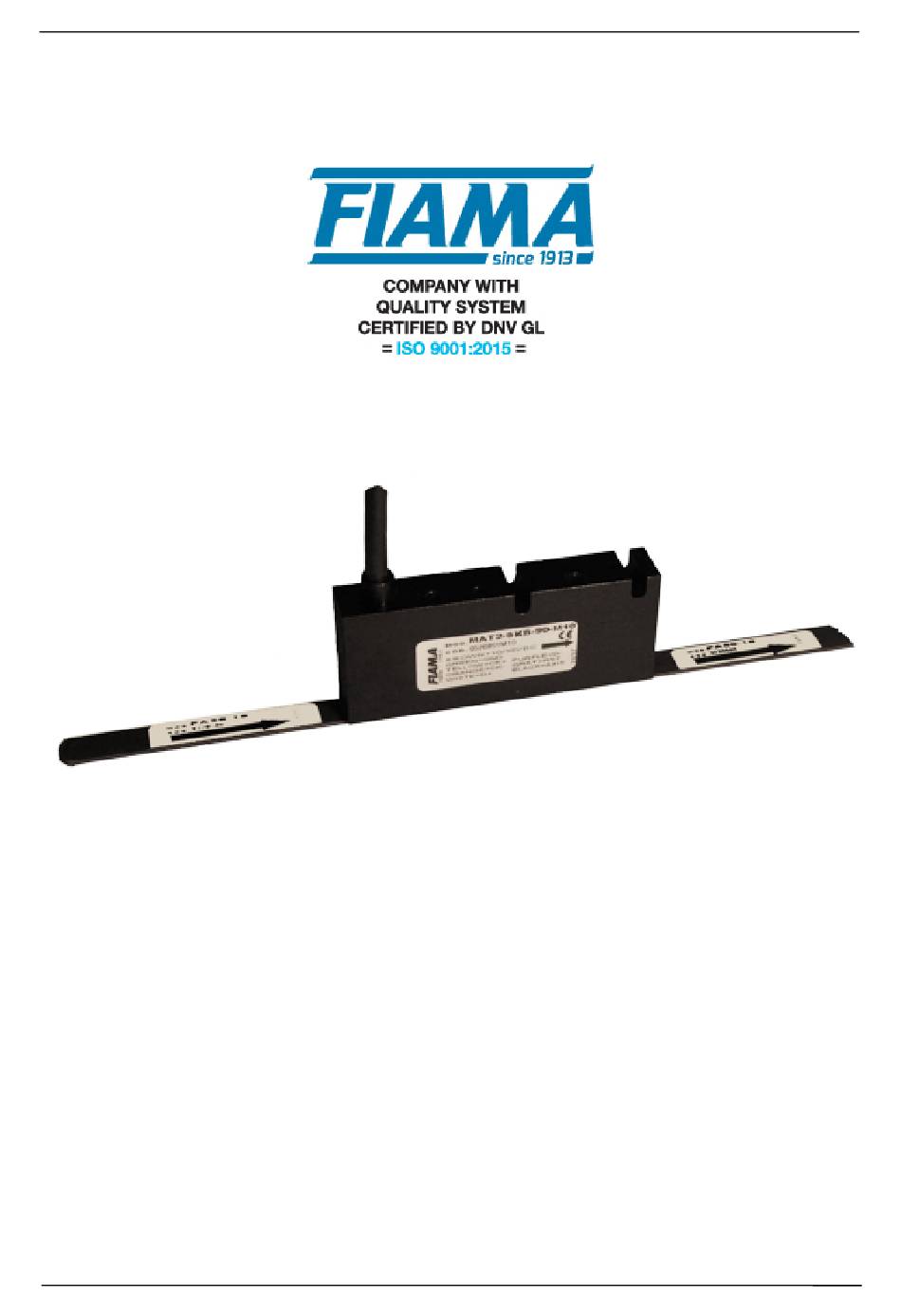

- Page 1 MAT2_ USER’S MANUAL AND MAINTENANCE ABSOLUTE TRANSDUCER MAT2_ ABSOLUTE MAGNETIC BAND PA50/10 Data: 15/01/18 file: MAT2_ing.doc Rev:2 pag 1/7...
- Page 2 This manual has been designed by the manufacturer to provide the necessary information regarding the instrument MAT2 to those who are authorized to carry out safely its installation, maintenance, dismantling and disposal. All the necessary information for the buyers and planners can be found in the Sales catalogue.
- Page 3 The instrument CANNOT function in a dangerous environment (inflammable or explosive). Description MAT2 is an absolute position transducer for linear measures without contact with a measure range up to 40 meters: it has to be combined with the absolute magnetic band PA50/10.
- Page 4 MAT2_ Transducer mounting For the optimal operating of the system the magnetic sensor, is necessary to observe the quotas mounting on the following draws, pay attention that the distance between the sensor and the magnetic band doesn’ t exceed 0,8 mm. Alignement tolerance magnetic band –...
- Page 5 MAT2_ Magnetic band The band consists of a magnetized plastic ferrite strip with alternate magnetic poles, carried by a ferromagnetic steel strip. Mechanical protection of the plastic ferrite strip is supplied by a non magnetic steel strip with tickness 0,2mm. The magnetic band is assembled by sticking it with a biadhesive tape.
- Page 6 MAT2_ Output signals The transducer must be connected to an instrument which has an SSI 24 bit interface with Gray or Binary coding (according to the chosen transducer version) with negative numbers represented in both cases in two’s complement. The following schematic shows the clock and data signals: The data is read from the MSB to the LSB.
- Page 7 MAT2_ MAT TRANSDUCER FEATURES Power supply 10-25 Vdc, max 200mA Rasolution 0,01 mm Measure accuracy ±0,1mm/m Max lenght 40,875 m Maximum speed 5 m/s Transducer-band distance 0,1 ÷ 0,8 mm Electric connection - Cable Ø6,6 PUR, standard lenght 2, 5, 10m Output SSI, RS422 Data output...
