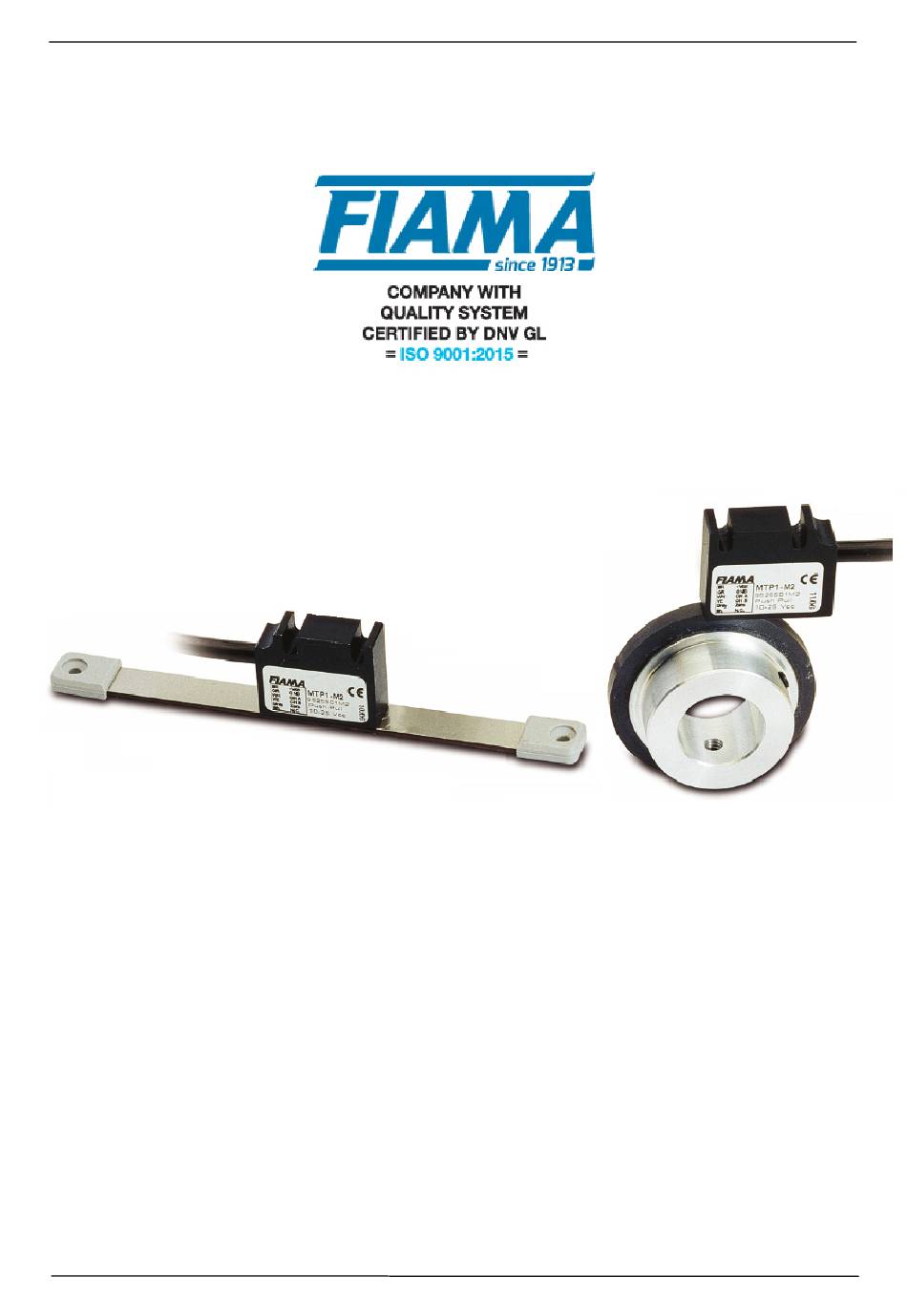

- Page 1 MTP_ USER’S MANUAL AND MAINTENANCE TRANSDUCER MTP_ MAGNETIC STRIP P50 MAGNETIC RING DM_ Data: 13/01/16 file: MTP_ing.doc pag 1/5...
- Page 2 Do not use hydrocarbon solvents (petrol, diluents, etc.): the using of these products could affect the proper functioning of the instrument. Reparations should be done only and exclusively at the FIAMA technical assistance centre . Calibrations and tests It is advisable to verify the transducer calibration periodically, once every working year.
- Page 3 The instrument CANNOT function in a dangerous environment (inflammable or explosive). Description The transducer MTP combined with the magnetic strip P50 is an incremental measure system without contact for linear distances. The measure transducer integrates in the same device, a sensor sensitive to a magnetic field, an electronic signals conversion circuit, and an output circuit.
- Page 4 MTP_ Magnetic strip The band consists of a magnetized plastic ferrite strip with alternate magnetic poles of 5 mm pitch, carried by a ferromagnetic steel strip. Mechanical protection of the plastic ferrite strip is supplied by a non magnetic steel strip with tickness 0,2mm. The magnetic band is assembled by sticking it with a biadhesive tape.
-
Page 5: Push-Pull Output
MTP_ Connection scheme PUSH-PULL OUTPUT LINE DRIVER TTL OUTPUT (type: MTP1) (type: MTP2, MTP3, MTP4) Brown +10÷25 VDC Brown +10÷25VDC / 5VDC Yellow signal A Yellow signal A White signal B Orange signal /A Gray signal Z White signal B Geen Purple signal /B... - Page 6 Pretection degree IP65 Housing alluminium Working temperature 0 ÷ 50°C Electromagnetic compatibility 2014/30/EU RoHS 2011/65/EU Magnetic strip characteristics P50 Length on request, max 25m Width 10 mm Thickness 1,7 mm Linear thermal expansion coefficient 11 ppm/K Working temperature -10 ÷ 65°C...
