ProLinx METRICY OxyPlus User Manual

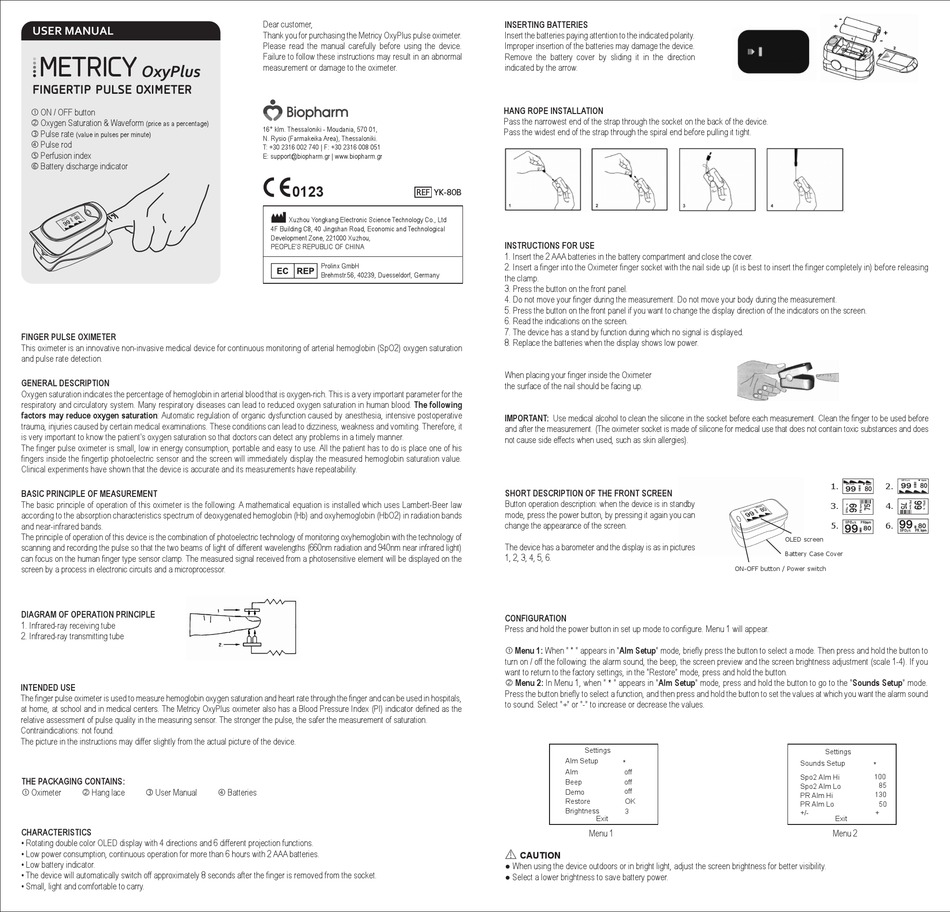

USER MANUAL
METRICY
OxyPlus

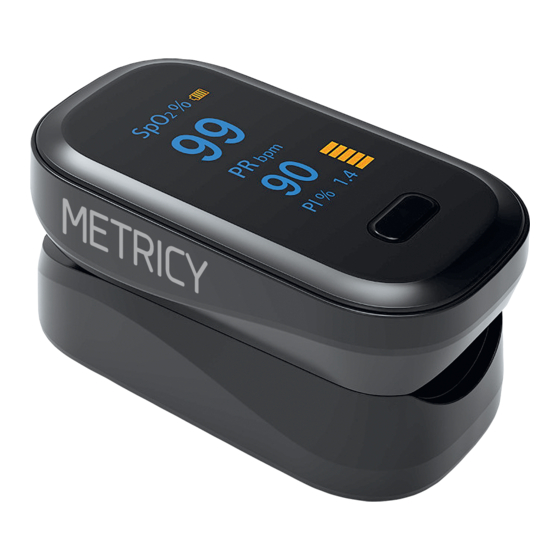

FINGERTIP PULSE OXIMETER
 ON / OFF button
 Oxygen Saturation & Waveform
(price as a percentage)
 Pulse rate
(value in pulses per minute)
 Pulse rod
 Perfusion index
 Battery discharge indicator
FINGER PULSE OXIMETER
This oximeter is an innovative non-invasive medical device for continuous monitoring of arterial hemoglobin (SpO2) oxygen saturation
and pulse rate detection.

GENERAL DESCRIPTION

Oxygen saturation indicates the percentage of hemoglobin in arterial blood that is oxygen-rich. This is a very important parameter for the
respiratory and circulatory system. Many respiratory diseases can lead to reduced oxygen saturation in human blood. The following
factors may reduce oxygen saturation: Automatic regulation of organic dysfunction caused by anesthesia, intensive postoperative
trauma, injuries caused by certain medical examinations. These conditions can lead to dizziness, weakness and vomiting. Therefore, it
is very important to know the patient's oxygen saturation so that doctors can detect any problems in a timely manner.
The finger pulse oximeter is small, low in energy consumption, portable and easy to use. All the patient has to do is place one of his
fingers inside the fingertip photoelectric sensor and the screen will immediately display the measured hemoglobin saturation value.
Clinical experiments have shown that the device is accurate and its measurements have repeatability.

BASIC PRINCIPLE OF MEASUREMENT

The basic principle of operation of this oximeter is the following: A mathematical equation is installed which uses Lambert-Beer law
according to the absorption characteristics spectrum of deoxygenated hemoglobin (Hb) and oxyhemoglobin (HbO2) in radiation bands
and near-infrared bands.
The principle of operation of this device is the combination of photoelectric technology of monitoring oxyhemoglobin with the technology of
scanning and recording the pulse so that the two beams of light of different wavelengths (660nm radiation and 940nm near infrared light)
can focus on the human finger type sensor clamp. The measured signal received from a photosensitive element will be displayed on the
screen by a process in electronic circuits and a microprocessor.
DIAGRAM OF OPERATION PRINCIPLE
1. Infrared-ray receiving tube
2. Infrared-ray transmitting tube

INTENDED USE

The finger pulse oximeter is used to measure hemoglobin oxygen saturation and heart rate through the finger and can be used in hospitals,
at home, at school and in medical centers. The Metricy OxyPlus oximeter also has a Blood Pressure Index (PI) indicator defined as the
relative assessment of pulse quality in the measuring sensor. The stronger the pulse, the safer the measurement of saturation.
Contraindications: not found.
The picture in the instructions may differ slightly from the actual picture of the device.

THE PACKAGING CONTAINS:

 Oximeter  Hang lace  User Manual

CHARACTERISTICS

• Rotating double color OLED display with 4 directions and 6 different projection functions.
• Low power consumption, continuous operation for more than 6 hours with 2 AAA batteries.
• Low battery indicator.
• The device will automatically switch off approximately 8 seconds after the finger is removed from the socket.
• Small, light and comfortable to carry.
Dear customer,
Thank you for purchasing the Metricy OxyPlus pulse oximeter.
Please read the manual carefully before using the device.
Failure to follow these instructions may result in an abnormal
measurement or damage to the oximeter.
16° klm. Thessaloniki - Moudania, 570 01,
Ν. Rysio (Farmakeika Area), Thessaloniki.
T: +30 2316 002 740 | F: +30 2316 008 051
E: support@biopharm.gr | www.biopharm.gr
0123
Xuzhou Yongkang Electronic Science Technology Co., Ltd
4F Building C8, 40 Jingshan Road, Economic and Technological
Development Zone, 221000 Xuzhou,
PEOPLE'S REPUBLIC OF CHINA
Prolinx GmbH
Brehmstr.56, 40239, Duesseldorf, Germany
 Batteries

INSERTING BATTERIES

Insert the batteries paying attention to the indicated polarity.
Improper insertion of the batteries may damage the device.
Remove the battery cover by sliding it in the direction
indicated by the arrow.

HANG ROPE INSTALLATION

Pass the narrowest end of the strap through the socket on the back of the device.
Pass the widest end of the strap through the spiral end before pulling it tight.
REF YK-80B

INSTRUCTIONS FOR USE

1. Insert the 2 AAA batteries in the battery compartment and close the cover.
2. Insert a finger into the Oximeter finger socket with the nail side up (it is best to insert the finger completely in) before releasing
the clamp.
3. Press the button on the front panel.
4. Do not move your finger during the measurement. Do not move your body during the measurement.
5. Press the button on the front panel if you want to change the display direction of the indicators on the screen.
6. Read the indications on the screen.
7. The device has a stand by function during which no signal is displayed.
8. Replace the batteries when the display shows low power.
When placing your finger inside the Oximeter
the surface of the nail should be facing up.
IMPORTANT: Use medical alcohol to clean the silicone in the socket before each measurement. Clean the finger to be used before
and after the measurement. (The oximeter socket is made of silicone for medical use that does not contain toxic substances and does
not cause side effects when used, such as skin allergies).

SHORT DESCRIPTION OF THE FRONT SCREEN

Button operation description: when the device is in standby
mode, press the power button, by pressing it again you can
change the appearance of the screen.
The device has a barometer and the display is as in pictures
1, 2, 3, 4, 5, 6.

CONFIGURATION

Press and hold the power button in set up mode to configure. Menu 1 will appear.
 Menu 1: When " * " appears in "Alm Setup" mode, briefly press the button to select a mode. Then press and hold the button to
turn on / off the following: the alarm sound, the beep, the screen preview and the screen brightness adjustment (scale 1-4). If you
want to return to the factory settings, in the "Restore" mode, press and hold the button.
 Menu 2: In Menu 1, when " * " appears in "Alm Setup" mode, press and hold the button to go to the "Sounds Setup" mode.
Press the button briefly to select a function, and then press and hold the button to set the values at which you want the alarm sound
to sound. Select "+" or "-" to increase or decrease the values.
Settings
Alm Setup
Alm
Beep
Demo
Restore
Brightness
Menu 1
CAUTION
● When using the device outdoors or in bright light, adjust the screen brightness for better visibility.
● Select a lower brightness to save battery power.
ON-OFF button / Power switch
*
off
off
off
OK
3
Exit
1. 2.
3. 4.
5. 6.
OLED screen
Battery Case Cover
Settings
Sounds Setup
*
100
Spo2 Alm Hi
85
Spo2 Alm Lo
130
PR Alm Hi
50
PR Alm Lo
+/- +
Exit
Menu 2
