Summary of Contents for Carson Phantom

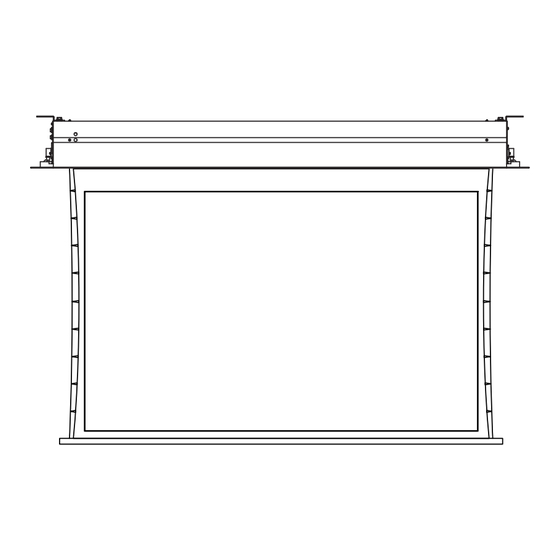

- Page 1 Phantom Instruction manual for Phantom Please read this manual before installing and using the projection screen. Retain this manual for future reference.
- Page 2 Screen (1pc) Remote control (1pc) Ceiling brackets (2 pcs) Screen brackets (2 pcs) Spirit bubble (1 pcs) Threaded mounting rod (4 pcs) Anchor bolt (8 pcs) Hexagon nuts (12 pcs) Adjustment tool (1 pc) Items listed here may change without prior notice. The company reserves the right to all of the listed items.
-
Page 3: Important Safety Tips
Important Safety Tips WARNING: Incorrect installation and improper use may lead to mechanical failure or personal injury. Considerations for installing / using this product 1. Handle with care to avoid damage. 2. Do not expose the product to rainwater or any other form of moisture. 3. -
Page 4: Hanging Installation
Hanging installation 1. Install the threaded mounting rods on top of the screen casing 2. Attach the rods to the ceiling brackets with the hex nuts provided 3. Drill holes for anchor bolts in the ceiling 4. Attach ceiling bracket to the ceiling where desired 5. -
Page 5: Concealed Installation
Concealed installation 1. Fit the screen brackets on the top of the screen casing. 2. Draw an outline on where the 4 Anchor Bolts would go on the ceiling. 3. Drill the holes for the Anchor Bolts through the outline drawn in step 2. Note: To avoid the screen falling o , con rm before installing that the ceiling is able to sustain the weight of... - Page 6 4. Detach the trim panels, then attach the screen to the ceiling with the anchor bolts 5. Re-attach the trim panels. The trim panel can be taken o while installing Anchor Bolts for ease of installation...
-
Page 7: Programming The Remote Control
Programming the remote control The remote control has been programmed before dispatch and is ready to use straight out of the box. If you do need to program the remote, the steps are outlined below: 1. Press the “Up” button for 3 seconds and plug in the receiver. -
Page 8: Troubleshooting
Troubleshooting Screen Nature of fault Probable cause Solution Screen does not go Low battery in remote Replace battery up or down, non responsive Power cable not Connect the power connected cable Motor in thermal Let motor cool for 15 protection mode after minutes, then retry extended period of use Screen not fully closing... - Page 9 enquiry@carsonscreens.com.au carsonscreens.com.au...
