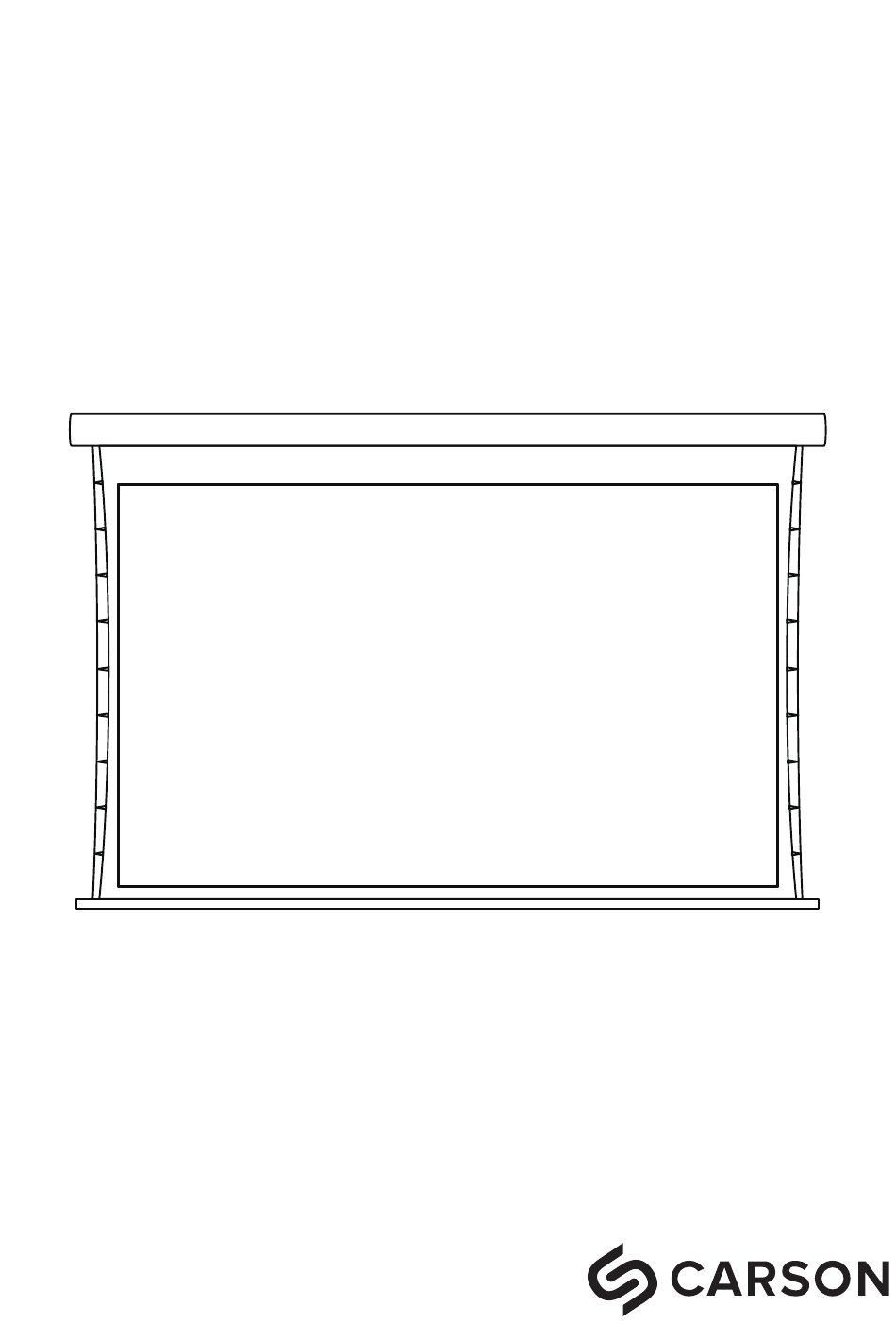

- Page 1 Preference Instruction manual for Preference One, Preference Acoustic, Preference Black Please read this manual before installing and using the projection screen. Retain this manual for future reference.
- Page 2 Screen (1pc) Remote control (1pc) Ceiling mount brackets (2 pcs) Removable wall mount brackets (2 pcs) (150” 4 pcs) Hanging Safety clasp (2 pcs) (150” 4 pcs) Hanging loop (2 pcs) (150” 4 pcs) Vertical hook (2 pcs) (only for size less than 135”) 5X40Tapping screw (4 pcs) (150”...
-
Page 3: Important Safety Tips
Important Safety Tips WARNING: Incorrect installation and improper use may lead to mechanical failure or personal injury. Considerations for installing / using this product 1. Handle with care to avoid damage. 2. Do not expose the product to rainwater or any other form of moisture. 3. -
Page 4: Wall Mount
Wall mount Wooden wall mounting method Concrete/ brick wall mounting method... - Page 5 Install the back buckle brackets horizontally on the wall with either concrete anchor or expansion glue and self-tapping screw – depending upon the nature of the surface.
- Page 6 Align the back of the screen with the hooks on the wall mounting brackets, then slowly lower the screen down onto the wall brackets.
- Page 7 Once the screen is mounted, tighten the safety screws as shown in then photos.
- Page 8 Once installation is complete, it should look like the photo below. To demount the screen, follow the steps in reverse.
-
Page 9: Ceiling Mount
Ceiling mount Wooden ceiling mounting method Concrete ceiling mounting method... - Page 10 Remove screen from the package. Unscrew the side caps from both sides, and slide the ceiling mount bracket on. Screw the side cap back on.
- Page 11 Install the ceiling mount brackets vertically with either concrete anchor or wooden supports depending on the nature of the surface being installed on.
- Page 12 Ceiling hanging mount Pass the ceiling mount brackets thorugh the hanging loop, then x it with screws.
- Page 13 A x vertical hooks on the ceiling, ensuring they are level...
- Page 14 Clip the safety buckle and hanging loop together, then hang the screen directly on the vertical hooks. 2 people must be doing the lifting of the screen. If it is a high ceiling, use a metal or steel chain to connect the vertical hooks to the safety buckle directly as shown in last gure.
- Page 15 Usage Electric screens can be operated in following two ways: Manual Control Down”↓screen opens; “Stop”→ Screen stops; “Up”↑ Screen closes. Down The IR Remote receiver cable needs to be connected for the remote to operate...
-
Page 16: Pairing The Remote Control
Pairing the remote control Press the “UP” button for 3 seconds and plug in the receiver. Once the receiver buzzer rings, STOP pressing the “UP” button. Pairing mode is now active. Press the “UP” button once and release When the buzzer rings 3 times in a row, the remote pairing function is complete Remote Control... -
Page 17: Troubleshooting
Troubleshooting Screen Nature of fault Probable cause Solution Screen does not go Low battery in remote Replace battery up or down, non responsive Power cable not Connect the power connected cable Motor in thermal Let motor cool for 15 protection mode after minutes, then retry extended period of use Screen not fully closing... - Page 18 enquiry@carsonscreens.com.au carsonscreens.com.au...
