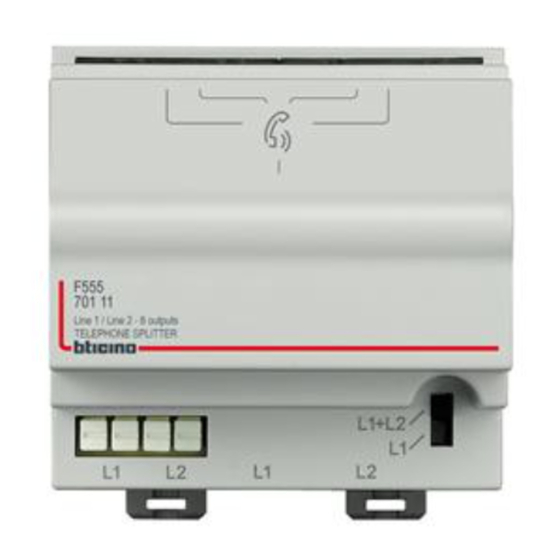

Telephone distribution frame
Description
Device with two input ports and eight RJ45 output ports for the distribution of one or 2
telephone lines in the following way:
- one telephone line can be shunted on all the output ports;
- two telephone lines can be shunted on two groups of output ports.
The selection of the mode of shunting is made using the changeover switch, as shown
in the following table:
IN
1
1
x
L1+L2
2
1
x
L1
In alternative to the connection using the RJ45 connector, the input line cables may also
be connected using traditional screw clamps.
Should it be necessary to distribute more than eight telephone lines, a second similar
device may be connected in cascade to the main distribution frame.
Related items
L4665L20 and L4665L40 patch cord
Technical data
Operating temperature:
5 – 40 °C
Dimensional data
4 DIN modules
OUT
2
3
4
5
6
7
x
x
x
x
x
x
x
x
x
x
x
x
MQ00325-b-EN

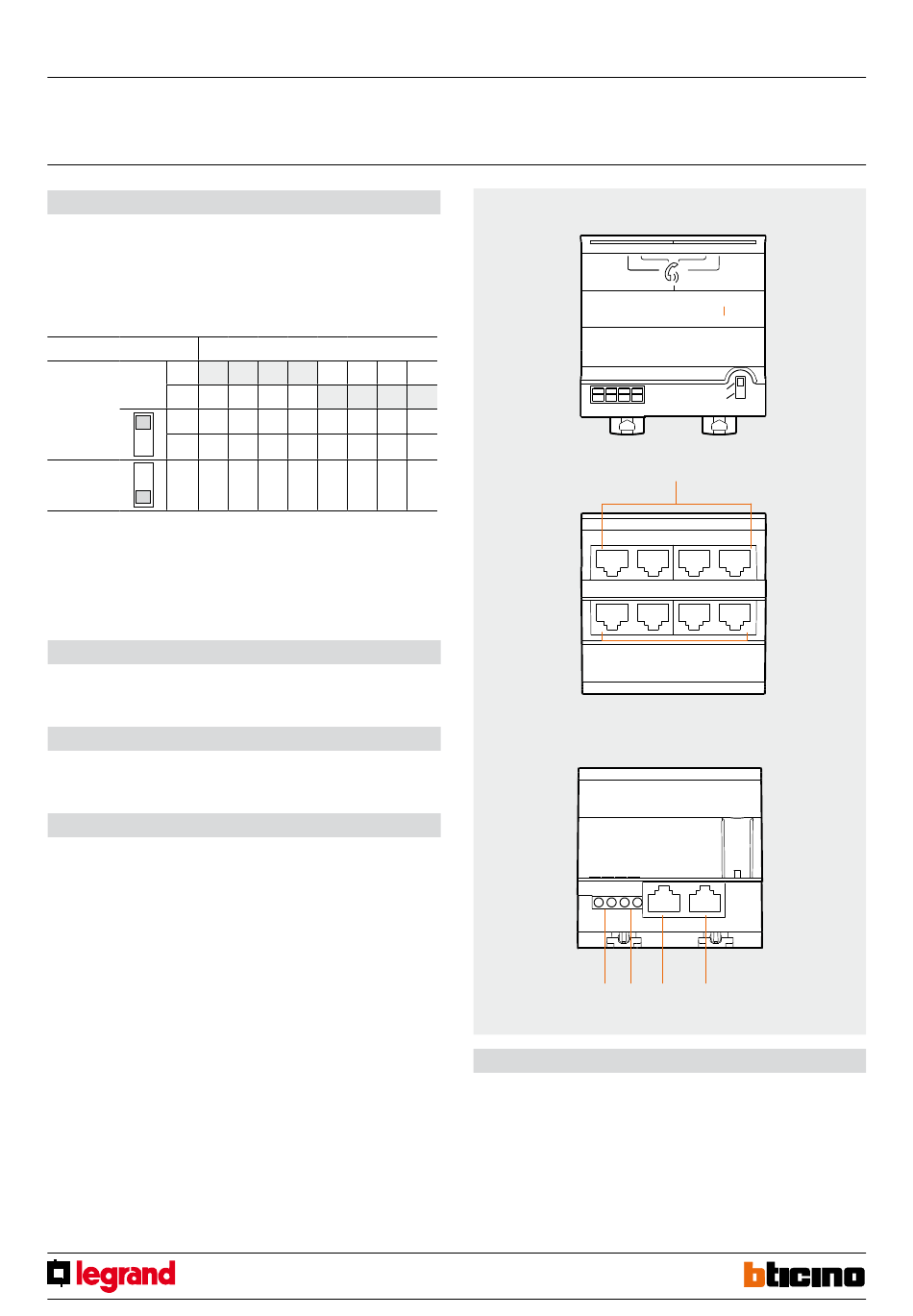

Front view
8
x
x
Top view
Bottom view
Legend
1. RJ45 ports, output telephone line
2. RJ45 port, line 2 input
3. RJ45 port, line 1 input
4. Screw clamp, line 2 input
5. Screw clamp, line 1 input
22/04/2014
L1+L2
L1
L1
L2
L1
L2
1
5
4
3
2
F555
1
