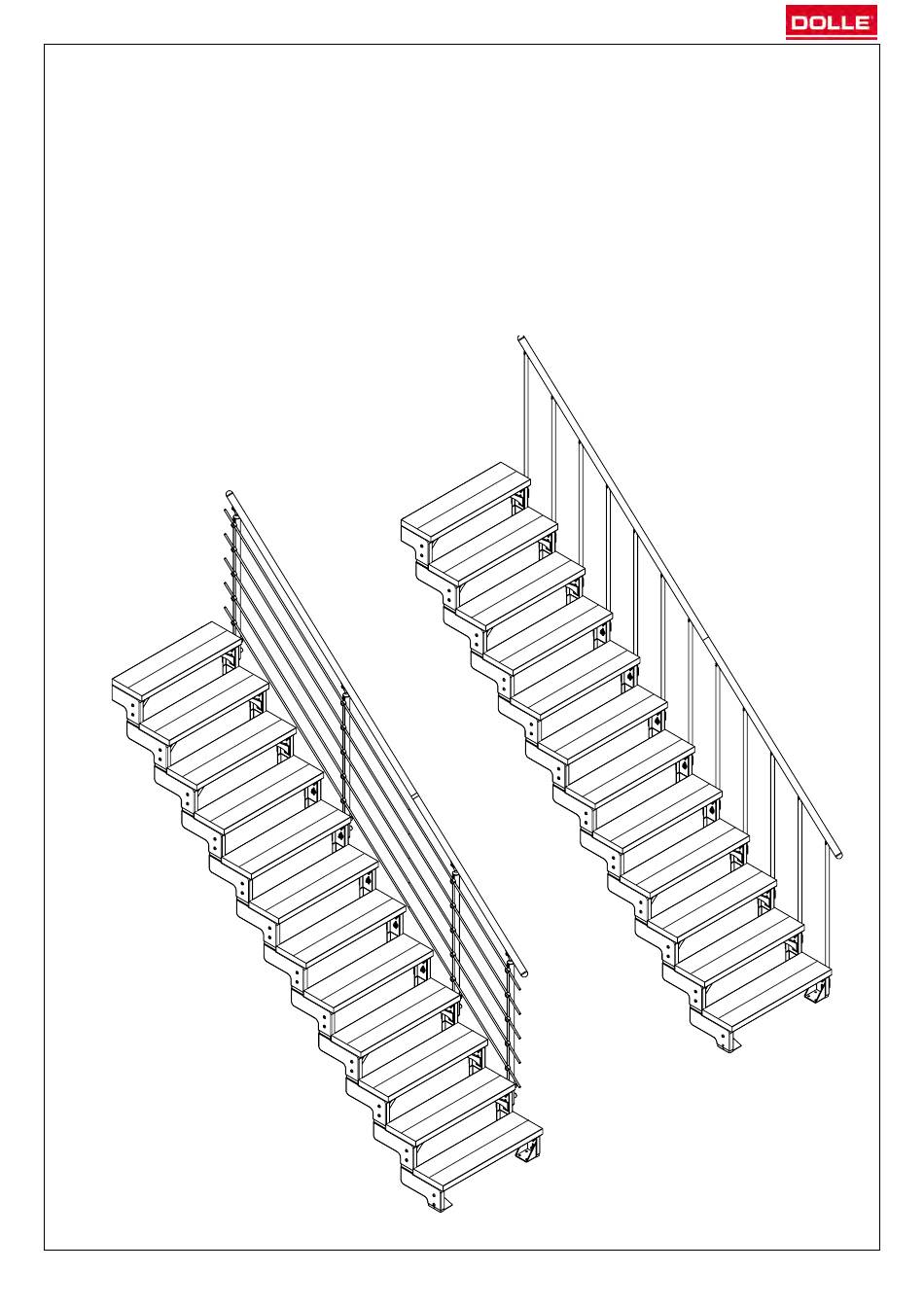

- Page 1 GARDENTOP GARDENTOP Stufen-Rahmen Step frame Montageanleitung Installation instruction Montageanleitung Installation instruction R1-99911 / 13-10-2017 / Rev. 04-11-2021...
- Page 2 Starter-Set 1068015 Start kit × 2 K2-41900 × 1 × 1 × 2 × 1 × 1 K1-41910 K1-41940 K1-41430 K1-41930 K1-41911 × 2 × 8 × 14 × 12 × 12 × 14 K3-03051 K3-08001 K3-06070 K3-02045 K3-04110 K3-04198 Ø10 Ø10 Ø12 x 60...
- Page 3 Stufen-Winkel 1068020 Stufen-Winkel Step support 1 step 1068020 Step support 1 step If more than × 2 × 2 If more than 6 steps: K3-02045 K3-03051 × 2 × 2 6 steps: K3-02045 K3-03051 M10 x 25 M10 x 25 9 + 10 9 + 10 Wenn mehr als...
- Page 4 Steiggeländer für 6 Stufen 1068031 Steiggeländer für 6 Stufen Steiggeländer für 6 Stufen 1068031 1068031 Standard banister for 6 steps Standard banister for 6 steps Standard banister for 6 steps × 1 × 6 × 6 × 2 × 6 ×...
- Page 5 Steiggeländer PROVA Ergänzungs-Set für 4 Stufen 1068041 PROVA banister extension for 4 steps × 1 × 1 × 2 × 1 K1-41090 K1-01221 K1-01160 K2-41090 1240mm 40mm × 1 K1-01107 1240mm 10mm × 5 K1-18060 × 5 × 2 × 5 K3-05050 ×...
- Page 6 Unterstützung 1068098 OPTION Support × 1 × 1 × 1 × 1 K3-03051 K3-02375 × 1 K3-04110 K1-41955 M10 x 75 K1-41956 Ø10 × 2 × 1 × 1 K3-05007 K3-06032 K3-08002 M5 x 5 Ø6 x 60 Ø8 x 40 ×...
- Page 7 10 ... 33...
- Page 8 min. 180 mm 90° max. 220 mm...
- Page 9 min. 180 mm min. 180 mm max. 220 mm max. 220 mm S – 40 mm...
- Page 10 min. 180 mm max 220 mm min. 180 mm max 220 mm 90°...
- Page 11 min. 180 mm max 220 mm S – 40 mm...
- Page 12 Stufe / Step 80 cm 803 mm 100 cm 1003 mm...
- Page 13 × 3 × 3 Concrete Beton 40 × 40 × 80 cm...
- Page 15 20...32 mm 0...7 mm 20...25 mm 26...32 mm...
- Page 16 ufen-Winkel ep support 1 step If more than × 2 × 2 6 steps: K3-02045 K3-03051 M10 x 25 9 + 10 Wenn mehr als Concrete / Beton 6 Stufen: 40 × 40 × 80 cm 9 + 10 × 1 ×...
- Page 18 M = L + 175 mm...
- Page 19 Must be secure in balustrade Am Geländerstab befestigen...
- Page 20 min. 180 mm min. 180 mm max 220 mm max 220 mm min. 180 mm min. 180 mm max 220 mm max 220 mm 90°...
- Page 21 min. 180 mm max 220 mm S – 40 mm...
- Page 22 Stufe / Step 80 cm 803 mm 100 cm 1003 mm...
- Page 23 × 3 × 3 Concrete Beton 40 × 40 × 80 cm...
- Page 25 20...32 mm 0...7 mm 20...25 mm 26...32 mm...
- Page 26 Stufen-Winkel Step support 1 step If more than × 2 × 2 6 steps: K3-02045 K3-03051 M10 x 25 9 + 10 Wenn mehr als 6 Stufen: 1061 9 + 10 × 1 × 2 Concrete / Beton K3-06269 hinzufügen K3-02386 40 ×...
- Page 28 Min. 900 mm ~ 50 mm...
- Page 30 We recommend using a support column from 8 treads and if W = 100 cm Ab 8 Stufen und W = 100 cm empfehlen wir eine Abstützung der Treppe Concrete Beton 40 x 40 x 80 cm...
