Dolle GARDENTOP Installation Instruction

Board tread
Hide thumbs Also See for GARDENTOP:

Advertisement

Quick Links

Download this manual
GARDENTOP
Einlege-Stufe
Board tread
Montageanleitung
Installation instruction
R1-99907 / 20-12-2016 / Rev. 04-11-2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the GARDENTOP and is the answer not in the manual?

Questions and answers

Related Manuals for Dolle GARDENTOP

Summary of Contents for Dolle GARDENTOP

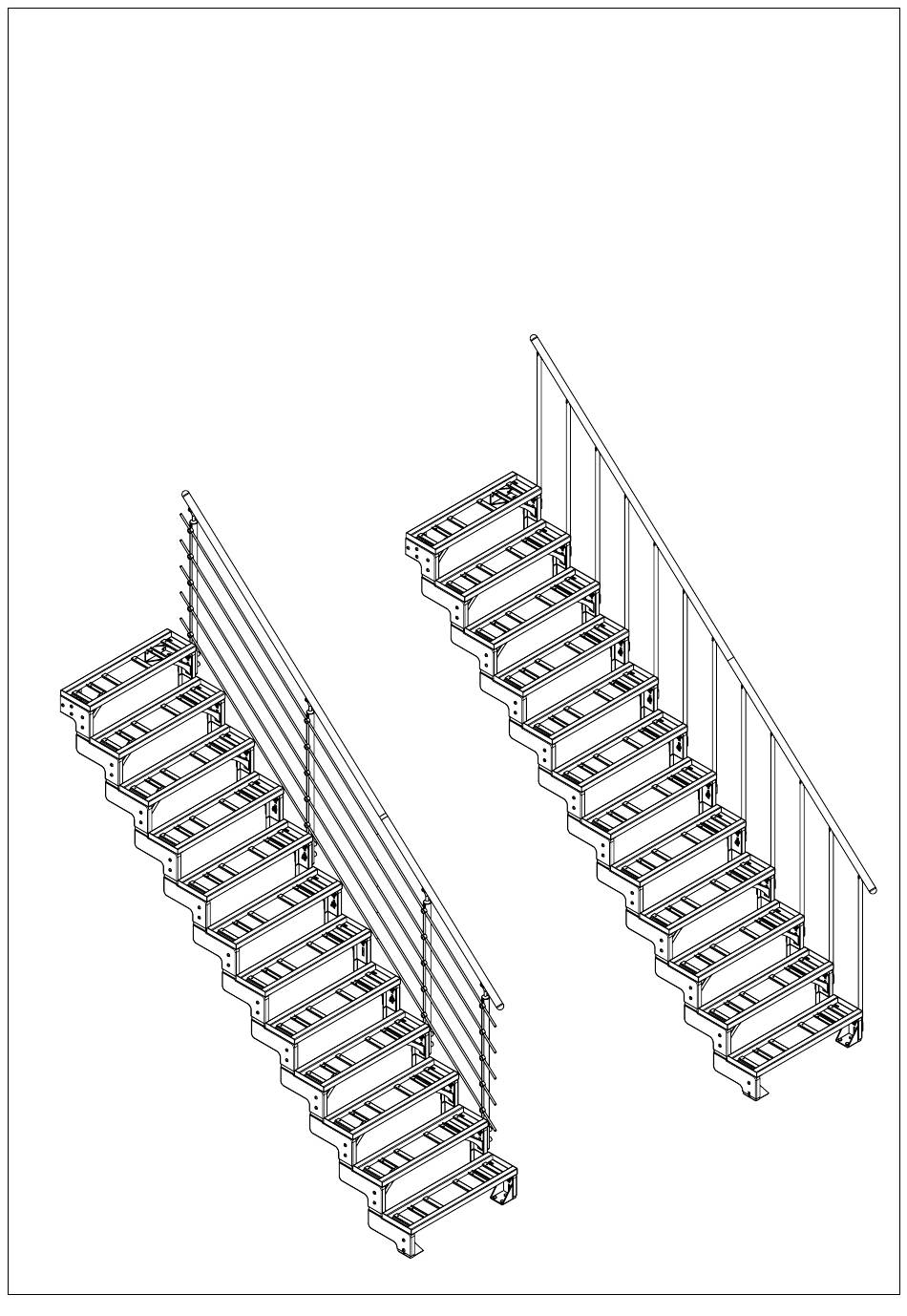

  • Page 1 GARDENTOP Einlege-Stufe Board tread Montageanleitung Installation instruction R1-99907 / 20-12-2016 / Rev. 04-11-2021...
  • Page 2 Starter-Set 1068015 Start kit × 2 K2-41900 × 1 × 2 × 1 × 1 × 1 K1-41910 K1-41940 K1-41430 K1-41930 K1-41911 × 2 × 8 × 14 × 12 × 12 × 14 K3-03051 K3-08001 K3-06070 K3-02045 K3-04110 K3-04198 Ø12 x 60 Ø10 x 60 M10×25...
  • Page 3 Stufen-Winkel 1068020 Step support 1 step If more than 6 steps: × 2 × 2 K3-02045 K3-03051 M10 x 25 9 + 10 Wenn mehr als 6 Stufen: × 1 × 1 9 + 10 K1-41060 K1-41061 hinzufügen × 1 K3-06269 Max.
  • Page 4 × 6 × 6 × 12 × 16 K3-01034 K3-03004 K3-05006 K3-05052 M4 x 30 M6 x 8 M5 x 16 Steiggeländer PROVA Starter-Set für 4 Stufen 1068040 PROVA banister start for 4 steps × 2 × 4 × 2 K2-04040 K1-41090 K1-01160...
  • Page 5 Steiggeländer PROVA Ergänzungs-Set für 4 Stufen 1068041 PROVA banister extension for 4 steps × 1 × 1 × 2 × 1 K1-41090 K1-01160 K1-01221 K2-41090 1240mm 40mm × 1 K1-01107 1240mm 10mm × 5 K1-18060 × 5 × 2 × 5 K3-05050 K3-02010 K3-08023...
  • Page 6 Unterstützung 1068098 OPTION Support × 1 × 1 × 1 × 1 K3-03051 K3-02375 × 1 K3-04110 K1-41955 M10 x 75 K1-41956 Ø10 × 1 × 2 × 1 K3-06032 K3-05007 K3-08002 Ø6 x 60 M5 x 5 Ø8 x 40 ×...
  • Page 7 11 ... 33...
  • Page 8 min. 180 mm 90° max. 220 mm...
  • Page 9 min. 180 mm min. 180 mm max. 220 mm max. 220 mm S – 40 mm...
  • Page 10 min. 180 mm max 220 mm min. 180 mm max 220 mm 90°...
  • Page 11 min. 180 mm max 220 mm S – 40 mm...
  • Page 12 Stufe / Step 80 cm 803 mm 100 cm 1003 mm...
  • Page 13 × 3 × 3 Concrete Beton 40 × 40 × 80 cm...
  • Page 15 If more than 6 steps: 10 + 9 Wenn mehr als 6 Stufen: 10 + 9 hinzufügen Concrete / Beton 40 × 40 × 80 cm...
  • Page 18 M = L + 175 mm...
  • Page 19 Must be secure in Must be secure in balustrade balustrade Must be secure in balustrade Am Geländerstab Am Geländerstab befestigen befestigen Am Geländerstab befestigen...
  • Page 20 min. 180 mm min. 180 mm max 220 mm max 220 mm min. 180 mm min. 180 mm max 220 mm max 220 mm 90°...
  • Page 21 min. 180 mm max 220 mm S – 40 mm...
  • Page 22 Stufe / Step 80 cm 803 mm 100 cm 1003 mm...
  • Page 23 × 3 × 3 Concrete Beton 40 × 40 × 80 cm...
  • Page 25 If more than 6 steps: 10 + 9 Wenn mehr als 6 Stufen: 10 + 9 hinzufügen Concrete / Beton 40 × 40 × 80 cm...
  • Page 28 Min. 900 mm ~ 50 mm...
  • Page 30 792mm 25mm 146mm We recommend using a support column from 8 treads and if W = 100 cm Ab 8 Stufen und W = 100 cm empfehlen wir eine Abstützung der Treppe Concrete Beton 40 x 40 x 80 cm...
