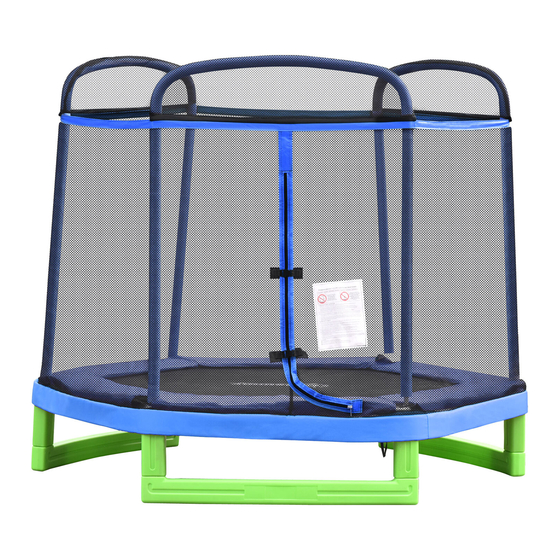

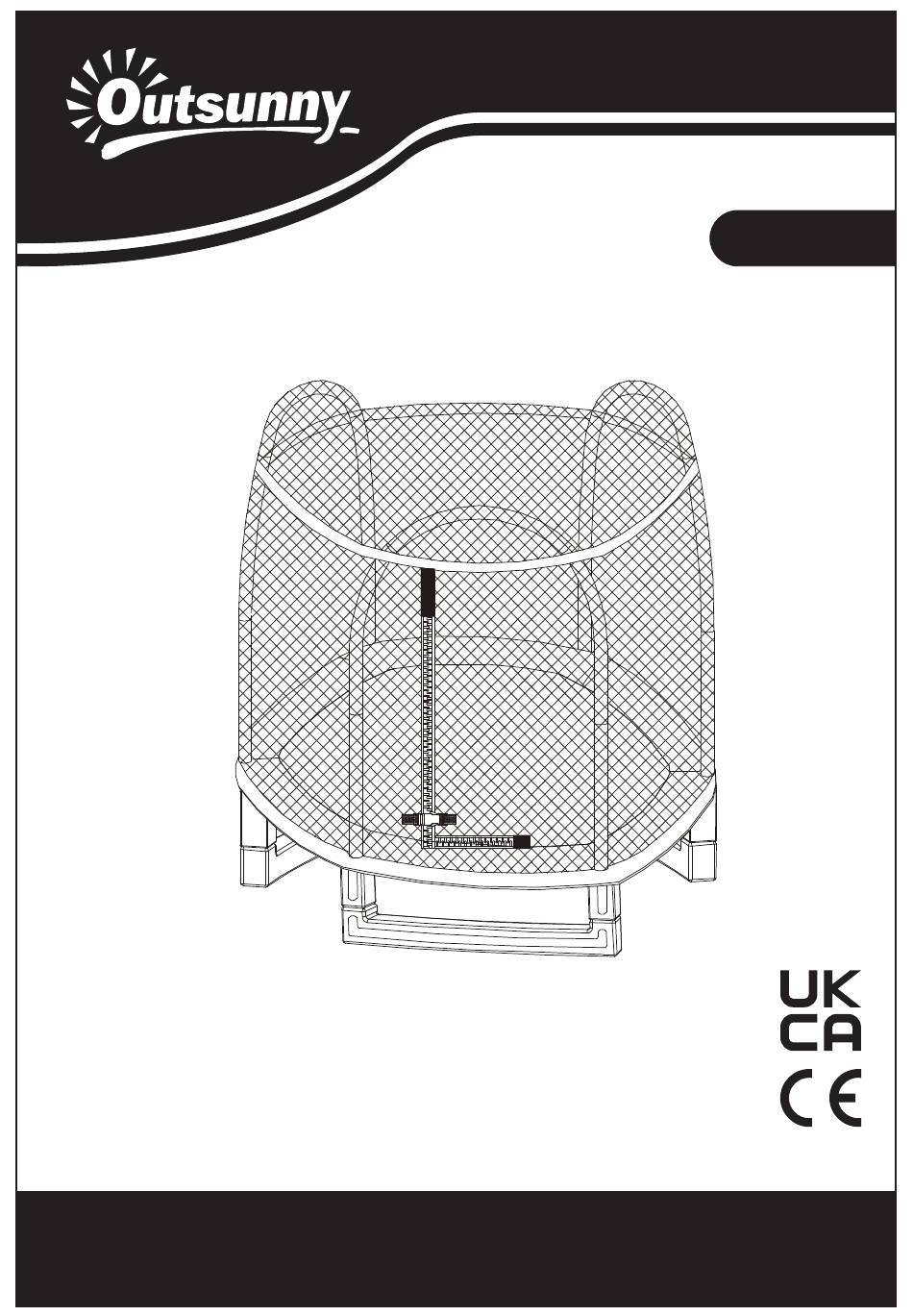

  • Page 1 INfka021V01_UK 342-031 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTION...
  • Page 2 DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck! No more than one person on the trampoline at a time. Multiple users increase the risk of injury. Use trampoline only with mature, knowledgeable supervision. These instructions are important to minimise chances of injury.
  • Page 3 NO SOMERSAULTS OR FLIPS – No more than ONE user at a time PARALYSIS OR DEATH can result if you (maximum weight - 176 lbs/80kg) . land on your head or neck! Remove all hard Do not use if in a Do not allow or sharp objects Do not use...
  • Page 4 BEFORE STARTING… Use trampoline only with mature, knowledgeable adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. Do not allow more than one person on the trampoline. Use by more than one person at the same time increases the chance of injury.

  • Page 5: Important Warnings

    IMPORTANT WARNINGS Use trampoline only with mature, knowledgeable adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. Do not allow more than one person on the trampoline. Use by more than one person at the same time increases the chance of injury.
  • Page 6 IMPORTANT WARNINGS Use trampoline only with mature, knowledgeable adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. Do not allow more than one person on the trampoline. Use by more than one person at the same time increases the chance of injury.
  • Page 7 IMPORTANT WARNINGS Use trampoline only with mature, knowledgeable adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. Do not allow more than one person on the trampoline. Use by more than one person at the same time increases the chance of injury.
  • Page 8 IMPORTANT WARNINGS Use trampoline only with mature, knowledgeable adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. Do not allow more than one person on the trampoline. Use by more than one person at the same time increases the chance of injury.

  • Page 9: Trampoline And Enclosure Parts List

    TRAMPOLINE AND ENCLOSURE PARTS LIST Trampoline and Enclosure Parts List Trampoline Part Picture Description Quantity Number Trampoline Mat, stitched with Triangle-Rings and Frame Pad Top Rail Corner Top Rail with Socket Vertical Leg Extension Plastic Vertical Leg Extension Plastic Horizontal Leg Base Plastic Flat Plate Galvanized Spring Spring Loading Tool...

  • Page 10: Hardware Parts List

    TRAMPOLINE HARDWARE PARTS LIST Hardware Parts List Part Picture Description Quantity Number Bolt(M6x42mm) Arc Washer Spring Lock Washer Self-Locking Screw(ST4x12mm) Cap Nut(M6) Allen Wrench...

  • Page 11: Assembly And Installation Instructions

    Assembly and Installation Instructions BEFORE YOU BEGIN: Review all steps before assembly and read all precautions before using the trampoline. At least two adults are required to assemble this trampoline. Protective gloves should be used during assembly to avoid pinching by the springs. Goggles should be worn to avoid injuries to the eyes. Step 1 –...

  • Page 12: Step 2 - Frame Assembly

    Step 2 – Frame Assembly Lay out all frame parts on dry flat surface as shown in FIGURE 2. The holes on the steel tubing parts are for installing springs and must all face up. Make sure that you have plenty of space and a clean dry area suitable for the assembly of this trampoline. It should be assembled where the trampoline is to be used.
  • Page 13 STEP 3 Attach Corner Top Rails with Sockets (#3) to both ends of Top Rail (#2). Insert this entire piece into Vertical Leg Extension (#5). Repeat this process for all three Leg Supports. FIGURE 3...
  • Page 14 STEP 4 At this point, two people will be needed to assemble the trampoline. Insert Curve Frame Tube with Foam (#10) into Corner Top Rails with Sockets (#3). Align the holes and secure them together using Screw (#A), 2 Arc Washer (#B), Spring Lock Washer (#C), and Cap Nut (#E). Repeat this process for all Leg Supports.
  • Page 15 STEP 5 Insert Top Rail (#2) in between Top Rail with Sockets (#3) to form the trampoline frame as shown below. FIGURE 5...

  • Page 16: Trampoline Mat Assembly

    Trampoline Mat Assembly STEP 6 Remove the foam from Curve Frame Tube with Foam (#10) and guide the Trampoline Mat stitched with Triangle-Rings and Frame Pad (#1) through the tubes as shown in Figure 6. Make sure the Frame Pad faces up and fully covers the trampoline frame.
  • Page 17 When attaching the springs, do not place your hands, arms, legs or any other body part close to the connector points (i.e. joints connecting the steel tubes). The connector points can become pinch points as the trampoline springs tighten up. Wear heavy duty working gloves to protect your hands from pinching by the springs and protective goggles to avoid injuries to the eyes.
  • Page 18 Step 8 – Spring Assembly Attach two more springs in the midpoint between the corner rails. For even distribution of tension and ease of assembly, the springs must be placed on opposite sides of the mat in an alternating manner, i.e. 3,4 then 21,22.
  • Page 19 Step 9 – Spring Assembly Continue to attach all remaining springs in the same manner as before. Rail FIGURE 9...

  • Page 20: Frame Pad Assembly

    Frame Pad Assembly Never use the trampoline without the frame pad. The frame pad reduces the risk of getting injured by hitting the metal frame or springs. Inspect the frame pad before each and every use to ensure all exposed metal parts are fully covered! Step 10 Straighten out the frame pad (stitched to the Trampoline Mat) so the springs and steel frame are fully covered.
  • Page 21 Step 11 Attach Curve Frame Tube with Foam (# 10) to Top Frame Tube with Foam (# 11) to form an “ARCH” as shown in FIGURE 11. Secure using the Self-Locking Screw (# D). Repeat this step for all three sets of ARCH. FIGURE 11...
  • Page 22 Step 12 Pull down the enclosure netting so it evenly wraps around the outside of the ARCH and completely covers the trampoline. FIGURE 12...
  • Page 23 Step 13 Tie all elastic straps on Enclosure Netting (# 14) to the frame as shown. FIGURE 13...
  • Page 24 Step 14 Close the zipper and buckle at the entrance of the enclosure netting to secure the entrance. The zipper and buckle should be closed during use to avoid users falling out of the trampoline, as well as during periods of non-use to restrict access by unauthorised users. FIGURE 14...

  • Page 25: Learning The Fundamental Trampoline Skills

    LEARNING THE FUNDAMENTAL TRAMPOLINE SKILLS BASIC TRAMPOLINE BOUNCES THE BASIC BOUNCE 1. Start from the standing position, with your feet having shoulder width apart and with head up and eyes on mat 2. Swing arms forward and up in a circular motion 3.
