B O C A R AT O N
IN-WALL SHOWER DIVERTER
DESVIADOR DE DUCHA DE PARED BOCA RATÓN
SKU: 948898
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing �xtures. Signature
Hardware accepts no liability for any damage to the
plumbing, shower, wall, or for personal injury during
installation.
Observe all local plumbing and building codes.
Unpack and inspect the product for shipping
damage. If any damage is found, contact our
Customer Relations team at 1-800-221-3379.
ANTES DE COMENZAR
Le recomendamos que consulte a un profesional si no
sabe cómo instalar accesorios de plomería. Signature
Hardware no asume ninguna responsabilidad con
respecto a los daños causados a la plomería, la pared, ni
por daños personales que ocurran durante la
instalación.
Cumpla con todas las normas locales de plomería y
construcción.
Retire el producto del empaque y verifique si no sufrió
daños durante el envío. Si encuentra algún daño,
comuníquese con nuestro equipo de Servicio al cliente
al 1-800-221-3379.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
CÓMO COMENZAR
Asegúrese de haber reunido todos los materiales
necesarios para la instalación.

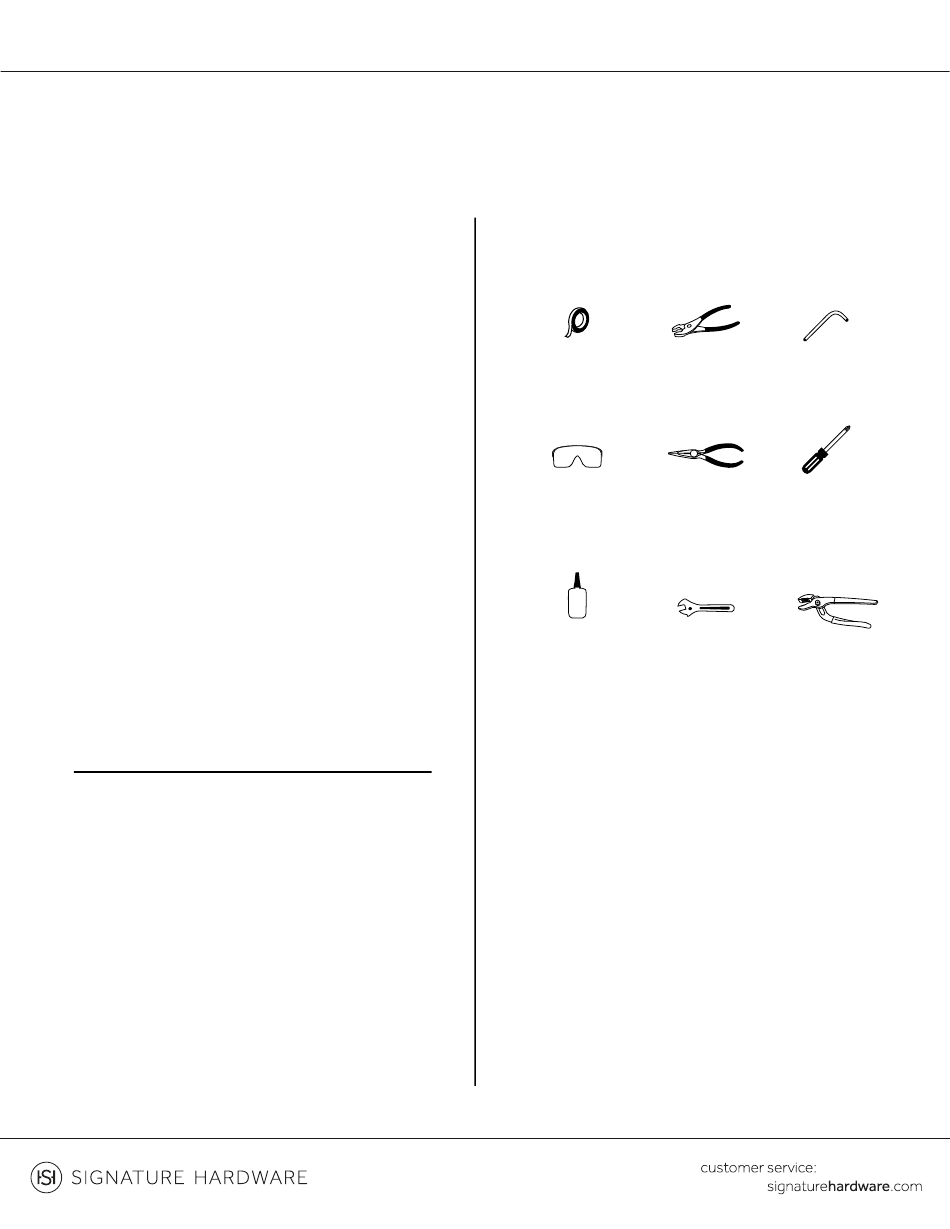

TOOLS AND MATERIALS:
HERRAMIENTAS Y MATERIALES:
Plumbers Tape
Cinta Selladora
Para Rosca
Safety Glasses
Gafas de seguridad
Thread Sealant
Adjustable Wrench
Sellador de rosca
1
Pliers
Hex Wrench
Llave hexagonal
Pinzas
de punta
Long-nose Pliers
Phillips
Screwdriver
Pinzas de punta
Destornillador
Phillips
Groove
Joint Plier
Llave Ajustable
Pinzas
ajustable
REVISED 01/29/2021
CODES: SHBR9005, SH6103
1.800.221.3379
