Summary of Contents for Top CMS505

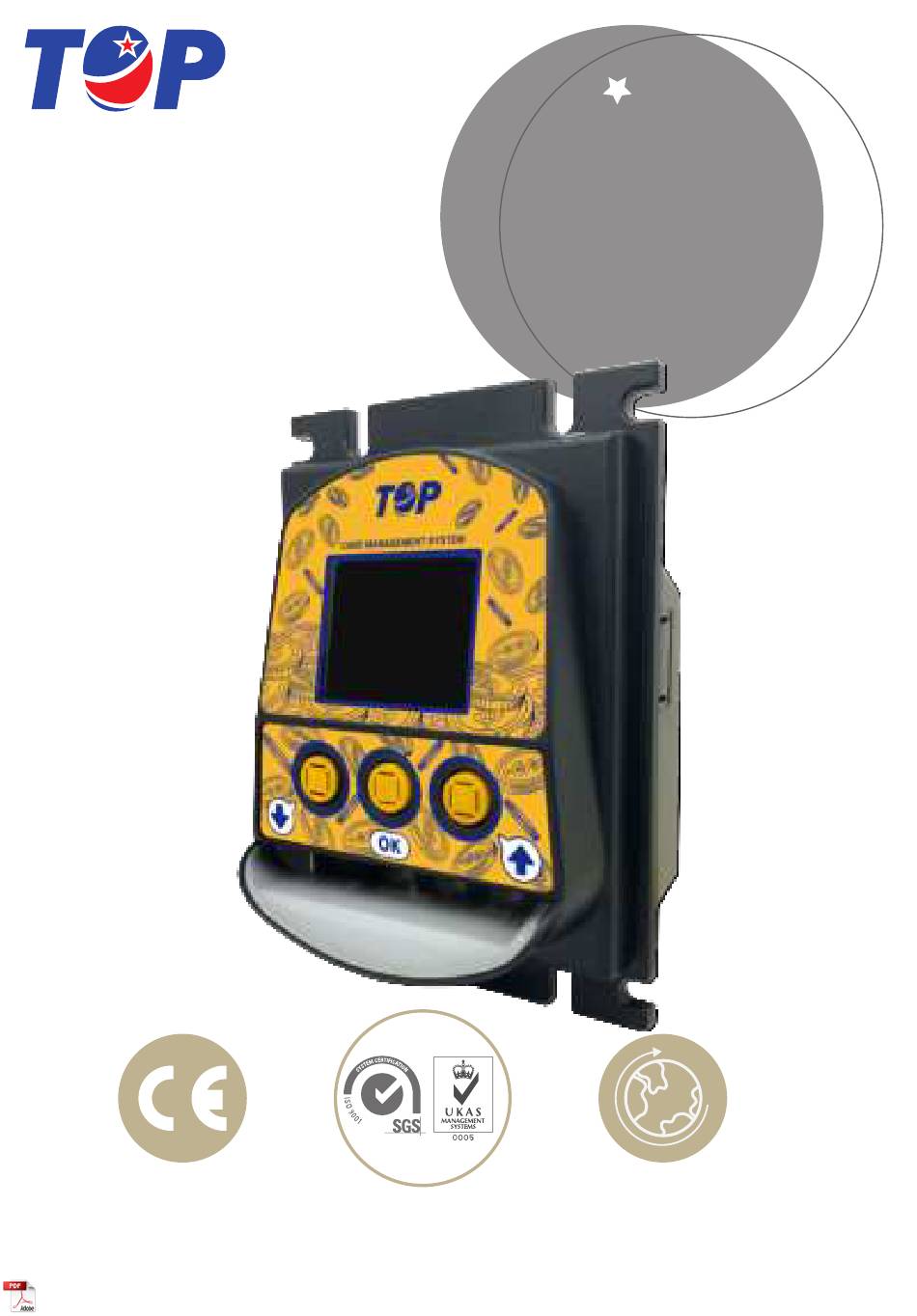

- Page 1 CMS 5 05 Card Reader User Guide T h an k yo u f o r c h o os ing TO P VME .
-
Page 3: Table Of Contents
C o n t e n t 1. Product Introduction ....................1 1-1. Overview ..........................1 1-2. Features ..........................1 2. Product Specifications ..................... 2 2-1. General Specifications ....................2 2-2. Electronic Specifications ....................2 2-3. Machine Specifications ....................2 3. -
Page 4: Product Introduction
1-1. Overview The card management system can save labor costs, and reduce auditing stress. All top-ups and cash settlements are completed at the cash register to avoid unnecessary cash handling. This solves the problem of miscalculation and difference between the cash and computer accounts of other branches, and decrease the time cost of checking and reconciling. -
Page 5: Product Specifications
Card Reader 2. Product Specifications 2-1. General Specifications Communication RS232/PULSE Interface Contact card(ISO 7816)、non-contact card Card type (Mifare1 S70) Installation site Indoors 2-2. Electronic Specifications Input power +12V DC Standby:1.5~1.6W Power Consumption Working:2.3W Max.:2.5W Ambient: 0~60 Temperature Range (° C) Storage:-10~80 Humidity:20~70%RH(no condensation) 2-3. -
Page 6: Product Dimension
CMS505 4. Product Dimension 84.1 3.311 51 2.008 36.5 1.437 4 .157 75.1 2.957 51 2.008 84.1 3.311 92.2 3.63... -
Page 7: Installation Instructions
1. Dig holes according to the recommended shape and size. 105.6 4.157 94 3.701 110 4.331 94 3.701 105.6 4.157 2. Put the CMS505 into the iron frame according to the direction shown in the figure, and lock the nut. Nuts Metal Frame CMS505... -
Page 8: Iron Plate Description
Nuts CMS505 5-2. iron plate description board 1. Put the CMS505 into the stud on the iron plate according to the direction shown in the figure, and lock the nut to complete. Nuts CMS505 Iron Plate... -
Page 9: Application
Card Reader 6. Application... -
Page 10: Wiring
CMS505 7. Wiring Connector Interface Voltage Wire Pag. WEL-R7U02 Power +12V DC Power Cable WEL- Power Power +12V DC CU-R961-1 R7U02 Extension WEL-R7U06 RS232/ Data Transfer (Purchase) UART 2WIR-CP2102N-00 USB/UART Data Transfer (Purchase) 2WIR-CMS3000C-00 PULSE/ Data Transfer (Purchase) HOPPER CMS100H... - Page 11 Card Reader WEL-R7U02 PIN NO COLOR PIN DEFINE PIN NO COLOR PIN DEFINE +12V DC PIN1 YELLOW PIN1 PIN2 GREEN PIN2 ORANGE +12V DC PIN5 PIN3 YELLOW PIN7 BLUE PIN4 GREEN PIN8 PURPLE PIN5 BLUE PIN9 ORANGE PIN6 PURPLE...
- Page 12 CMS505 CU-R961-1 PIN NO COLOR PIN DEFINE PIN1 YELLOW PIN2 GREEN PIN5 +12V DC PIN7 BLUE PIN8 PURPLE PIN9 ORANGE...
- Page 13 Card Reader WEL-R7U06 PIN NO COLOR PIN DEFINE PIN NO PIN DEFINE PIN1 BLUE PIN2 PIN6 WHITE PIN3 PIN7 BLACK PIN5 PIN8 PURPLE...
- Page 14 CMS505 2WIR-CP2102N--00 PIN NO PIN DEFINE PIN NO COLOR PIN DEFINE PIN1 PIN1 BLUE PIN2 USB DP PIN6 WHITE PIN3 USB DM PIN7 BLACK PIN4 USB +5V PIN8 PURPLE...
- Page 15 Card Reader 2WIR-CMS3000C-00 PIN NO COLOR PIN DEFINE PIN NO COLOR PIN DEFINE PIN1 BLACK PIN7 BLUE PAY- PIN2 BROWN NOTE PIN8 WHITE TICKET_IN PIN3 GREEN PAY+ PIN9 PURPLE HOP_OUT PIN4 ORANGE TICKET_OUT PIN10 GRAY METER_OUT PIN5 YELLOW HOP_N PIN11 PINK INHIBIT_IN PIN6...
- Page 16 CMS505 2WIR-CMS100G1-0B PIN NO COLOR PIN DEFINE PIN1 BLACK PIN2 +12 DC...
- Page 17 2WIR-CMS100H1-0A PIN NO COLOR PIN DEFINE PIN NO COLOR PIN DEFINE PIN1 YELLOW PIN1 YELLOW PIN7 PIN7 BLACK PIN8 BLACK PIN8...
-
Page 18: Function Description
CMS505 8. Function Description Setting Button ↓ ↑ 8-1. Setting and Display 1. ok Button : Open points, Set value confirmation, service request(press and hold 3 second ) 2. ↓ Button: Scroll down/sub 3. ↑ Button: Scroll up/add 4. Setting Button : Setting mode 8-2. -
Page 19: Game
Card Reader 8-2-1. GAME 1. Mode : Hopper or Pulse mode 2. Play : Key in 3. Level : Signal level 8-2-2. Signal Signal time width setting, units in ms 8-2-3. System 1. Card key : Card Key Setting 2. Version : Version Check 3. -
Page 20: Function Modes
CMS505 8-3. Function Modes Dip Switch Mode Function System: No Connection Mode: RS232 (Without converter Mode 1 board) Card Reader:non-contact card System: Connected Mode: RS232 (Without converter board) Mode 2 Card Reader:non-contact card、 contact card System: No Connection Mode: Hopper or Pulse (With... -
Page 21: Troubleshooting
Card Reader 9. Troubleshooting Message Narrative Preventive action Card used over 100K Card limit Replace card times Download the Version Err Firm. Version error correct firmware Not connected to the Game no link Check the Game game Mode error Mode error Adjust Dip Switch Check wireless No link... - Page 22 CMS505 FCC Warning description Part 15.19 statement This device and its accessories comply with Part15 of FCC rules. Operation is subject to the following two conditions: (1) This device and its accessories may not cause harmful interference. (2) This device and its accessories must accept any interference received, including interference that may cause undesired operation.
- Page 23 Taiwan Top Vending Machine Electronics Co., Ltd. NO.11, Anzhong St., Luzhu Dist., Taoyuan City338, Taiwan, (R.O.C.) Phone : +886-3-3115969．Fax : +886-3-3115970 E-mail : sales@topvme.com.tw Website : www.topvme.com...
- Page 24 Top Vending Machine Electronics Co., Ltd. w w w .topv me. co m...
