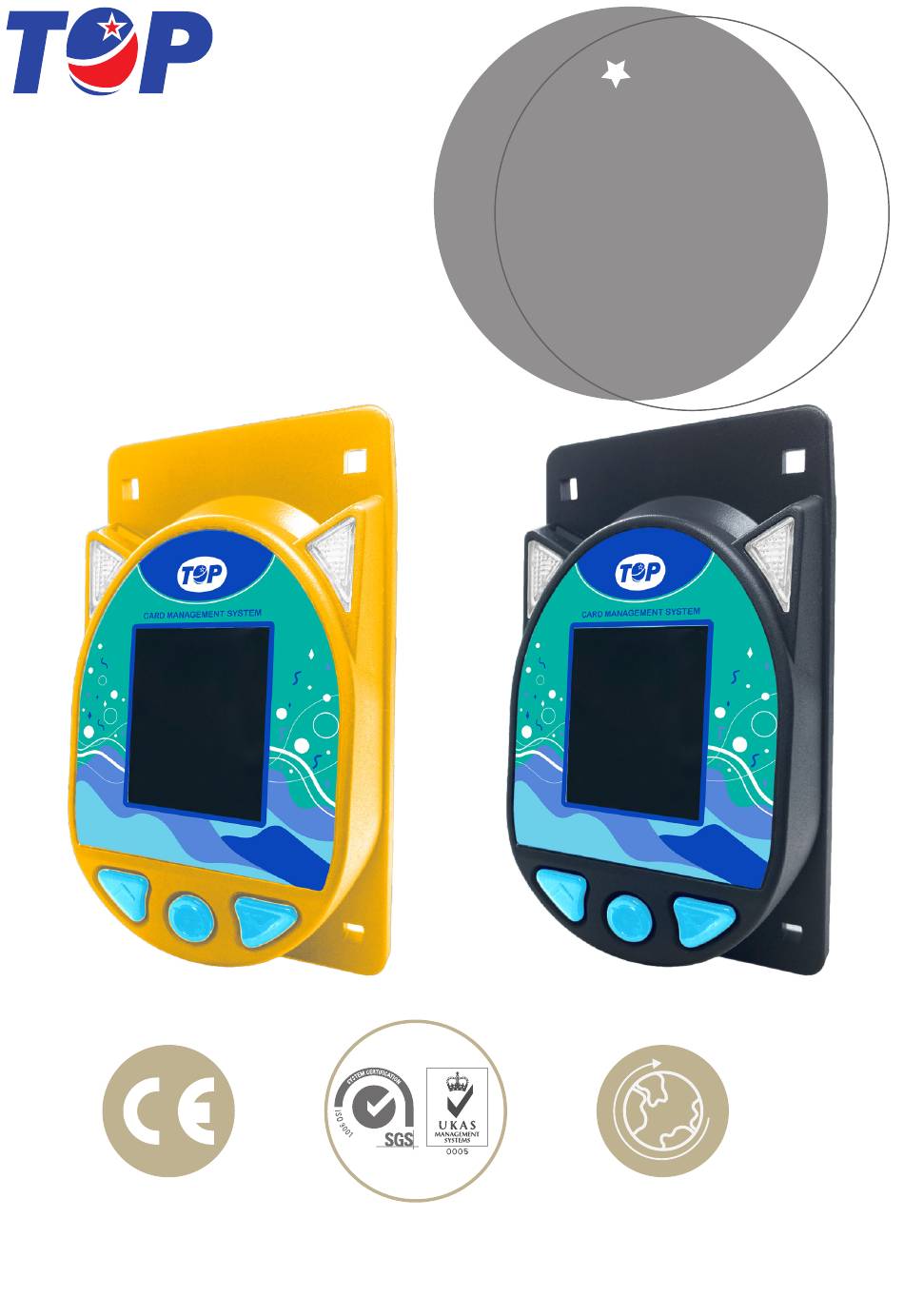

- Page 1 CM S3 05 Card Reader User Guide Th ank y ou fo r choo s i ng TOP VME .
-
Page 3: Table Of Contents
C o n t e n t s 1. Product Introduction ....................1 1-1. Overview ..........................1 1-2. Features ..........................1 2. Product Specifications ..................... 2 2-1. General Specifications ....................2 2-2. Electronic Specifications ....................2 2-3. Machine Specifications ....................2 3. -
Page 4: Product Introduction
1-1. Overview The card management system can save labor costs, and reduce auditing stress. All top-ups and cash settlements are completed at the cash register to avoid unnecessary cash handling. This solves the problem of miscalculation and difference between the cash and computer accounts of other branches, and increase the time cost of checking and reconciling. -
Page 5: Product Specifications
Card Reader 2. Product Specifications 2-1. General Specifications Communication RS232/PULSE Interface Complies with ISO14443A, can support Card type Mifare1 S70 contactless smart card Installation site Indoors 2-2. Electronic Specifications Input power +12V DC Standby:1.5~1.6W Power Consumption Working:2.3W Max.:2.5W Ambient: 0~60 Temperature Range (°... -
Page 6: Product Dimension
CMS305 4. Product Dimension 52 2.047 36.50 1.437 67 2.638 62.90 2.476 Unit : mm [inch]... -
Page 7: Installation Instructions
1. Please follow the steps according to the recommended shape and size of the door panel. 2. Align the mounting holes from the CMS305 (b) and the mounting holes on the installing panel. 3. Insert the carriage screw (a) and push through the aligned mounting openings (c) of the door panel. -
Page 8: Application
CMS305 6. Application... -
Page 9: Wiring
Card Reader 7. Wiring Connector Interface Voltage Use Wire Pag. +12V Power Power Cable WEL-R7U02 +12V Power Power CU-R961-1 Extension RS232/ WEL-R7U06 Data Transfer UART (Purchase) 2WIR-CP2102N-00 USB/UART Data Transfer (Purchase) 2WIR- PULSE/ CMS100H Data Transfer CMS3000C-00 HOPPER (Purchase) 2WIR-CMS100G1- +12V CMS100H CMS100H... - Page 10 CMS305 WEL-R7U02 PIN NO COLOR PIN DEFINE PIN NO COLOR PIN DEFINE +12V DC PIN1 YELLOW PIN1 PIN2 GREEN PIN2 ORANGE +12V DC PIN5 PIN3 YELLOW PIN7 BLUE PIN4 GREEN PIN8 PURPLE PIN5 BLUE PIN9 ORANGE PIN6 PURPLE...
- Page 11 Card Reader CU-R961-1 PIN NO COLOR PIN DEFINE PIN1 YELLOW PIN2 GREEN PIN5 +12V DC PIN7 BLUE PIN8 PURPLE PIN9 ORANGE...
- Page 12 CMS305 WEL-R7U06 PIN NO COLOR PIN DEFINE PIN1 BLUE PIN NO PIN DEFINE PIN2 PIN6 WHITE PIN3 PIN7 BLACK PIN5 PIN8 PURPLE...
- Page 13 Card Reader 2WIR-CP2102N--00 PIN NO PIN DEFINE PIN NO COLOR PIN DEFINE PIN1 PIN1 BLUE PIN2 USB DP PIN6 WHITE PIN3 USB DM PIN7 BLACK PIN4 USB +5V PIN8 PURPLE...
- Page 14 CMS305 2WIR-CMS3000C-00 PIN NO COLOR PIN DEFINE PIN NO COLOR PIN DEFINE PIN1 BLACK PIN7 BLUE PAY- PIN2 BROWN NOTE PIN8 WHITE TICKET_IN PIN3 GREEN PAY+ PIN9 PURPLE HOP_OUT PIN4 ORANGE TICKET_OUT PIN10 GRAY METER_OUT PIN5 YELLOW HOP_N PIN11 PINK...
- Page 15 Card Reader 2WIR-CMS100G1-0B PIN NO COLOR PIN DEFINE PIN1 BLACK PIN2 +12 DC...
- Page 16 2WIR-CMS100H1-0A PIN NO COLOR PIN DEFINE PIN NO COLOR PIN DEFINE PIN1 YELLOW PIN1 YELLOW PIN7 PIN7 BLACK PIN8 BLACK PIN8...
-
Page 17: Function Description
(long press) 2. 【▲】Button: Scroll up/add 3. 【▼】Button: Scroll down/less 4. 【●】Setting Button: Set the function mode of cms305 5. DIP Switch : Setting mode 8-2. Setting Press the setting button for 1 seconds to enter the setting menu, then use... -
Page 18: Game
CMS305 8-2-1. GAME 1. Mode : Hopper or Pulse mode 2. Play : Opening points 3. Level : Signal level 8-2-2. Signal Signal time width setting, units in ms 8-2-3. System 1. Card key : Card Key Setting 2. Version : Version Check 3. -
Page 19: Operation Display
Card Reader 8-4. Operation Display Display Description Credit Balance Rate Score ratio Ticket Ticket Play Open Score Ready Card Read No card No card inserted Unknow Unknown card Invalid card Unknown card 9. Troubleshooting Message Narrative Preventive action Card limit Card used over 100K times Replace card Download the Version Err... - Page 20 CMS305 FCC Warning description Part 15.19 statement This device and its accessories comply with Part15 of FCC rules. Operation is subject to the following two conditions: (1) This device and its accessories may not cause harmful interference. (2) This device and its accessories must accept any interference received, including interference that may cause undesired operation.
- Page 22 Taiwan Top Vending Machine Electronics Co., Ltd. NO.11, Anzhong St., Luzhu Dist., Taoyuan City338, Taiwan, (R.O.C.) Phone : +886-3-3115969．Fax : +886-3-3115970 E-mail : sales@topvme.com.tw Website : www.topvme.com...
- Page 23 Th ank y ou fo r choo s i ng TOP VME .
