Avalue Technology ARC-1200 Quick Reference Manual

Rugged pcap multi-touch monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

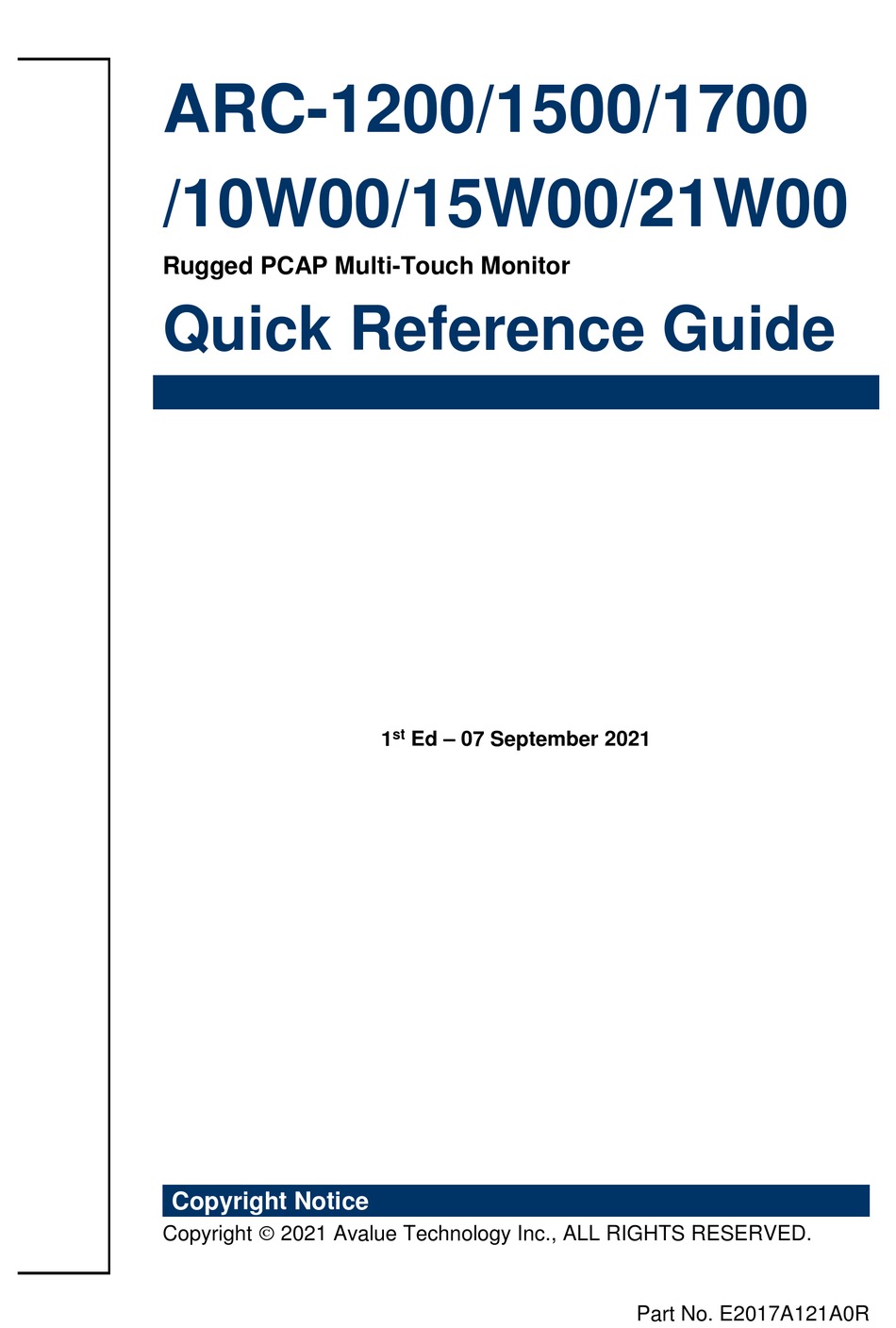

ARC-1200/1500/1700
/10W00/15W00/21W00
Rugged PCAP Multi-Touch Monitor
Quick Reference Guide
Ed – 07 September 2021
st
1
Copyright Notice
Copyright  2021 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017A121A0R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARC-1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalue Technology ARC-1200

Summary of Contents for Avalue Technology ARC-1200

  • Page 1 ARC-1200/1500/1700 /10W00/15W00/21W00 Rugged PCAP Multi-Touch Monitor Quick Reference Guide Ed – 07 September 2021 Copyright Notice Copyright  2021 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017A121A0R...
  • Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...

  • Page 3: Table Of Contents

    1.4 System Overview ....................10 1.4.1 I/O View ..........................10 1.5 System Dimensions (with Panel Mounting’s Bracket) ..........12 1.5.1 ARC-1200 Front and Rear side ..................... 12 1.5.2 ARC-1500 Front and Rear side ..................... 13 1.5.3 ARC-1700 Front and Rear side ..................... 14 1.5.4...

  • Page 4: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x ARC-1200/1500/1700/10W00/15W00/21W00 Rugged PCAP  Multi-Touch Monitor 1 x Power Adapter ...

  • Page 5: System Specifications

    (Option for wide voltage 9~36V DC jack & phoenix connector in) 293.77 x 226.31 x 61.5 350.51 x 274.51 x 63.5 392.72 x 325.32 x 70.25 Dimension Weight 2.5 Kg 3.7 Kg 4.6 Kg Color Black ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...
  • Page 6 7 Reference IEC 60068-2-27 testing procedures Test Eb : Shock Test Package drop test Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed Drop Test Test Ea : Drop Test 1 Test phase : One corner, three edges, six faces 6 ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...
  • Page 7 B/L Inverter/Converter D2626514G1PA 15.6" YFO H8811C Sense 10.1" PCAP YFO 21.5" PCAP Touch Touch Screen PCAP GF1 COB+Weida Touch, ST-101C26E for ARC-21W H8593H WDT8752A YW52H456P5656 Touch Controller EETI Control board (Weida EETI EXC84H5680 WDT8752A) External I/O ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...
  • Page 8 1 Test PSD : 0.026G²/Hz , 2.16 Grms 2 Test frequency : 5~500 Hz 3 Test axis : X,Y and Z axis 4 Test time : 30 minutes per each axis 5 IEC 60068-2-64 Test Fh 8 ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...
  • Page 9 Operating -10°C ~ 50°C Temperature (0 to 40 °C with adapter Safety) Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Note: Specifications are subject to change without notice. ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...

  • Page 10: System Overview

    ARC-1200/1500/1700/10W00/15W00/21W00 1.4 System Overview 1.4.1 I/O View ARC-1200 ARC-1500 ARC-1700 ARC-10W00 10 ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...
  • Page 11 Quick Reference Guide ARC-15W00 ARC-21W00 Connectors Label Function Note DP connector HDMI HDMI connector VGA connector USB(B) for Touch USB(B) connector for Touch Mic-in audio jack Mic-in DC-IN DC power-in connector ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide 11...

  • Page 12: System Dimensions (With Panel Mounting's Bracket)

    ARC-1200/1500/1700/10W00/15W00/21W00 1.5 System Dimensions (with Panel Mounting’s Bracket) 1.5.1 ARC-1200 Front and Rear side (Unit: mm) Note: Cut Out Dimension: 283.5+/-0.3*216.5+/-0.3mm 12 ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...

  • Page 13: Arc-1500 Front And Rear Side

    Quick Reference Guide 1.5.2 ARC-1500 Front and Rear side Note: (Unit: mm) Cut Out Dimension: 340.2+/-0.3*264.2+/-0.3mm. ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide 13...

  • Page 14: Arc-1700 Front And Rear Side

    ARC-1200/1500/1700/10W00/15W00/21W00 1.5.3 ARC-1700 Front and Rear side (Unit: mm) Note: Cut Out Dimension: 382.5+/-0.3*315.2+/-0.3mm. 14 ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...

  • Page 15: Arc-10W00 Front And Rear Side

    Quick Reference Guide 1.5.4 ARC-10W00 Front and Rear side (Unit: mm) ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide 15...
  • Page 16 ARC-1200/1500/1700/10W00/15W00/21W00 Note: 1. Cut Out Dimension: 273+/-0.2*191.6+/-0.2mm. 2. Wide voltage version ARC-10W00 will remove one Panel Mounting’s Bracket for using phoenix connector. 16 ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...

  • Page 17: Arc-15W00 Front And Rear Side

    Quick Reference Guide 1.5.5 ARC-15W00 Front and Rear side (Unit: mm) Note: Cut Out Dimension: 380.4+/-0.3*228.4+/-0.3mm. ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide 17...

  • Page 18: Arc-21W00 Front And Rear Side

    ARC-1200/1500/1700/10W00/15W00/21W00 1.5.6 ARC-21W00 Front and Rear side (Unit: mm) Note: Cut Out Dimension: 527+/-0.5*330+/-0.5mm. 18 ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...

  • Page 19: Hardware Configuration

    Quick Reference Guide 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide 19...

  • Page 20: Arc-1200/1500/1700/10W00/15W00/21W00 Connector Mapping

    ARC-1200/1500/1700/10W00/15W00/21W00 2.1 ARC-1200/1500/1700/10W00/15W00/21W00 connector mapping 2.1.1 VGA connector (VGA) Signal PIN Signal PIN Signal GREEN DDCDAT BLUE HSYNC VSYNS DDCCLK 20 ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...

  • Page 21: Osd Key Setting

    Quick Reference Guide 2.2 OSD Key Setting 2.2.1 OSD Key Function: ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide 21...

  • Page 22: Osd Key Tree Table

    0 - 100 0 - 100 0 - 100 0 - 100 0 - 100 0 - 100 DEMO / TYPE1 / TYPE2 / TYPE3 / TYPE4 / TYPE5 Color Format / YUV (VGA signal only) 22 ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...
  • Page 23 Into test mode: No Signal input, then press menu key + right (up) key at the same time. Release test mode: Signal input will release test mode. Hot Key: Down/Backlight-, UP/Backlight+, Exit/Auto adjust(no auto gain) ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide 23...
  • Page 24 Select Digital to input from DP/HDMI audio source Select Analog to input from Audio jack When the display input signal is VGA: Menu -> Audio -> Audio Source -> Analog (not selectable, only input from Audio Jack) 24 ARC-1200/1500/1700/10W00/15W00/21W00 Quick Reference Guide...
