User's manual
Universal Wheel Bearing Tool Set
61479
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for XPOtool 61479
Summary of Contents for XPOtool 61479

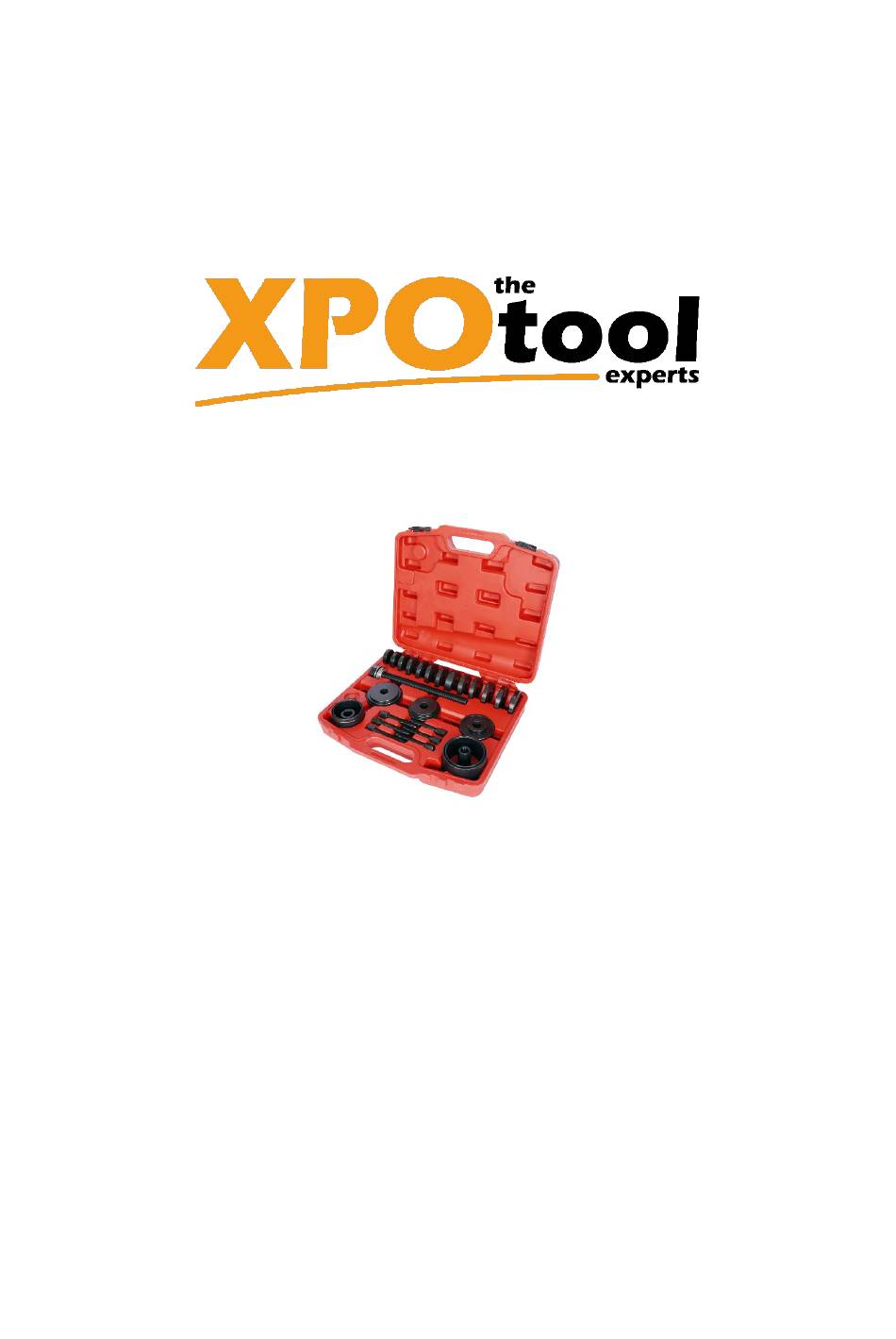

- Page 1 User’s manual Universal Wheel Bearing Tool Set 61479 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler Germany E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 61479 Page 2 The Tool Experts 2022-1...
- Page 3 Bushing ⌀ 74.8 mm Screw-down nut SW 32 × 60 mm Bushing ⌀ 77.5 mm Pressure sleeve ⌀ 38 × 40 mm Bushing ⌀ 81.5 mm Pressure sleeve ⌀ 40 × 3 mm https://www.XPOtool.com Item 61479 Page 3 The Tool Experts 2022-1...
- Page 4 5. Proceed with the other screw in the same way as described from step 3. Attention! Always work steadily to prevent tilting. Step 2 Use suitable pliers to remove the retaining ring. https://www.XPOtool.com Item 61479 Page 4 The Tool Experts 2022-1...
- Page 5 Once the bearing has been pulled out, the complete unit can be removed from the wheel bearing hous- ing towards the pull-out sleeve side. Now dismantle the tool again. https://www.XPOtool.com Item 61479 Page 5 The Tool Experts 2022-1...
- Page 6 The wheel hub is now pushed onto the extracting screw in front of the sleeve. Insert the extracting screw back into the wheel bearing housing and attach the rear pull-out parts as usual. Now the installation of the wheel hub can begin. https://www.XPOtool.com Item 61479 Page 6 The Tool Experts 2022-1...
- Page 7 The threads of the extracting screw and press-off bolts should be lubricated with a heavy-duty grease before each use. Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 61479 Page 7 The Tool Experts 2022-1...
