Summary of Contents for Daisy 9016 X-Purge
-

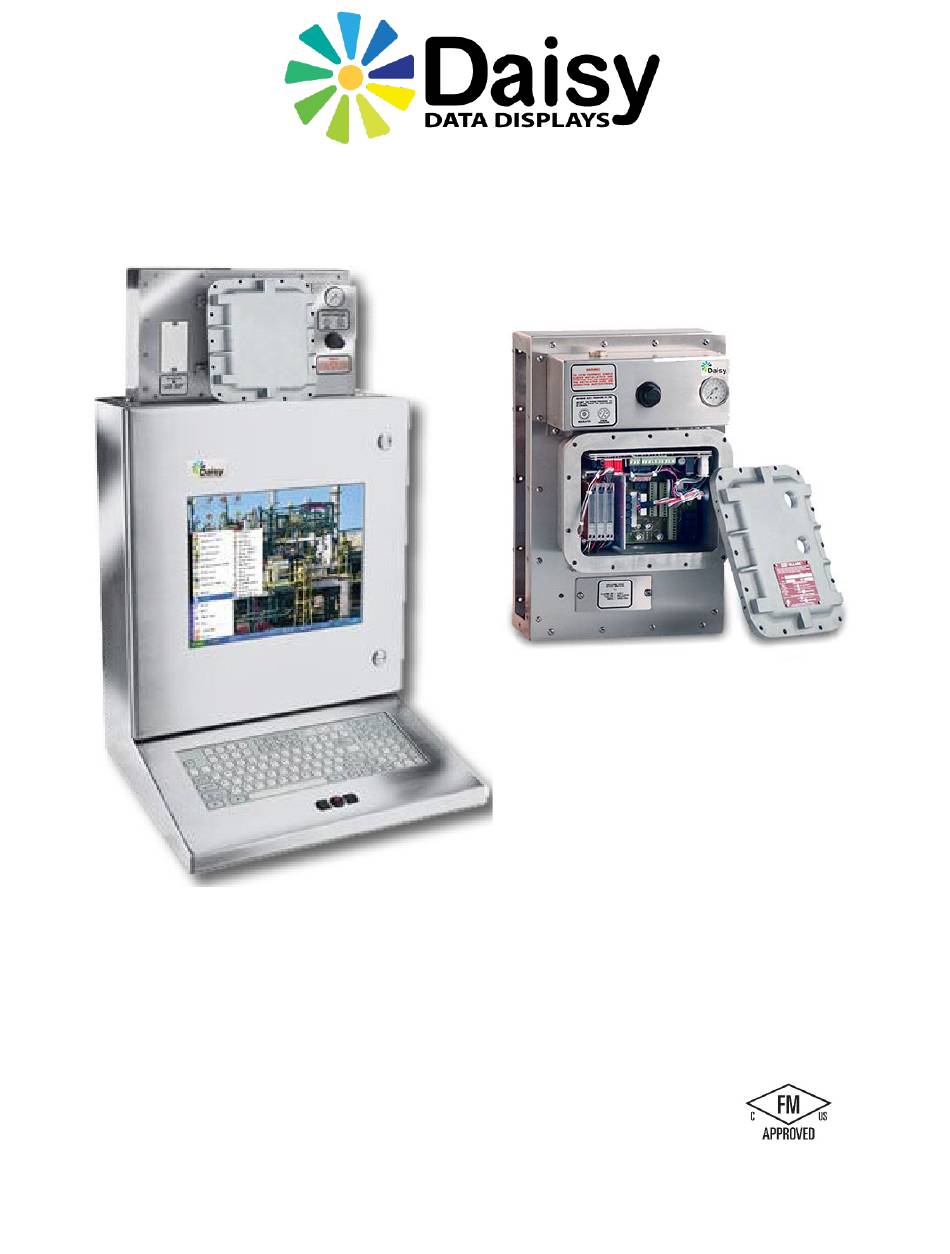

Page 1: Model 9016 X-Purge
Model 9016 X-Purge User Manual February 2022 D010-000002... -
Page 2: Disclaimer
DAISY manufactured equipment, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Further, Daisy Data Displays, Inc. reserves the right to make changes to any and all DAISY manufactured equipment, at any time, without obligation to notify any person or entity of such changes. -
Page 3: Limited Warranty And Liability Statement
Daisy Data Displays, Inc. Limited Warranty and Liability Statement To the original purchaser, Daisy Data Displays, Inc., hereinafter referred to collectively as SELLER, warrants each of its manufactured products, and all components therein contained to be free from defects in materials and/or workmanship for a period of 24 months from the date of purchase. -
Page 4: Table Of Contents
M015 9016 X-Purge dimensions ........................23 M013 9016 X-Purge mounting ........................24 M016 9016 X-Purge mounting options ......................25 P012 9016 X-Purge front panel item location ..................... 26 P013 X-Purge back panel item location ....................... 27 P014 Stand alone X-Purge pneumatic block diagram .................. 28 E028 Stand alone X-Purged electrical block diagram .................. -
Page 5: Introduction
This manual describes the general procedures for installing and operating DAISY Model 9016 X-Purge interface systems. The text portion of the manual also includes an overview of the theory behind the methods used to make electronic systems safe for hazardous areas. -
Page 6: Pre-Installation Testing
Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc. 3 Pre-Installation Testing Before installing your system in its final location, you may wish to test it to verify that the purge system is functioning correctly. 3.1 Division 1 X-Purge Test IMPORTANT NOTE: Pre-installation testing should always be conducted in a safe area. - Page 7 Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc. 11. Slowly increase air pressure with the regulator until the purge process stops. Note Pressure the pressure at which the purge process stops. The Purge Status LED will flash red and display an error code - [2 –...
-
Page 8: Installation
Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc. 4 Installation 4.1 PAC-Seal Connection Instructions A conduit seal is necessary for most equipment enclosures in hazardous areas. Consult your local codes for full guidance. It is very important that knowledgeable personnel, familiar with national and local codes, supervise hazardous area equipment installations. - Page 9 Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc. Procedure 1. Clean threaded surfaces and pour locations should be with soap and water and thoroughly dried before proceeding. 2. Install two conduit runs (one signal, one power) between the enclosure I/O casting and AC power source (located in a safe area or in an explosion-proof box).
-
Page 10: Purge Air Line Connection Instructions
Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc. 4.2 Purge Air Line Connection Instructions 4.2.1 For Division 1 X-Purge Systems Model 9016 After the unit has been mounted in its final location in the hazardous area, it must be permanently connected to a purge air or inert gas line and checked for leaks and proper operation of the purge/pressurization system. -
Page 11: Start-Up Operation
Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc. 5 Start-Up Operation 5.1 Division 1 X-Purge Start-Up Operation Set DIP switches (see drawing P008, note 8 and drawing E029 note 3 to set the DIP switches for the size enclosure you are going to purge. -
Page 12: Operation Notes
6.1 Division 1 X-Purge X-Purge systems are fully automatic. The system disconnects power and signal in the enclosure in the event of a purge failure. The DAISY purge control also performs automatic Table 6.1 X-Purge Status Light Key self-diagnostics and can report other errors. - Page 13 Short purge switch Fatal the circuit. is stuck If you continue to experience problems, Contact DAISY Customer Service (See Section 7) Review Customer Service on page 14. The “BYPASS PURGE” switch on the DIP switch mounting board (drawing E020) is shorted, stuck, or was held down too long while beginning a test.
-
Page 14: Customer Service
7 Customer Service All Daisy systems pass detailed quality control configuration and inspection before being shipped. Daisy strives to create the highest quality systems and chooses top quality parts. However, like most electronic devices, units may experience issues over time. Should you experience problems, or have any inquiries or comments, please contact Daisy’s Customer... -
Page 15: Trouble-Shooting Guide
Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc. 8 Trouble-Shooting Guide 8.1 Division 1 X-Purge Trouble-Shooting PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION Connect AC power to the power Power is not connected to connection on the purge system. the unit Ensure that the power switch is on. -
Page 16: Specifications
Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc. 9 Specifications MATERIAL Purge Control main panel, Interface Box, and all mounting screws ......304 Stainless Steel I/O Casting and lid ........Cast Aluminum I/O Casting bolts ........Irradiated Steel PHYSICAL Purge Controller ........ -
Page 17: Drawings
9016 X-Purge dimensions ......................23 M013 9016 X-Purge mounting ......................24 M016 9016 X-Purge mounting options....................25 P012 9016 X-Purge front panel item location .................. 26 P013 X-Purge back panel item location .................... 27 P014 Stand alone X-Purge pneumatic block diagram ..............28 E028 Stand alone X-Purged electrical block diagram ............... - Page 18 Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc. THIS PAGE INTENTIONALLY BLANK February 2022 D010-000002...
-
Page 19: P007 Cable And Conduit Entry 9016 15" & 18" Enclosures
Page 19... -
Page 20: P008 X-Purge Front Panel Item Location
Page 20... -
Page 21: P011 Cable And Conduit Entry 9016 Mounted To Enclosure
Page 21... -
Page 22: E030 Electrical Input Connections
Page 22... -
Page 23: M015 9016 X-Purge Dimensions
Page 23... -
Page 24: M013 9016 X-Purge Mounting
Page 24... -
Page 25: M016 9016 X-Purge Mounting Options
Page 25... -
Page 26: P012 9016 X-Purge Front Panel Item Location
Page 26... -
Page 27: P013 X-Purge Back Panel Item Location
Page 27... -
Page 28: P014 Stand Alone X-Purge Pneumatic Block Diagram
Page 28... -
Page 29: E028 Stand Alone X-Purged Electrical Block Diagram
Page 29... -
Page 30: E017 Power Interface Board Item Location
Page 30... -
Page 31: Chart Div.1 X-Purge Signal Switching Board/Internal Signal Interface Board
SIGNAL SWITCHING BOARD and INTERNAL SIGNAL INTERFACE BOARD CONNECTIONS PAC-SEAL Wire Color J10 J11/14 WHITE/ORANGE J11-1 ORANGE/WHITE J11-2 WHITE/GREEN J11-3 GREEN/WHITE J11-4 WHITE/BLUE J11-5 BLUE/WHITE J11-6 J6 center GREEN J14-1 J6 center J6 shield YELLOW J14-2 J6 shield J4 center J14-3 J4 center J4 shield BLACK... -
Page 34: E020 Dip Switch Mounting (Dmb) Board Item Location
Page 34... -
Page 35: E022 Connections For Remote X-Purged Enclosures
Page 35... -
Page 36: E025 Connections For Lcd-Pc X-Purged Enclosures
Page 36... -
Page 37: E029 Dip Switch Mounting (Dmb) Board Item Location
Page 37... -
Page 38: E032 Dip Switch Mounting (Dmb) Item Location (130 C.f.)
Page 38... -
Page 39: E021 Purge Control Board Item Location
Page 39...
