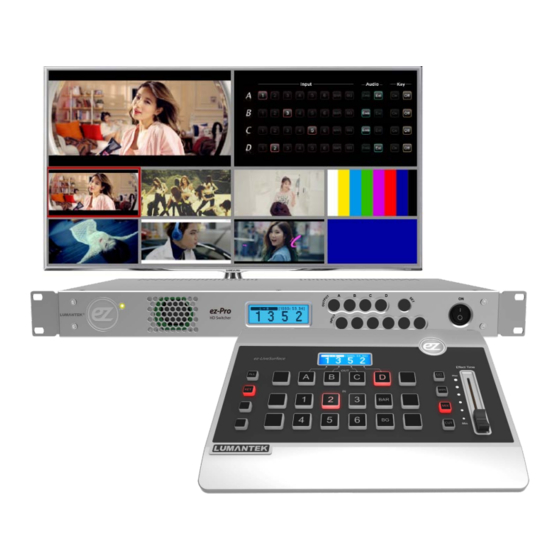

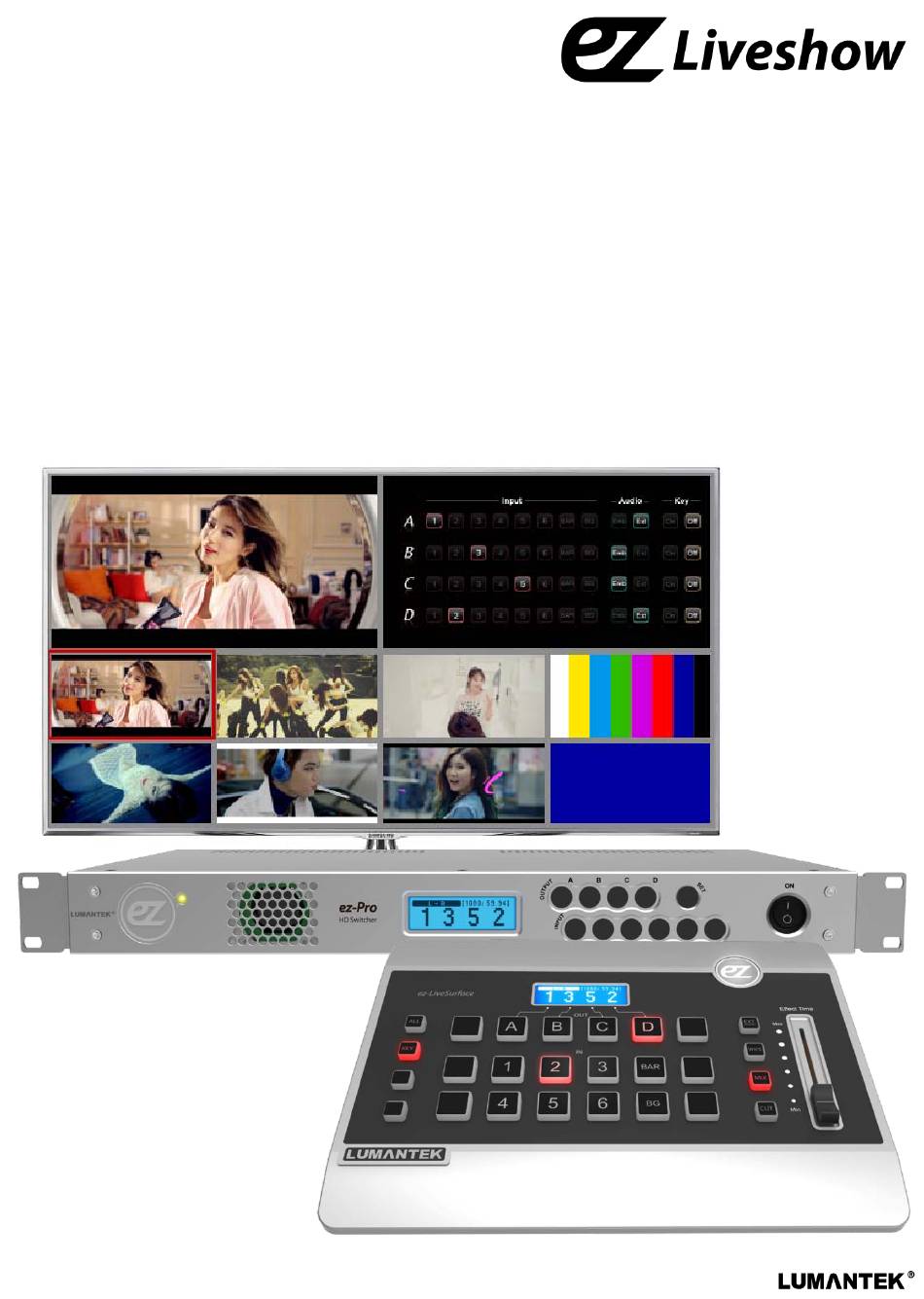

- Page 1 All-in-One Matrix Switcher( ez-Pro VM6) / Manual v 1.2 Updated June. 2016 manual ez-Pro VM6 : All-in-One Matrix Switcher (model:VM6) 6 HD-SDI Input / 4 HD-SDI Output Matrix Switcher Chapter No. 1-4...
- Page 2 This publication may contain technical issues, inaccurate information or typos. These will be revised in revised edition, if there is any. No part of this publication is subject to be reproduced, stored in retrieval system, or transmitted in any forms, or any means without the prior consent by Lumantek. Trademarks...
- Page 3 Avoid wearing loosened clothes or accessories during installation/Operation. Avoid any unnecessary actions that may damage/harm system or personnel. Do NOT open the system unless advised by Lumantek representative. Lumantek takes no responsibility on units with broken RMA seals. Power Precautions Please check cable overload before connecting the system to the power supply.
-
Page 4: Table Of Contents
ez-Pro : All-in-One Matrix Switcher / Manual Contents 1. Introduction ------------------------------------- 2. ez-Pro System interface ------------------------- 2.1 System description 2.2 Package contents 2.3 HDMI multi-view interface 2.4 Console interface 2.5 Main unit interface Chapter No. 1-4... -
Page 5: Introduction
6 HD-SDI Inputs / 4 HD-SDI Outputs - All-in-One Matrix Switcher 1. Introduction The Lumantek ez-Pro is one of a kind. Hybrid between Video Matrix and Switcher. Adding the key advantage from traditional Matrix/Switchers. Seamless Live switching media or cameras with 6 input and 4 output of SD/HD-SDIs. -
Page 6: Ez-Pro System Interface
: All-in-One Matrix Switcher / Manual 2. ez-Pro VM6 System Interface 2.1 Interface < ez-Pro VM6 Main frame – Front> Power LED < ez-Pro VM6 main frame – Rear> SDI Input SDI Out Audio Input Power 1/2/3/4/5/6/7 A/B/C/D (Left/Right) -
Page 7: Hdmi Multi-View Interface
ez-Pro : All-in-One Matrix Switcher / Manual 2.3 HDMI Multi-View interface SDI Output ez-Pro Monitoring Monitoring ez-Pro Input Monitoring Input 1 Input 2 Input 3 Input 4 Input 5 Input 6 Chapter No. 1-4... -
Page 8: Console Interface
ez-Pro : All-in-One Matrix Switcher / Manual 2.4 Console Interface LCD Screen ① Display Selected Screen Effect. - Display system resolution. - Display each Input channel on A/B/C/D output. ② Display selected system resolution -Resolution support ‘1080i60/1080i59.94/1080i50/720p60/720p59.94/720p50/625i/525i’. Resolution settings is also adjustable at VM6 main unit. (Front Panel) ③... - Page 9 ez-Pro : All-in-One Matrix Switcher / Manual Output Control ① Select Output Channel A/B/C/D or selected output channel indicator. Input Control ① Select an input signal channel from -/1/2/3/4/5/6/BAR/BG” for selected output channels. Selected input channel indicator ‘All’ Button ① Simultaneous output of a single signal among input sources ’1/2/3/4/5/6/BAR/BG’. ‘Key’...
-
Page 10: Main Unit Interface
ez-Pro : All-in-One Matrix Switcher / Manual 2.4 Main Unit Interface ( front) LCD Screen ① Display selected switching effect. ② Display selected resolution. ③ Display each input channels which are now broadcasting to A/B/C/D output channels. Output Select ① Select output channels, A/B/C/D. Input Select ①... - Page 11 ez-Pro : All-in-One Matrix Switcher / Manual * LCD Screen Control Scenario Boot the ez-Pro main unit Short button Push & Hold button To enter ‘Menu’ Short button Main Display Push & Hold button Short button To exit from the ‘Menu’ Short button Short...
- Page 12 ez-Pro : All-in-One Matrix Switcher / Manual ** LCD Screen Description - Display selected switching effect. - Display selected system resolution. - Display each input channels which are now broadcasting to A/B/C/D output channels. - Input channel information indicator ‘1/2/3/4/5/6’. - Select ez-Pro system resolution.
