Panasonic TX-W32D5F/P Service Manual

SPECIFICATIONS
(Information in brackets { } refer to TX-W28D5F/P)
Power Source: 220-240V AC, 50Hz
Power Consumption: 235W {204W}
Aerial Impedance: 75Ω unbalanced, Coaxial Type
Stand-by Power
Consumption: 1,9W
Receiving System: PAL B/G, H, D/K, PAL-525/60
SECAM B/G, D/K
M.NTSC
NTSC (AV only)
Receiving Channels:
VHF E2-E12 VHF H1-H2 (ITALY)
VHF A-H (ITALY) VHF R1-R2
VHF R3-R5 VHF R6-R12
UHF E21-E69 CATV (S01-S05)
CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)
Intermediate Frequency:
Video 38,9MHz
Audio 33,4MHz, 33,16MHz
32,4MHz, 33,05MHz
32,66MHz
Colour 34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Video/Audio
Terminals:
AUDIO MONITOR OUT Audio (RCAx2) 500mV rms 1kΩ
AV1 IN Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin)
AV1 OUT Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
All manuals and user guides at all-guides.com

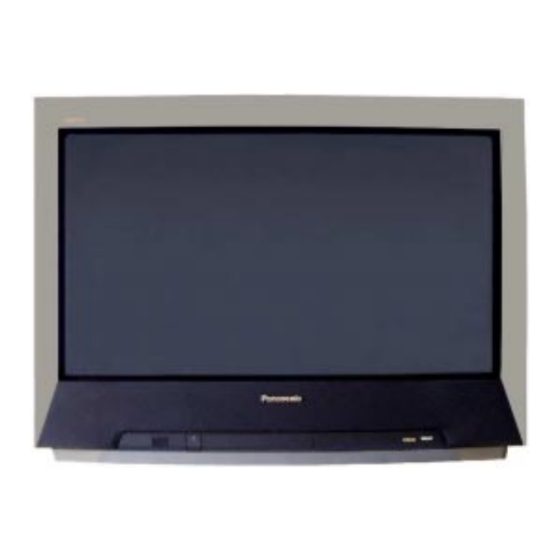

Colour Television
TX-W32D5F/P
TX-W28D5F/P
EURO - 5 Chassis
AV2 IN Video (21 pin)
Audio (21 pin)
S-Video IN
(21 pin)
AV2 OUT Video (21 pin)
Audio (21 pin)
Selectable Output (21 pin)
AV3 IN S-Video IN
(4-pin)
Audio(RCAx2)
Video (RCAx1)
AV4 IN Video (21 pin)
Audio (21 pin)
S-Video IN
(21 pin)
AV4 OUT Video (21 pin)
Audio (21 pin)
32kV ±1kV
High Voltage:
Picture Tube:
W76LNR585X05
Audio Output: 2 x 20W
26W
(Music Power) 8Ω Impedance
Headphones: 8Ω Impedance
3,5 mm
Accessories
Supplied: Remote Control
2 x R6 (UM3) Batteries
Dimensions:
Height: 577,6mm
Width: 778mm
Depth: 535mm
Net weight: 53,5kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE: This Service Manual should be used in conjunction with
the EURO - 5 Technical Guide.
ORDER No. SM-98087
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C: 0.3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ
Y: 1V p-p 75Ω
C: 0,3V p-p 75Ω
500mV rms10kΩ
1V p-p 75Ω
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C: 0.3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ
{30,5kV ±1kV}
{W66EHK51X81}
Left/Right
Super 3D Bass
{523,2mm}
{684mm}
{510mm}
{38,5kg}
