Summary of Contents for zebris FDM-T-Sports

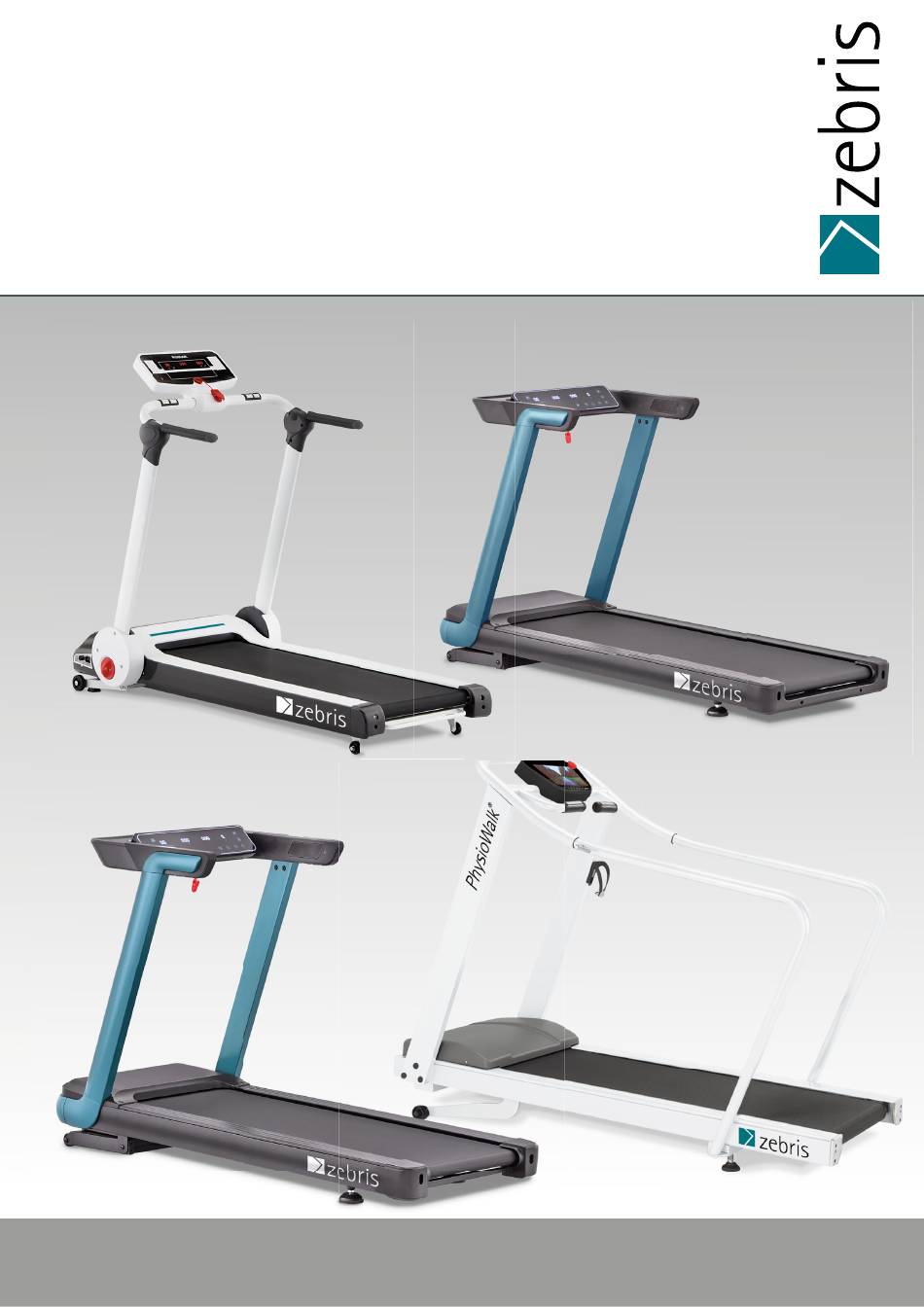

  • Page 1 FDM-T-Sports Operating Instructions and Specifi cations...
  • Page 2 Operating Instructions FDM-T-Sports describes included functions up to and including version 1 Illustrations of this manual may differ. © 2021 zebris Medical GmbH All rights reserved. Reproduction in whole or in part only with permission of zebris Medical GmbH. Textrelease: R 1 Stand: 30.08.2021...
  • Page 3: Table Of Contents

    3.8. Spare parts FDM-T system 3.9. Accessories FDM-T measuring system 4 Video module 4.1. Connection to the FDM-T system 4.1.1. Connection to the zebris SYNCCam 4.1.2. Connection scheme SYNCLightCam 4.2. SYNCCam 4.3. SYNCCam HS 4.4. SYNCLightCam – variant 30 Hz...
  • Page 4 5.2.1. Power supply of the FDM-T sensors 5.2.2. Connection of the system 5.3. Computer requirements 5.4. Installing the zebris FDM-T software 5.5. How to switch the FDM-T sensor on/off 5.6. Setting the system out of operation 5.7. Recommendations for recording data 5.7.1.
  • Page 5: Introduction

    The user manual for the FDM-T measuring system therefore consists of several sections: 1. FDM-T specifications and hardware user manual 2. zebris FDM user manual for the application software 3. Specifications and user manual supplied by the treadmill manufacturer. 4. User manual and specifications of accessories like projector or PC...
  • Page 6: Conventions And Symbols Used

    This warning indicates the type of hazard and how it can be avoided. CE mark according to EC Directives 2014/30/EEC and 2014/35/EEC (Low Voltage Directive and EMC Directive). Manufacturer Direct Current USB-Interface Do not dispose of with household waste Item Number Serial Number FDM-T-Sports Seite 6/41 Seite 6/69...
  • Page 7: Safety

    The ventilation slots of the treadmills must be always free, so that air can circulate freely. 2.2. Storage and transport Storage and transport of the measuring system are only to be affected in the original packaging provided by zebris. Temperature -20°C to +70°C Relative humidity max.
  • Page 8: User Obligations

    The FDM-T system including accessories is connected to the mains socket with a protective ■ grounding conductor and is operated with the correct mains voltage. Exclusively the software provided by zebris as well as the components and accessory parts listed ■ in this user manual are used together with the system.
  • Page 9: General Safety Instructions

    The client’s data and measuring data may only be copied, moved or deleted using the database ■ function provided by the zebris application programs. In the case of data being changed inten- tionally without using the database functions, the user alone bears the full risks involved.
  • Page 10: Safety Instructions For The Treadmill

    “fall stop” chest belt. Pull out the power plug before transporting the treadmill. ■ FDM-T-Sports Seite 10/41 Seite 10/69...
  • Page 11: Prohibited Use

    We also point out that if any changes are made to this certified device or its accessories without ■ the prior written consent of zebris, your legal right to operate the device will be void. If changes are made to the device without obtaining approval, the operator is obligated to carry out suitable investigations and tests to guarantee safe use.
  • Page 12: Product Description

    Silicone oil for lubricating the belt ■ Cable guard with screws ■ User manual for FDM-T system, treadmill, zebris FDM software ■ 3.2. Specifications FDM-T sensor The sensors of the different FDM-T systems only vary in size of the measuring area, the number of single sensors included in the sensor module and the supported sampling frequency.
  • Page 13: Technical Specifications Fdm-T Measuring Systems

    Sampling rate 100 Hz Sensor area 94.8 x 40.6 cm Number of sensors 5,376 1 to 80 N/cm² ± 5 % (FS) Accuracy 1 to 80 N/cm² # 3 % Hysteresis Interface Videosync. PC interface FDM-T-Sports Seite 13/41 Seite 13/69...
  • Page 14 Sampling rate 100 Hz Sensor area 94.8 x 40.6 cm Number of sensors 5,376 1 to 80 N/cm² ± 5 % (FS) Accuracy Hysteresis 1 to 80 N/cm² # 3 % Interface Videosync. PC interface FDM-T-Sports Seite 14/41 Seite 14/69...
  • Page 15 1 to 80 N/cm² ± 5 % (FS) 1 to 80 N/cm² ± 5 % (FS) Accuracy Hysteresis 1 to 80 N/cm² # 3 % 1 to 80 N/cm² # 3 % Interface Videosync. Videosync. PC interface FDM-T-Sports Seite 15/41 Seite 15/69...
  • Page 16 3.3. Technical specifi cations FDM-T measuring systems ® Measuring system zebris PhysioWalk – FDM-TRUN2011-2i FDM treadmill TRUN2011-2i 01543222 Speed 0.1 to 20 km/h Walking area 140 x 48 cm Motor 2 HP, AC Weight approx. 150 kg Dimensions (L x W x H)
  • Page 17: Measuring Principle Fdm-T System

    The analogue signal coupled into the shift register over the lines is proportional to the pressure-dependent capacity and is passed on for further processing to the control and signal-processing electronics and transmitted to the PC from there and shown on the display. Schematic circuit diagram of the measuring system FDM-T-Sports Seite 17/41 Seite 17/69...
  • Page 18: Controls And Connectors

    USB socket 3.7. zebris SYNC The zebris SYNC is the standard solution for synchronization of the FDM-T system with third party measuring devices. The SYNC- IN and SYNC- OUT sockets provide input and output for support of “sample by sample“ In- and Out synchronization. Both sockets provide galvanic protection between third party systems and FDM-T sensor.
  • Page 19: Synchronisations Input (Sync-In)

    Series ”00“, three pole, coding 30° LEMO-Part-No.: EPA.00.303.NLN View socket, Socket coding: 30° front side Suitable plug for SYNC-IN: LEMO-Part-No.: FGA.00 303.CLADxxxx Plug coding: 30° View plug, solder side Pin assignment Pin 1 Clk_IN Pin 2 Activ_IN Pin 3 FDM-T-Sports Seite 19/41 Seite 19/69...
  • Page 20: Synchronisations Output (Sync-Out)

    LEMO-Part-No.: EPG.00.304.NLN View socket, Socket coding: 0° front side Suitable plug for SYNC-IN: LEMO-Part-No.: FGG.00 304.CLADxxxx Socket coding: 0° View plug, solder side Pin assignment Pin 1 Pin 2 Pin 3 Activ_OUT Pin 4 Clk_OUT FDM-T-Sports Seite 20/41 Seite 20/69...
  • Page 21: Spare Parts Fdm-T System

    21030071 USB2.0 cable A-B Data connection between interface box and PC length 3 m 07200010 zebris FDM Software for operating system Windows 10 / 64 Bit 79010094 Hardware User Manual The print edition is subject to a charge. Availability from 5 working days after receipt of order.
  • Page 22: Accessories Fdm-T Measuring System

    Main’s adapter 40W / 24V DC SYNCCam/SYNCLightCam 30 Hz USB-Cable A-B 21030321 USB2.0-Cable for HD-video signal with high quality plugs, EMC-shielding, and ferrites length 5 m Videosync.-Control Cable 5 21030316 Length 5 m, both sides phone jack 3.5 mm FDM-T-Sports Seite 22/41 Seite 22/69...
  • Page 23 1 pack of adhesive rings (20 x 5 mm á 500 pieces) for optimal fi xation of the markers, incl. software extension, for the use of the extension module 01540194/SYNCLightCam is required, as well as a current version of the Pressure Distribution Suite FDM-T-Sports Seite 23/41 Seite 23/69...
  • Page 24: Video Module

    Videosync. and USB socket at the backside of the tradmill (PDM-C sensor) Videosync. 4.1.1. Connection to the zebris SYNCCam The zebris SYNCCam uses its integrated synchronization fl ash to synchronize video data with pressure data. For connecting the SYNCCam the following synchronization cable is required: Videosync. Control Cable 5 REF 21030316 Length 5 m, both sides phone jack 3.5 mm...
  • Page 25: Connection Scheme Synclightcam

    4.1.2. Conncection scheme SYNCLightCam Computer with SYNCLightCam 1 SYNCLightCam 2 zebris FDM software FDM-T Interface Box (built in treadmill) 21030312 / Videosync. control extension Videosync. 01830041 / Videosync. control cable 2.5 33102024 / Power supply Mascot 0813105 / Power supply Mascot...
  • Page 26: Synccam

    FDM Software. The camera is connected to the PC by a USB cable of type A-B included within the shipment. The camera is equipped with ¼ inch tripod threads and can be adapted to zebris tripods as wells as commercially available camera tripods.
  • Page 27: Synccam Hs

    FDM software. The camera is connected to the PC by a USB cable of type A-C included within the shipment. The camera is equipped with one ¼ inch tripod thread and can be adapted to zebris tripods as well as commercially available camera tripods.
  • Page 28 Infrared Synchronization via infrared signal without synchronization cable (not compatible with every zebris pressure plate). Cannot be used with the IR interface for zebris EMG. Interpretaion of the status LED Green USB connected and infrared connection available...
  • Page 29: Synclightcam - Variant 30 Hz

    FDM software. The camera is connected to the PC by a USB cable of type A-B included within the shipment. The SYNCLightCam is equipped with ¼ inch tripod threads and can be adapted to zebris tripods as wells as commercially available camera tripods.
  • Page 30 Status LED SYNC mode switch To maintain undisturbed transmission of the video signal it is mandatory to use high quality USB cables. Please, only use cables supplied or recommended by zebris for connecting SYNCCam and PC. FDM-T-Sports Seite 30/41 Seite 30/69...
  • Page 31 1,7 m 50 - 60 Hz 40 W Mains lead Plug adapter SYNC mode Mode Characteristics Pin assignment VIDEO SYNC IN ESD-protected, voltage reversal proof input. Input resistance: 38KWV (AC) Signal-Level: Trigger Level: 15 mV FDM-T-Sports Seite 31/41 Seite 31/69...
  • Page 32: Setup And Operation Of The Fdm-T System

    The belt of the treadmill must be checked after installation, or if the treadmill is moved to another ■ place, and adjusted if required. (Please refer to the user manual of the treadmill manufacturer for this purpose). FDM-T-Sports Seite 32/41 Seite 32/69...
  • Page 33: Connection Of The Measuring System To Mains Supply

    For connecting the FDM-T sensor to the power supply, connect the power supply unit to the mains socket and the power socket on the interface box. For operating the FDM-T sensor, exclusively use the power adapter approved by zebris, which is suitable for the power supply of all FDM-T systems. 33102024 / MASCOT Typ 2420...
  • Page 34: Connection Of The System

    5.3. Computer requirements The requirements for the PC are specified in the user manual of the zebris FDM software. If the computer is not supplied with the measuring system, the manufacturer shall not be held liable for any damage or malfunctions that result from defec- tive software installation or incompatible hardware.
  • Page 35: How To Switch The Fdm-T Sensor On/Off

    5.5. How to switch the FDM-T sensor On/Off The FDM-T sensor is switched on and off by software control as soon as the zebris FDM software green on the PC is started or shut down. If the device has been connected correctly, the power LED lights up on the interface box.
  • Page 36: Maintenance And Safety Inspections

    Medical GmbH or a person who has been explicitly authorized by zebris to do so. Be sure to switch off the measuring system and disconnect it from mains supply before starting ■...
  • Page 37: Mandatory Periodic Inspections And Stk

    Medical Device Operating Regulations). Here it should be noted that standard regulations for electrical devices are concerned here and not measures that are specific to zebris. Before each use of the measuring system, it is recommended for safety reasons to check the correct ■...
  • Page 38: Maintenance Of The Fdm-T Sensor

    Whenever faults occur or in case of doubt, the manufacturer or sales partner authorized by zebris must always be contacted.
  • Page 39: Troubleshooting

    USB LED ■ lights up when the USB is connected to the PC and the device driver is correctly installed.) Are all the other components of the measuring system (infrared synchronization with zebris video ■ camera) connected correctly? For additional information on error messages and their troubleshooting, please refer to the user manual for the zebris FDM software.
  • Page 40: Cleaning And Disinfection

    For confirmation that disinfection has been carried out, it is advised to place a visible sign on the running surface reading "disinfected". FDM-T-Sports Seite 40/41 Seite 40/69...
  • Page 41: Disposal

    For this purpose, the measuring system can be returned to zebris Medical GmbH at the end of its service life at the customer’s own expense and will be forwarded to special recycling companies without any further costs and refund.
