BOERPLAY Duo Swing XL Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Duo Swing XL
PSTE000.020

Advertisement

loading
Need help?

Need help?

Do you have a question about the Duo Swing XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY Duo Swing XL

Summary of Contents for BOERPLAY Duo Swing XL

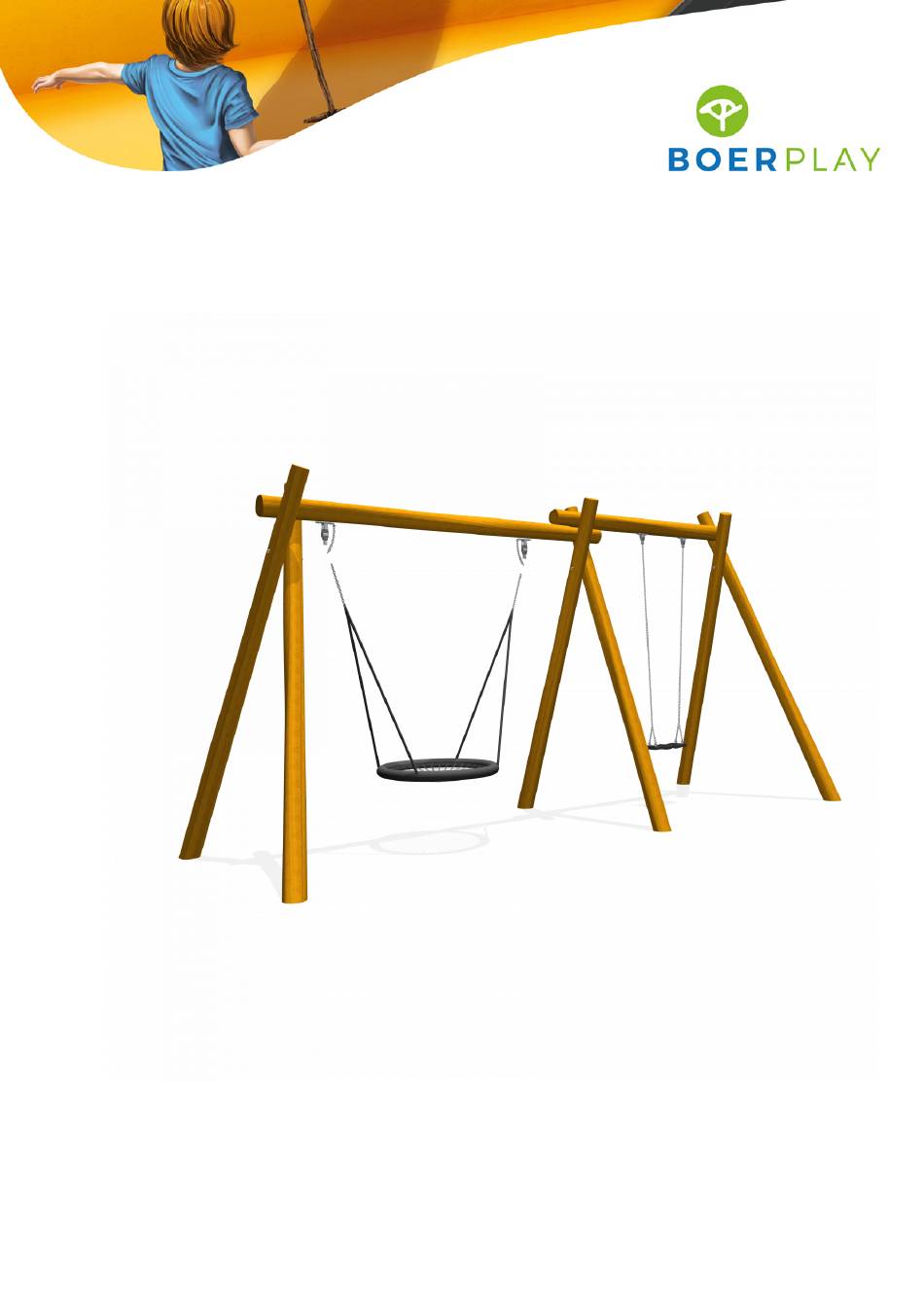

  • Page 1 Duo Swing XL PSTE000.020...
  • Page 2 5,97 m 2,99 m 2,66 m 2,50 m 0,00 m 0,00 m Benaming TOE PST 000 020 C Duo Schommel XL Title Tekening Opmerking Adventure Play Drawing Comment BOER Datum Afmetingen Dimensions 13-7-2015 Date SPEELTOESTELLEN...
  • Page 3 8,97 m 4,70 m 7,01 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PST 000 020 C Duo Schommel XL Title Tekening Opmerking Adventure Play Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 13-7-2015 Date SPEELTOESTELLEN...
  • Page 4 3,45 m 0,48 m 2,48 m 0,61 m 0,63 m 0,61 m 2,48 m 0,61 m 3,45 m 0,48 m Grondmarkering Ground level marker >0,40 m 0,90 m Benaming TOE PST 000 020 C Duo Schommel XL Title Tekening Opmerking Adventure Play Drawing Comment...
  • Page 5 Typeplaatje Identification plate Type Progr. Volgnr Bew. Rev. Benaming Opmerking Duo XL Schommel Frame Adventure Play PST - Vogelnest 1,0 m Schommelzitje Schommelzitje Ketting 2,0 m Benaming TOE PST 000 020 C Duo Schommel XL Title Tekening Opmerking Adventure Play Drawing Comment BOER...
  • Page 6 Geleverde delen: Supplied parts: A - bovenbalk met vogelnest A - upper beam with birdnest B - driehoekframe 01 B - triangle frame 01 C - driehoekframe 02 C - triangle frame 02 D - driehoekframe 03 D - triangle frame 03 E - bovenbalk met schommel E - upper beam with swing Bevestiging sets:...
  • Page 7 PSTE000.020 Duo Swing XL LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Adventure Play Product code PSTE000.020 Name of equipment Duo Schommel XL Maximum height of fall...

  • Page 8: Maintenance

    LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear.
  • Page 10 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Paal 14-16 Lengte =2300 Paal 14-16 Lengte =3200 A-Frame 2 Schommels A-Frame 1 Schommels Benaming MOD PST 001 007 C Duo XL Schommel Frame Title Tekening Opmerking Adventure Play Drawing Comment BOER Datum Samenstelling module Assembly module 13-7-2015 Date...
  • Page 11 0,76 m 0,46 m0,58 m 0,72 m > 0,70 m > 0,60 m 0,72 m 1,10 m 0,87 m 0,58 m 0,36 m 0,73 m 1,86 m > 0,60 m > 0,60 m > 0,60 m > 0,60 m > 0,60 m 1,06 m 0,56 m 0,55 m...
  • Page 12 Type Progr. Volgnr Bew. Rev. Benaming Opmerking M12 - RVS A2-70 Borgdopmoer Slotbout M12 x 140 - RVS A2-70 Sluitring M12 - RVS A2-70 RVS A2-70 Schommelscharnier Zitje incl. ketting Zeskantbout M8 x 25 - RVS A2-70 Sluitring M8 - RVS A2-70 Schommelzitje CNK Zwart Schommelketting 5mm...
  • Page 13 Hoek ketting > 60° (ketting niet strak) Opening altijd < 157x89 mm Type Progr. Volgnr Bew. Rev. Benaming Opmerking DOPMOER BORG RVS M10 M10 x 140 - RVS A2-70 Slotbout SLUITRING D-Sluiting 5 mm, RVS A2-70 Scharnier dubbel NORMAAL RVS A2-70 Vogelnest Ø1,0 m balk 2,5 m RVS ketting 5mm...

This manual is also suitable for:

Pste000.020
