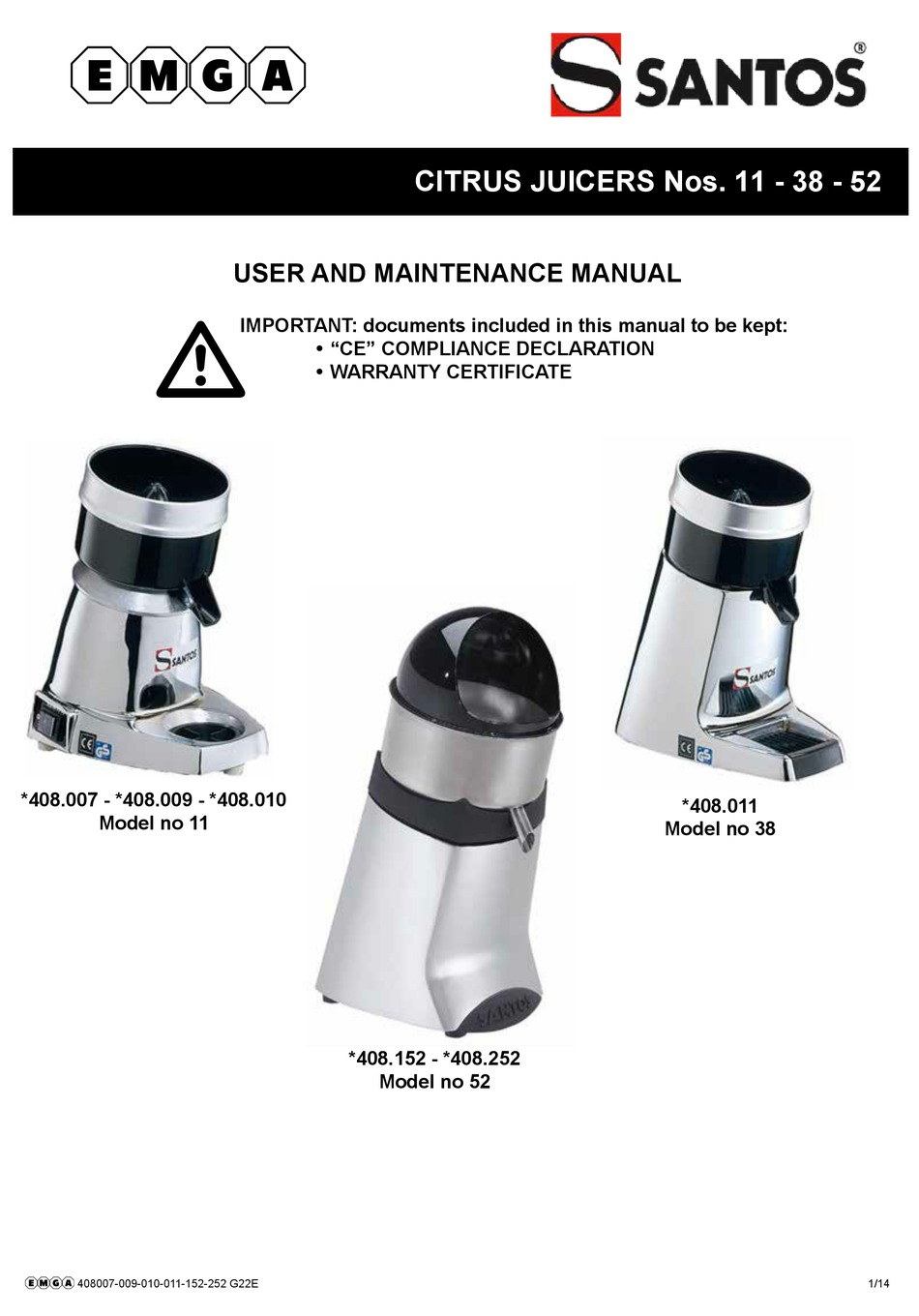

CITRUS JUICERS Nos. 11 - 38 - 52
USER AND MAINTENANCE MANUAL
IMPORTANT: documents included in this manual to be kept:
• "CE" COMPLIANCE DECLARATION
• WARRANTY CERTIFICATE
*408.007 - *408.009 - *408.010
*408.011
Model no 11
Model no 38
*408.152 - *408.252
Model no 52
408007-009-010-011-152-252 G22E
1/14
Advertisement
Table of Contents
Related Manuals for EMGA SANTOS 11
Summary of Contents for EMGA SANTOS 11
- Page 1 CITRUS JUICERS Nos. 11 - 38 - 52 USER AND MAINTENANCE MANUAL IMPORTANT: documents included in this manual to be kept: • “CE” COMPLIANCE DECLARATION • WARRANTY CERTIFICATE *408.007 - *408.009 - *408.010 *408.011 Model no 11 Model no 38 *408.152 - *408.252 Model no 52 408007-009-010-011-152-252 G22E...
-
Page 2: Table Of Contents
SANTOS: Instruction and Maintenance Manual CONTENTS “CE/UE” COMPLIANCE DECLARATION ................3 IMPORTANT SAFEGUARDS ....................4 IMPROPER USE......................4 ELECTRICAL CONNECTION: ..................4 USING FOR THE 1st TIME:.....................5 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE ......5 YOUR CITRUS JUICER Nos. 11- 38 - 52 ................6 Using the CITRUS JUICER ....................6 USING:..........................6 CLEANING:........................7... -
Page 3: Ce/Ue" Compliance Declaration
SANTOS: Instruction and Maintenance Manual “CE/UE” COMPLIANCE DECLARATION THE MANUFACTURER: SANTOS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE declares that the appliance intended for the professional market described below: Description: CITRUS JUICERS Type number: 11, 11C, 38, 38C, 52, 52C complies with: •... -
Page 4: Important Safeguards
SANTOS: Instruction and Maintenance Manual IMPORTANT SAFEGUARDS When using, cleaning or maintaining the machine, always follow these instructions: Read all instructions Note: You will find it easier to understand the next few paragraphs if you refer to the diagrams at the end of this manual. IMPROPER USE 1. -
Page 5: Using For The 1St Time
SANTOS: Instruction and Maintenance Manual CARE: • Before connecting the machine, check that the mains electrical voltage is the same as the voltage for your appliance. Its value is shown: ➢ either on the identification plate under the machine. ➢ or on the identification plate on the last page of this manual. If the power cable is damaged, it should be replaced by a SANTOS approved •... -
Page 6: Your Citrus Juicer Nos. 11- 38 - 52
SANTOS: Instruction and Maintenance Manual YOUR CITRUS JUICER Nos. 11- 38 - 52 • Citrus juicers nos. 11 – 38 – 52 are especially designed for bars, cafés, hotels, restaurants, cocktail bars, institutions, fresh fruit juice bars, etc. • The appliances nos. 11 and 38 are comprised of an aluminum motor unit, a juice bowl and 3 engineered plastic pressing cones (2 pressing cones for model N°38). -
Page 7: Cleaning
SANTOS: Instruction and Maintenance Manual CLEANING: IMPORTANT : In every case, stop the appliance and unplug the appliance’s power cord • (7). It is recommended to clean the appliance as soon as you have finished using it. Cleaning will be easier if you do not wait until the pulp has dried in the bowl (2), on the anti-splash dome (8), the cone (1) or the pulp grating (9). -
Page 8: Troubleshooting
SANTOS: Instruction and Maintenance Manual TROUBLESHOOTING Identifying the cause of appliance stoppage precisely. The appliance does not start: • Check: the mains supply, the condition of the power cord (7). The appliance stops due to motor overheating: (the motor unit is hot) The motor is protected by a built-in thermal cutout. -
Page 9: Technical Specifications
SANTOS: Instruction and Maintenance Manual TECHNICAL SPECIFICATIONS Model N° 11 N° 38 N° 52 Supply voltage 220-240 100-120 220-240 100-120 220-240 100-120 Frequency (Hz) 50/60 50/60 50/60 50/60 50/60 50/60 Motor: Nominal Power input Speed : (rpm) 1450 to 50Hz 1450 to 50Hz 1450 to 50Hz (rpm) -
Page 10: Electrical Wiring Diagrams
SANTOS: Instruction and Maintenance Manual ELECTRICAL WIRING DIAGRAMS Models nos. 11 and 38: Wiring diagram 220-240V 50/60Hz Black Blue Black White Capacitor On / Off Blue White 180 White 180 Brown 1x240 Green/Yellow 1x340 98111 EN 4.3 - 02 2021 10 / 15 www.santos.fr 408007-009-010-011-152-252 G22E... -
Page 11: Wiring Diagram 220-240V 50/60Hz
SANTOS: Instruction and Maintenance Manual Model no 52: Wiring diagram 220-240V 50/60Hz Black Yellow Grey White On / Off Blue White 240 White 240 Brown 2x240 Green/Yellow 408007-009-010-011-152-252 G22E 11/14 11 / 15 98111 EN 4.3 - 02 2021 www.santos.fr... -
Page 12: Wiring Diagram 100-120V 50/60Hz
SANTOS: Instruction and Maintenance Manual Models nos. 11, 38: Wiring diagram 100-120V 50/60Hz Black Yellow White Capacitor On / Off White White 240 White 240 Black 2x240 Green/Yellow 12 / 15 98111 EN 4.3 - 02 2021 www.santos.fr 408007-009-010-011-152-252 G22E 12/14... -
Page 13: Wiring Diagram 100-120V 50/60Hz
SANTOS: Instruction and Maintenance Manual Models nos. 52: Wiring diagram 100-120V 50/60Hz Noir Jaune Rouge Blanc Blanc Blanc Condensateur Marche / Arrêt Blanc Blanc 240 Blanc 240 Noir 2x240 Vert / Jaune 98111 EN 4.3 - 02 2021 13 / 15 www.santos.fr 408007-009-010-011-152-252 G22E 13/14... -
Page 14: Figures
Model N°52 Fig. A Model N°11 or Model N°38 408007-009-010-011-152-252 G22E 14/14...
