Summary of Contents for imenco Spinner Shark

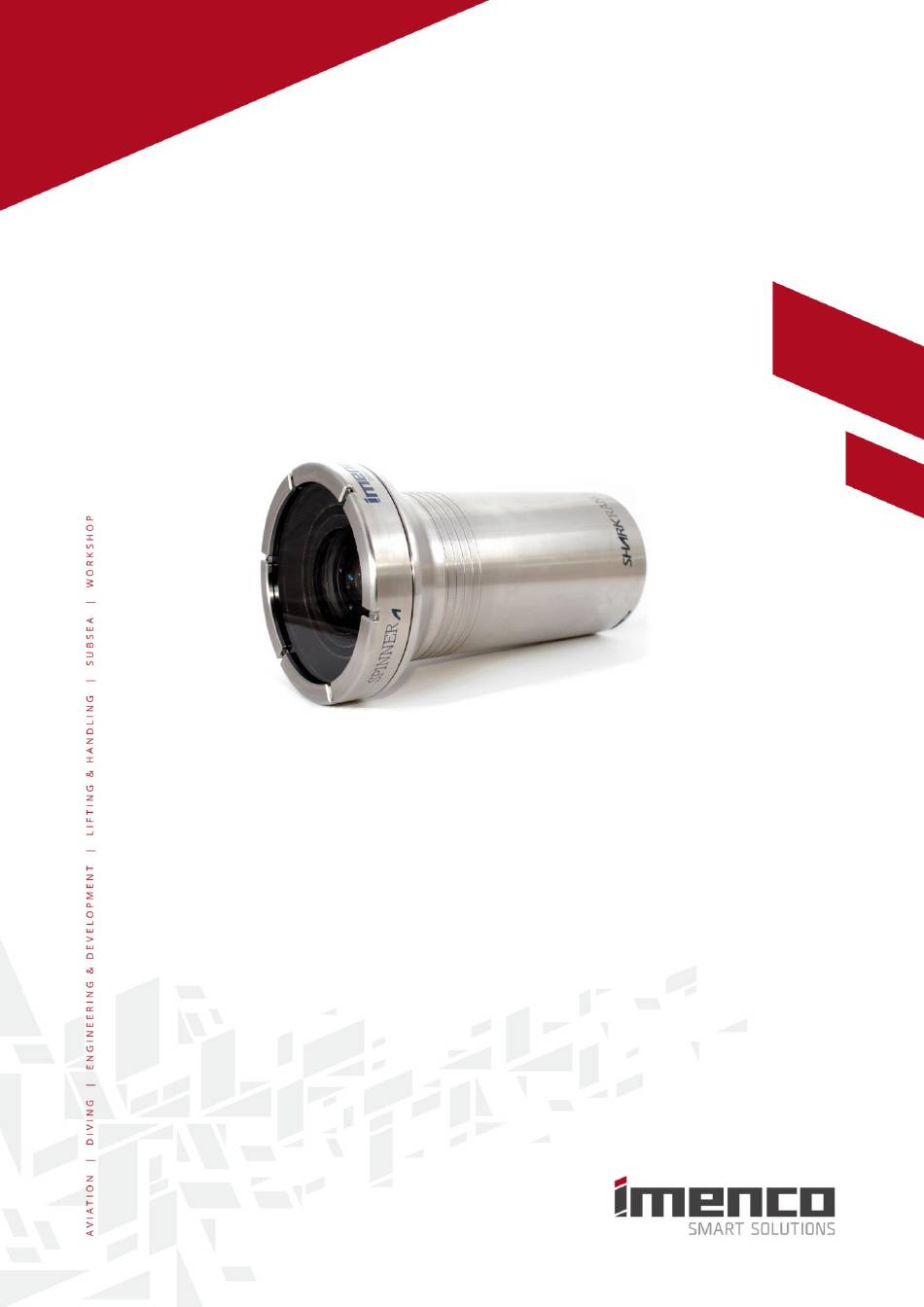

- Page 1 Spinner Shark User manual...
-
Page 2: Table Of Contents
Imenco Imenco Is a major EPC-contractor…………………………… Contents Introduction………………………………………………………………… 2 Safety guidelines………………………………………………..... Before use……………………………………………………………………3 Item Checklist……………………………… Function Test………………………………. Installation…………………………………………………………………… 4 Operation……………………………………………………………………. 5 Maintenance…………………………………………………………………6 Service……………………………………………………………………… 6 Technical Specification…………………………………………………… 7 Camera………………………………………… Lens……………………………………………. Physical properties……………………….. Power…………………………………………. Apendix 1 Conector configuration / Final test... -
Page 3: Introduction
Introduction Thank you for purchasing this Imenco product. The Imenco Spinner Shark Camera HD-SDI camera is designed primarily for ROV operations. With 30x optical zoom, horizontal angel of view 65 and a lens system who gives al good optical, and a low barrel distortion. -
Page 4: Before Use
Make sure your new product is working as intended. Connect your system as further described in this manual, and make sure all function is working. Imenco cannot be held liable for any loss or inconvenience caused by the use of a faulty product. -
Page 5: Installation
Installation Installation of this product should only be performed by qualified personel. Mount the camera on a secure and vibration free surface if possible. To avoid corrosion, and pitting, Keep Spinner camera isolated from other metals, by using Plastic, rubber, or similar material to isolate camera. -
Page 6: Operation
Operation Caution: Turn off power before connecting or disconnecting the power cable. Caution: avoid long term testing in air, as overheating can cause damage to internal components. Connector configurations Study the connector configuration diagram in appendix 1 and make connections accordingly. Operational Temperatures The HD-SDI camera is designed for subsea usage and should not be operated without adequate cooling for long periods of time. -
Page 7: Maintenance
This product contains no user serviceable parts. Service and modifications are to be carried out by Imenco personnel or by Qualified third party with prior approval from Imenco. Failure to comply may result in personal injury, damage to Equipment and loss of warranty. -
Page 8: Technical Specification
Technical specification Camera 1/2.8 Type “Exmor” CMOS Sensor Image device: Image : 1080p Picture elements 2140K pixels Video Output: HD-SDI 1080p/720p 59,94hz/50hz/30hz/25hz Analog SD: VBS Min. illumination 50%norm mode 1,4lx (F1,6 AGC on, 1,30s) ICR-OFF 0.35 lx (1/30 sec, 50%, High Sensitivity mode On) 1.4 lx (1/30 sec, 50%, High Sensitivity mode Off) -
Page 9: Lens
Lens Angle of view (H) Approx. 65 degrees 1080p mode 65° (wide end)to 2,3° (tele end). 720p mode 65° (wide end)to 2,3° (tele end). SD mode 48° (wide end)to 1,7° (tele end). 30× Zoom F= 4.3 mm (WIDE) to 129 mm (TELE), F1.6 to F4.7 Zoom movement speed Optical WIDE –... -
Page 10: Physical Properties
Physical properties Dimensions: Ø: 140mm x L: 234mm (excl connector) Weight air / water: 4,9 kg/2,9 kg Housing Material: Titanium TI-6AL-4V Depth Range: 4,000 MSW Temperature : Operating -5 +50℃ Storage -20 +60 Power Operating voltage 12-36vdc (24vdc 600ma) Current draw (24vdc max 600ma) - Page 12 Appendix 1:...
