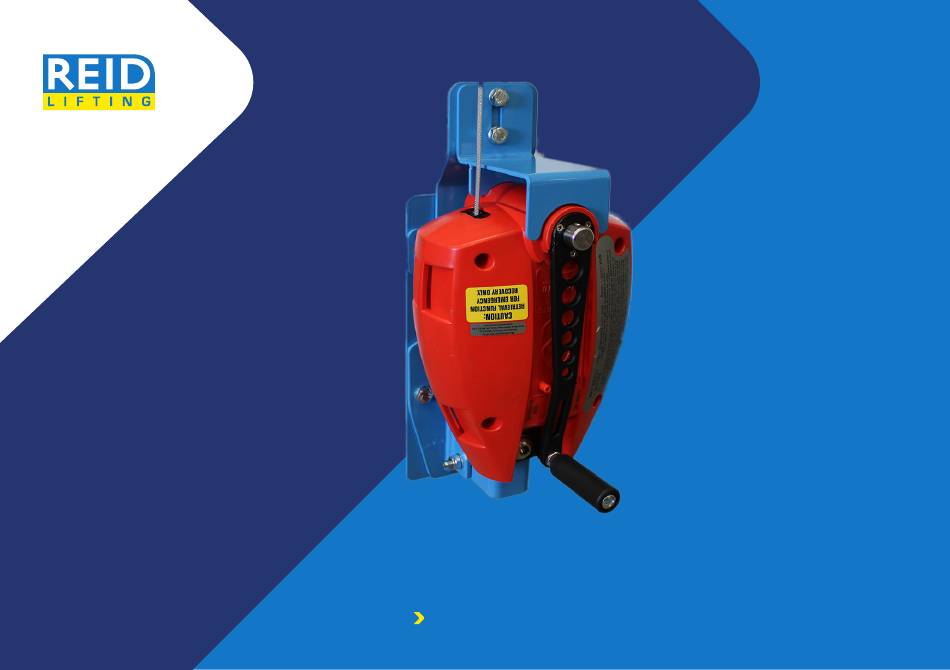

- Page 1 Guardian FABXR Bracket Assembly & Operation Guide REIDLIFTING.COM...
- Page 2 Contents Assembly Instructions Porta Gantry Rapide 500 Porta Gantry Rapide 1000 Porta Gantry; S & M Porta Gantry T Davit Porta Davit 500 Porta Davit Quantum Porta Davit Quantum Single Winch Porta Davit Quantum Double Winch Fitting device into Bracket...
- Page 3 Lightweight. Portable. Safe. Please read the following instructions and guidance notes carefully. These have been designed to aid users in carrying out the correct assembly of the bracket for each of our compatible lifting systems. Systems compatible with this product are: •...
- Page 4 Assembly Instructions: The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007020] for the Porta Gantry Rapide, both Small [S] and Medium [M] frame types.
- Page 5 Guardian FABXR Bracket - [RAWB007020] PORTADAVIT QUANTUM Assembling the PORTA GANTRY RAPIDE 500: Guardian FABXR Bracket The bracket comes with the bolts supplied, as Before attaching the bracket to the device, Remove the bottom bolt from the trap plate. shown above.
- Page 6 Guardian FABXR Bracket - [RAWB007020] Assembling the PORTA GANTRY RAPIDE 500: Guardian FABXR Bracket See Page 25 to view the assembly instructions for the fitting of the device onto the bracket. Re-assemble the bracket to the plate. Prepare the bracket to recieve the device and...
- Page 7 Assembly Instructions: 1000 The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007020] for the Porta Gantry Rapide, both Small [S] and Medium [M] frame types.
- Page 8 Guardian FABXR Bracket - [RAWB007020] PORTADAVIT QUANTUM Assembling the PORTA GANTRY RAPIDE 1000: Guardian FABXR Bracket The bracket comes with the bolts supplied, as Before attaching the bracket to the device, Remove the bottom bolt from the trap plate. shown above.
- Page 9 Assembly Instructions: ; S & M The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007020] for the Porta Gantry, both Small [S] and Medium [M] frame types.
- Page 10 Guardian FABXR Bracket - [RAWB007020] Assembling the PORTA GANTRY: Guardian FABXR Bracket The bracket comes with the bolts supplied, as Before attaching the bracket to the device, Remove the bottom bolt from the trap plate. shown above. dissemble the bracket.
- Page 11 Assembly Instructions See Page 25 to view the assembly instructions for the fitting of the device onto the bracket. Re-assemble the bracket to the plate. Prepare the bracket to receive the device, and remove the bolt from the bottom connector and loosen the top connector.
- Page 12 Assembly Instructions: The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007000] for the Davits & Gantry Winch Column.
- Page 13 Guardian FABXR Bracket - [RAWB007000] Assembling the PORTA GANTRY Intermediate and above sizes: Guardian FABXR Bracket The bracket comes with the pins supplied, as Adjust the width of the wings to 3” (76.2mm) to fit Present the bracket onto the winch column.
- Page 14 Assembly Instructions: The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007000] for the Davits & Gantry Winch Column.
- Page 15 Guardian FABXR Bracket - [RAWB007000] Assembling the T DAVIT: Guardian FABXR Bracket The bracket comes with the pins supplied, as Adjust the width of the wings to 3” (76.2mm) to fit Present to the T-Davit column. shown above. on the T davit column section.
- Page 16 Assembly Instructions: The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007000] for the Davits & Gantry Winch Column.
- Page 17 Guardian FABXR Bracket - [RAWB007000] Assembling the PORTA DAVIT 500: Guardian FABXR Bracket The bracket comes with the pins supplied, as Adjust the width of the wings to 2” (50.8mm) to fit Present the bracket onto the Porta Davit 500 shown above.
- Page 18 Assembly Instructions: The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007000] for the Davits & Gantry Winch Column.
- Page 19 Guardian FABXR Bracket - [RAWB007000] Assembling the PORTA DAVIT QUANTUM: Guardian FABXR Bracket The bracket comes with the bults supplied, as Adjust the width of the wings to 3” (76.2mm) and fit Present the bracket into the Porta Davit Quantum shown above.
- Page 20 Assembly Instructions See Page 25 to view the assembly instructions for the fitting of the device onto the bracket. Prepare the bracket to recieve the device and remove the bolt from the bottom connector and loosen the top connector.
- Page 21 Assembly Instructions: The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007000] for the Davits & Gantry Winch Column.
- Page 22 Guardian FABXR Bracket - [RAWB007000] Assembling the PORTA DAVIT QUANTUM Backstay Single Winch: Guardian FABXR Bracket The bracket comes with the pins supplied, as Adjust the width of the wings to 2 1/2” (63.5mm) Present the bracket into the Porta Davit Quantum shown above.
- Page 23 Assembly Instructions: The following instructions detail the assembly of the Bracket Kit Guardian FABXR [RAWB007010] for the PORTA DAVIT QUANTUM Backstay (Double Winch).
- Page 24 Guardian FABXR Bracket - [RAWB007010] Assembling the PORTA DAVIT QUANTUM Double Winch: Guardian FABXR Bracket The bracket comes with the pins supplied, as Adjust the width of the wings to 2 1/2” (76.2mm) Present the bracket into the Porta Davit Quantum shown above.
- Page 25 Assembly Instructions Fit the Device onto the Bracket Present the device onto the bracket. Insert the bottom bolt to secure the device into The device is now ready to use. position. Adjust the top connector in the suitable position and secure by tightening the bolt.
- Page 26 All information herein is copyright protected by REID Lifting Ltd. All company and product names are Trade Mark and Trade Name protected and all REID Lifting Ltd. Product IPR is protected under Patents, Patents Pending and/or Design Rights.
