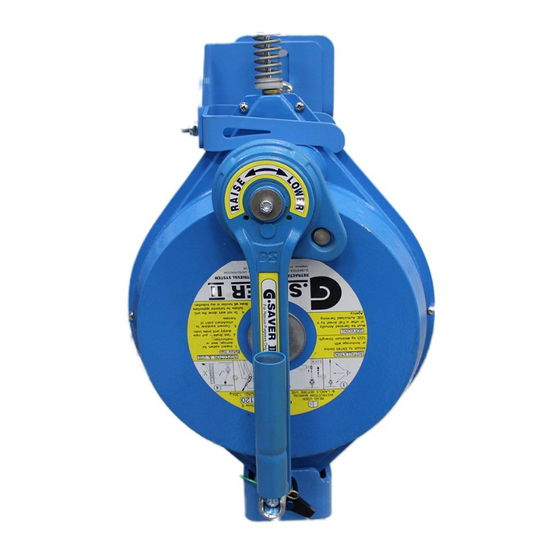

REID LIFTING Globestock G-Saver ll GSE420 Assembly & Operation Manual

Hide thumbs

page of 25

/ 25
Bookmarks

Quick Links

Download this manual

Globestock G-Saver ll Bracket

Assembly & Operation Guide

REIDLIFTING.COM

Need help?

Do you have a question about the Globestock G-Saver ll GSE420 and is the answer not in the manual?

Questions and answers

Summary of Contents for REID LIFTING Globestock G-Saver ll GSE420

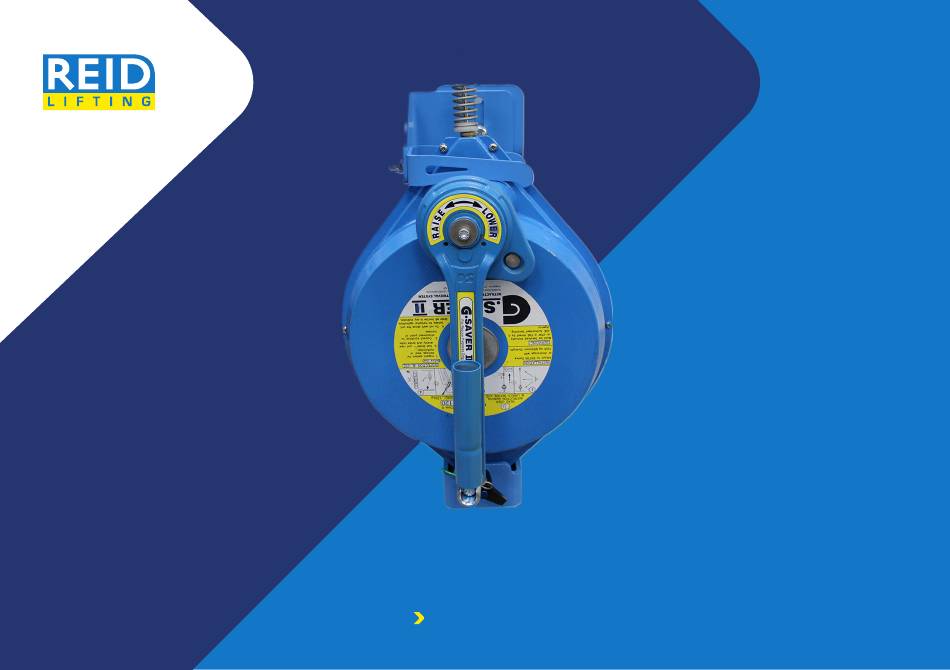

Page 1 Globestock G-Saver ll Bracket Assembly & Operation Guide REIDLIFTING.COM...
Page 2 Contents Assembly Instructions Porta Gantry Rapide 500 Porta Gantry Rapide 1000 Porta Gantry; S & M Porta Gantry T Davit Porta Davit 500 Porta Davit Quantum Porta Davit Quantum Single Winch Porta Davit Quantum Double Winch Fitting device into Bracket...
Page 3 Lightweight. Portable. Safe. Please read the following instructions and guidance notes carefully. These have been designed to aid users in carrying out the correct assembly of the bracket for each of our compatible lifting systems. Systems compatible with this product are: •...
Page 4 Assembly Instructions: The following instructions detail the assembly of the Globestock G-Saver ll GSE420 & GSE434 Bracket [RAWB005020] for the Porta Gantry Rapide, both Small [S] and Medium [M] frame types.
Page 5 Globestock G-Saver ll GSE420 & GSE434 Bracket - [RAWB005020] PORTADAVIT QUANTUM Assembling the PORTA GANTRY RAPIDE 500: Globestock G-Saver ll GSE420 & GSE434 Bracket The bracket comes with the bolts supplied, as Remove the bottom bolt from the trap plate.
Page 6 Assembly Instructions: 1000 The following instructions detail the assembly of the Globestock G-Saver ll Bracket GSE420 & GSE434 [RAWB005020] for the Porta Gantry Rapide, both Small [S] and Medium [M] frame types.
Page 7 Globestock G-Saver ll GSE420 & GSE434 Bracket - [RAWB005020] PORTADAVIT QUANTUM Assembling the PORTA GANTRY RAPIDE 1000: Globestock G-Saver ll GSE420 & GSE434 Bracket The bracket comes with the bolts supplied, as Remove the bottom bolt from the trap plate.
Page 8 Assembly Instructions: ; S & M The following instructions detail the assembly of the Globestock G-Saver ll Bracket GSE420 & GSE434 [RAWB005020] for the Porta Gantry, both Small [S] and Medium [M] frame types.
Page 9 Globestock G-Saver ll GSE420 & GSE434 Bracket - [RAWB005020] Assembling the PORTA GANTRY: Globestock G-Saver ll GSE420 & GSE434 Bracket The bracket comes with the bolts supplied, as Before attaching the bracket to the device, Remove the bottom bolt from the trap plate.
Page 10 Assembly Instructions See Page 23 to view the assembly instructions for the fitting of the device onto the bracket. Re-assemble the bracket to the plate. Prepare the bracket to receive the device, make sure all the bolts for the bottom connector have been tightened.
Page 11 Assembly Instructions: The following instructions detail the assembly of the Globestock G-Saver ll Bracket GSE420 & GSE434 [RAWB005000] for the Davits & Gantry Winch Column.
Page 12 Globestock G-Saver ll GSE420 & GSE434 Bracket - [RAWB005000] Assembling the PORTA GANTRY Intermediate and above sizes: Globestock G-Saver ll GSE420 & GSE434 The bracket comes with the pins supplied, as Adjust the width of the wings to 3” (76.2mm) to fit Present the bracket onto the winch column.
Page 13 Assembly Instructions: The following instructions detail the assembly of the Globestock G-Saver ll Bracket GSE420 & GSE434 [RAWB005000] for the Davits & Gantry Winch Column.
Page 14 Globestock G-Saver ll GSE420 & GSE434 Bracket - [RAWB005000] Assembling the T DAVIT: Globestock G-Saver ll GSE420 & GSE434 The bracket comes with the pins supplied, as Adjust the width of the wings to 3” (76.2mm) to fit Present to the T-Davit column.
Page 15 Assembly Instructions: The following instructions detail the assembly of the Globestock G-Saver ll Bracket GSE420 & GSE434 [RAWB005000] for the Davits & Gantry Winch Column.
Page 16 Globestock G-Saver ll GSE420 & GSE434 Bracket - [RAWB005000] Assembling the PORTA DAVIT 500: Globestock G-Saver ll GSE420 & GSE434 The bracket comes with the pins supplied, as Adjust the width of the wings to 2” (50.8mm) to fit Present the bracket onto the Porta Davit 500 shown above.
Page 17 Assembly Instructions: The following instructions detail the assembly of the Globestock G-Saver ll Bracket GSE420 & GSE434 [RAWB005000] for the Davits & Gantry Winch Column.
Page 18 Globestock G-Saver ll GSE420 & GSE434 Bracket - [RAWB005000] Assembling the PORTA DAVIT QUANTUM: Globestock G-Saver ll GSE420 & GSE434 The bracket comes with the pins supplied, as Adjust the width of the wings to 3” (76.2mm) and fit Present the bracket into the Porta Davit Quantum shown above.
Page 19 Assembly Instructions See Page 25 to view the assembly instructions for the fitting of the device onto the bracket. Prepare the bracket to recieve the device and remove the bolt from the bottom connector and loosen the top connector.
Page 20 Assembly Instructions: The following instructions detail the assembly of the Globestock G-Saver ll Bracket GSE420 & GSE434 [RAWB005000] for the Davits & Gantry Winch Column.
Page 21 Globestock G-Saver ll GSE420 & GSE434 Bracket - [RAWB005000] Assembling the PORTA DAVIT QUANTUM Backstay Single Winch: Globestock G-Saver ll GSE420 & GSE434 The bracket comes with the pins supplied, as Adjust the width of the wings to 2 1/2” (63.5mm) Present the bracket into the Porta Davit Quantum shown above.
Page 22 Assembly Instructions: The following instructions detail the assembly of the Globestock G-Saver ll Bracket GSE420 & GSE434 [RAWB005010] for the PORTA DAVIT QUANTUM Backstay (Double Winch).
Page 23 Globestock G-Saver ll GSE420 & GSE434 Bracket - [RAWB005010] Assembling the PORTA DAVIT QUANTUM Double Winch: Globestock G-Saver ll GSE420 & GSE434 The bracket comes with the pins supplied, as Adjust the width of the wings to 2 1/2” (76.2mm) Present the bracket into the Porta Davit Quantum shown above.
Page 24 Assembly Instructions Fit the Device onto the Bracket Present the device onto the bracket. Insert the bottom bolt to secure the device into The device is now ready to use. position. Adjust the top connector in the suitable position and secure by tightening the bolt.
Page 25 All information herein is copyright protected by REID Lifting Ltd. All company and product names are Trade Mark and Trade Name protected and all REID Lifting Ltd. Product IPR is protected under Patents, Patents Pending and/or Design Rights.
