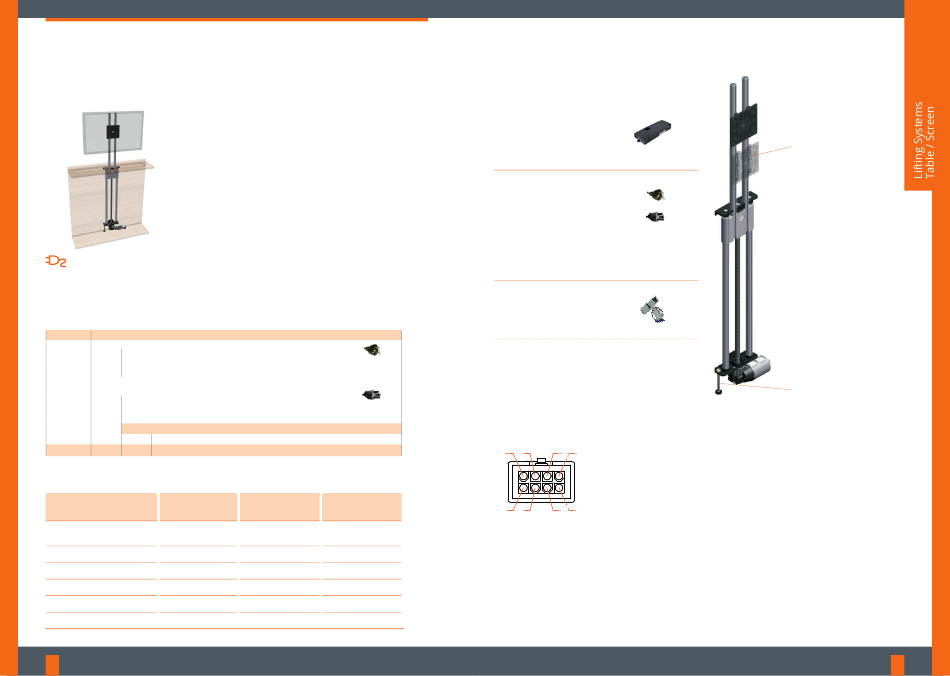

Ketterer Ket-Screen Lift S 4701 Manual

Monitor / TV-Lift Ket-Screen Lift S 4701

Description

Our TV lift allows you to determine when your screen should be visible –
quickly and quietly at the press of a button.
Perfectly integrated in furniture, interior walls or ceilings, fl at screens or
monitors remain concealed until you need them.
Whether in the fi eld of education, for business or personal use
Ket-Screen convinces with its stability, ultra compactness and high-quality
workmanship.
For monitors up to 24'' (screen diagonal 60 cm) and weights up to 25 kg.

Special features

▪ High lifting speed
▪ Simple installation for diff erent assembly situations
▪ Can be supplied with any stroke up to 750 mm
▪ Very low noise level allows applications in noise
sensitive areas
▪ With integrated motor cable (1.2 m), see also pin assignment
Variante key
4701.00 Lift Small
Power supply EU/ 230 V & power cable with 3-pin Schuko plug
LS03 Standard: VESA standard fastening plate
LS05 Short: VESA standard fastening plate, min. installation length
LS07 Basic : Screen fi xing on the carriage of the linear unit
Power supply USA/ 210 V & power cable with 3-pin plug
LS13 Standard: VESA standard fastening plate
LS15 Short: VESA standard fastening plate, min. installation length
LS17 Basic Screen fi xing on the carriage of the linear unit
:
Hub in mm
HXXXX customized variablel
4701.00- LS03
H0600

Technical data

Ket-Screen Lift Small Standard
Stroke customer specifi cation
max. 750 mm
Retracted length Stroke + 219 mm
Maximum load
250 N
Maximum screen size 24"
Movement speed 90 mm/s
Item number 4701.00-LSX3HXXXX
1
Example
Short Basic
customer specifi cation customer specifi cation
max. 750 mm max. 750 mm
Stroke + 157 mm Stroke + 215 mm
250 N 250 N
24" 24"
90 mm/s 90 mm/s
4701.00-LSX5HXXXX 4701.00-LSX7HXXXX
4701.75-06/20220401
TV-Lift „Ket-Screen Lift S" Set consisting of:
1x Control box Compact-3 in required power supply
▪ Controlled via manual switch
▪ Connection for anti-pinch system
▪ Dimensions: 264 x 103 x 37 mm
1x Power cable
▪ 3-pin Schuko - Europe (for variants LS0X)
or alternatively
▪ 3-pin plug - USA (for variants LS1X)
Further power cables on the „Compact Controller" page in
the „Accessories" chapter
1x RF remote control set
▪ Consisting of RF reseiver, remote
control (including battery) and manual
Hand control with cable can be ordered separately
on the page "Hand controls and motor cables"
in the "Accessories" chapter.

Pin assignment

5 6 7 8
4. Motor black -
8. Motor blue +
2. Hall sensor red +5V
1. Hall sensor violet, output 1
3, 7. Hall sensor black -
5. Hall sensor green, output 2
4 3 2 1

Technical notes

Safety instructions
▪
Please take attention to crushing points
when installing in a housing.
www.ketterer.de
Optional:
Additional
mounting plate
incl. screws for mounting
of the push rods
Attention:
The screws need to be se-
cured with thread lock fluid!
Item number: 4701.35-0007
Adjustment screw
2 pieces incl. nut
adjustment range:
Max. 75 mm
▪ Attention: In case of repair the TV lift unit must
always be returned together with the control unit
2
