DA68-01574A REV ( 0.0 )

Advertisement

Table of Contents
loading

Related Manuals for Samsung RT41E

Summary of Contents for Samsung RT41E

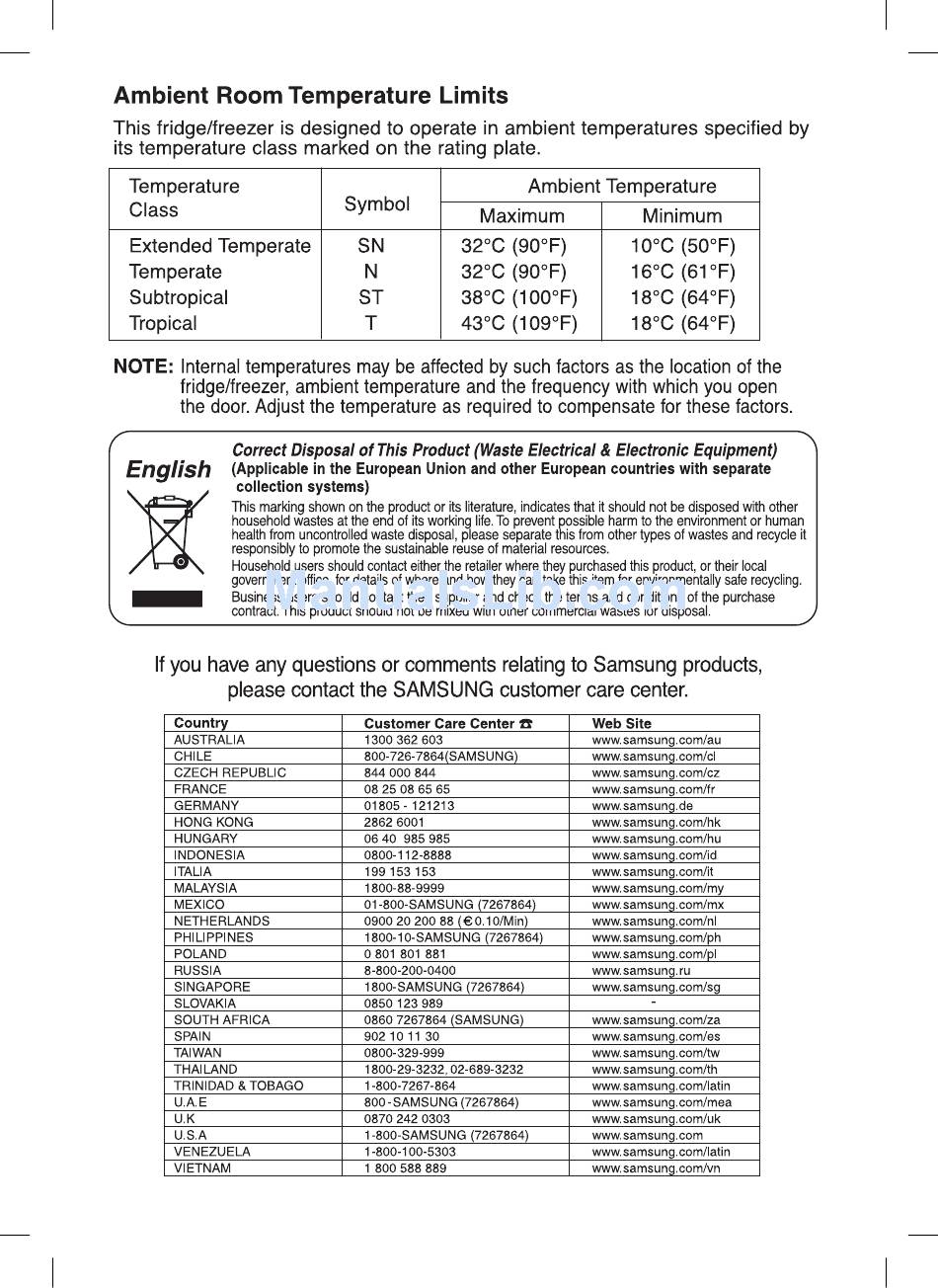

  • Page 1 DA68-01574A REV ( 0.0 )
  • Page 2 REFRIGERATOR RT45M / RT41M / RT45 / RT41E OWNER’S INSTRUCTIONS Before operating the unit, please read this manual thoroughly, and retain for future reference.

  • Page 3: Features

    FEATURES Large freezer storage area. - Stores large quantities of food in the freezer. Jumbo storage guard. - Holds large bottles securely. Adjustable storage guards. - Position them for your convenience and according to the height of your food containers. Silver nano deodorizer.

  • Page 4: Table Of Contents

    REPLACING THE LAMP BASIC PREPARATION - Before using - Storing food STORING FOOD IN THE REFRIGERATOR OR FREEZER HOW TO USE - Temperature control(El e ctroni c model ) 13~14 - Temperature control(Mechani c al model ) - To make ice cubes...

  • Page 5: Safety Installation 3~5

    Children should be supervised to ensure that they do not play with the appliance. If the refrigerator is not to be used for vacation or a long period of time, make refrigerator empty and pull the power plug.

  • Page 6: How To Connect Electricity

    • The refrigerant used in the refrigerator/freezer and the gases in the insulation material require special disposal procedures. Ensure that none of the pipes on the back of the appliance are damaged prior to disposal.
  • Page 7 The refrigerator must be grounded. • You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator. Never use gas pipes, telephone lines or other potential lightening rods as ground.

  • Page 8: Leveling The Appliance

    Standtable : Standtable is used as base of refrigerator in Thailand NOTE and some country, when use Standtable we can not turn the adjusting leg and there is no Foot Front in this model.

  • Page 9: Installation

    If your refrigerator is going into a recessed area, allow at least 300mm clearance above the refrigerator. For personal safety, properly ground this appliance. Do not ground this refrigerator with a telephone line, gas pipe, etc.

  • Page 10: Cautions While Using

    - Do not allow unattended children to play in or around refrigerators and other large appliances. The child may get hurt or they could damage the appliance. - To avoid damage to the refrigerator or injury to the child, do not allow children to hang on the refrigerator door.

  • Page 11: Parts

    Bottle Storage Guards Storage Guard Vegetable Bin Air Shower Freezer Compartment Temperature Control Moving tray ice Freezer Shelf Chiller Compartment Refrigerator Compartment Temperature Control i-Cooling Shelf- Tempered glass/ wire Lamp Adjustable Storage Guards Siver nano deodorizer Bottle Storage Guards Storage Guard...

  • Page 12: Replacing The Lamp

    NOTE : Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. But should the power failure last more than 24hours, remove all frozen food.

  • Page 13: Storing Food

    Allow hot food and drinks to cool to room temperature before placing them in the refrigerator or freezer. Allow sufficient room between food to help the circulation of cool air. Place liquid at the front of the refrigerator to avoid freezing.

  • Page 14: Refrigerator Or Freezer

    NOTE : Your appliance is frost free, which means there is no need to manually defrost your appliance, as this will be carried out automatically. STORING IN THE REFRIGERATOR OR FREEZER NOTE : To get more space, you can store food with tray ice removed since it does not effect thermal and mechanical characteristics.

  • Page 15: How To Use

    Temperature control Operation Button : appliance completely on or off. • Do not dissemble the refrigerator with the operation off. - It may cause electric shocks or other damages. Freezer : Default : colder Refrigerator : Default : colder NOTE : On coldest-colder, both coldest and colder are lit.

  • Page 16: Super Freeze

    - You must empty the refrigerator before pressing the Vacation button. - There is no need to disconnect the refrigerator from the power supply if you will be away for less than three weeks. But remove all the food if you are going away for three weeks or more, unplug the refrigerator and clean, rinse and dry it.

  • Page 17: Temperature Control (Mechanical Model)

    Freeze Room Freezer : Adjust the proper temperature by sliding the temperature control knob to the left or right. Refrigerator Room Refrigerator : Adjust the proper temperature by turning the temperature control dial to “cold” or “coldest”. ( Mechanical model )

  • Page 19: Chiller Compartment

    Chiller Compartment This is compartment helps preserve the taste of food and prolongs its freshness by freezing the surface of the food only. Use the chiller for storing cheese, meat, snacks, fish or any food to be used soon. Vegetable Bin This compartment maintains the moisture and freshness of vegetables.

  • Page 20: Cleaning The Refrigerator

    CLEANING THE REFRIGERATOR Evaporation Slots in Freezer Wipe the slot area with a clean, dry, soft cloth. Interior Parts After removing all the shelves, wipe the appliance clean using a clean, soft cloth dampened with warm water and a mild detergent.

  • Page 21: Freezer Shelf

    - Assemble in reverse order. Refrigerator Shelf - Pull the shelf towards you until it meets the stopper. - Tilt the front of the shelf up and continue pulling the shelf out.
  • Page 22 ; it fits in only one position. ) Vegetable Bin and Cover - Pull the vegetable bin towards you and out of the refrigerator. - Lift the cover up and pull it out of the refrigerator.

  • Page 23: Before Calling Service

    BEFORE CALLING SERVICE When the Refrigerator / Freezer is not operating or the food does not freeze sufficiently: - Is the plug properly connected? - Is the power fuse blown? - Are the temperature controls set properly(not set to "COLD")?
  • Page 24 When you notice a foul door inside the appliance: - Do you have spoiled food in the refrigerator? - Is all food stored in sealed containers? - Has fluid collected in the bottom of the vegetable bin?

This manual is also suitable for:

Rt41mRt45mRt45Rt45e
