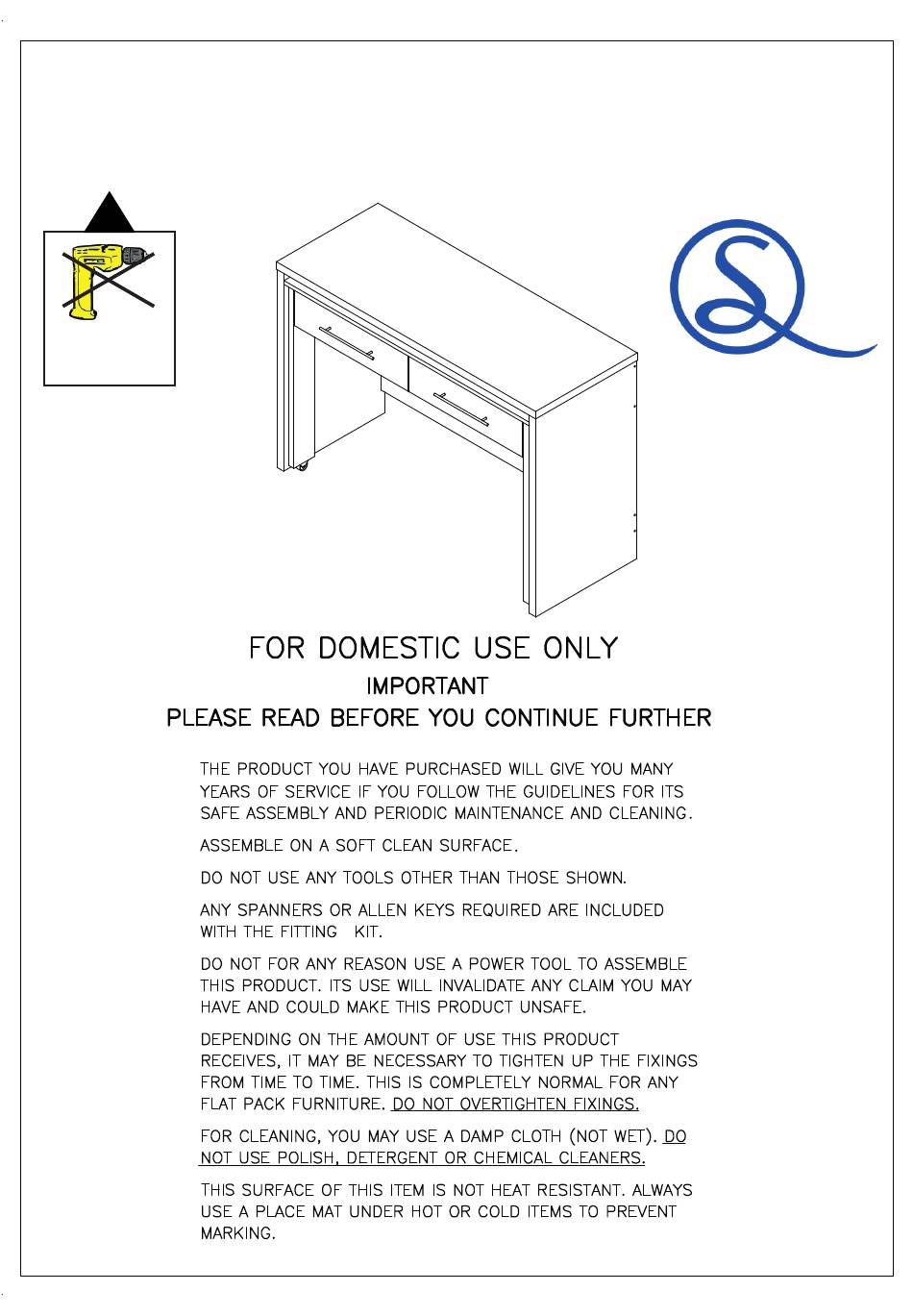

- Page 1 SEC/SH/09/21/ZF1 WHITE GLOSS SEVILLE 2 DRAWER SLIDER DESK ASSEMBLY INSTRUCTIONS DO NOT Page 01...
- Page 2 SEC/SH/09/21/ZF1 PART LIST Part Number Part Code Part Description Quantity Carton S500-501-013-ZF1-01 Top Panel (Drawer) S500-501-013-ZF1-02 Centre Support Panel S500-501-013-ZF1-03 Back Top Crossbar S500-501-013-ZF1-04 Back Bo om Crossbar S500-501-013-ZF1-05 Le Drawer Side S500-501-013-ZF1-06 Right Drawer Side S500-501-013-ZF1-07 Drawer Back Drawer Support S500-501-013-ZF1-08 S500-501-013-ZF1-09 Right Drawer Front...
- Page 3 SEC/SH/09/21/ZF1 HARDWARE LIST Part Name Wooden Dowel (6x25mm) 65mm Screw (4x65mm) 4x65mm 38mm Screw (4x38mm) 4x38mm 14mm Screw (3.5x14mm) 3.5x14mm Cam Bolt (8032T) Cam Nut (1512) 10" Handle (192mm) 20mm Handle Screw x2set 14” Drawer Slide Extension Drawer Slide x1set ( 35x390mm ) Screw Cover ( Sticker 12mm )
- Page 4 SEC/SH/09/21/ZF1 STEP 1 Last in the 6 small hole 2nd small hole PARTS REQUIRED BACK FRONT 14 - LEFT SIDE PANEL 15 - RIGHT SIDE PANEL HARDWARE REQUIRED 3.5x14mm TOOLS REQUIRED Switch Button switch button FRONT BACK STEP 2 PARTS REQUIRED 14 - LEFT SIDE PANEL 15 -...
- Page 5 SEC/SH/09/21/ZF1 STEP 3 PARTS REQUIRED BACK TOP CROSSBAR BACK BOTTOM CROSSBAR 13 - TOP PANEL HARDWARE REQUIRED TOOLS REQUIRED STEP 4 PARTS REQUIRED BACK TOP CROSSBAR BACK BOTTOM CROSSBAR 4x65mm 14 - LEFT SIDE PANEL 15 - RIGHT SIDE PANEL HARDWARE REQUIRED TOOLS REQUIRED Page 05...
- Page 6 SEC/SH/09/21/ZF1 STEP 5 When Fitting Cams Ensure the starting position is correct before you insert the connecting bolt, turn clockwise until secure. PARTS REQUIRED 13 - TOP PANEL (DRAWER) HARDWARE REQUIRED TOOLS REQUIRED STEP 6 PARTS REQUIRED 11 - RIGHT SIDE PANEL 12 - LEFT SIDE PANEL 19 -...
- Page 7 SEC/SH/09/21/ZF1 STEP 7 PARTS REQUIRED 11 - RIGHT SIDE PANEL 12 - LEFT SIDE PANEL 19 - RIGHT PANEL 20 - LEFT PANEL HARDWARE REQUIRED TOOLS REQUIRED STEP 8 PARTS REQUIRED HARDWARE REQUIRED 3.5x14mm TOOLS REQUIRED Page 07...
- Page 8 SEC/SH/09/21/ZF1 STEP 9 To Assembly the three part drawer slide, please follow the steps below Switch Button 1st hole 3rd hole PARTS REQUIRED FRONT BACK switch button HARDWARE REQUIRED 4x38mm Switch Button TOOLS REQUIRED 4x38mm STEP 10 PARTS REQUIRED CENTRE SUPPORT PANEL HARDWARE REQUIRED 4x38mm TOOLS REQUIRED...
- Page 9 SEC/SH/09/21/ZF1 STEP 11 When Fitting Cams Ensure the starting position is correct before you insert the connecting bolt, turn clockwise until secure. PARTS REQUIRED CENTRE SUPPORT PANEL SHELF PANEL 4x65mm HARDWARE REQUIRED TOOLS REQUIRED STEP 12 PARTS REQUIRED 4x65mm HARDWARE REQUIRED TOOLS REQUIRED Page 09...
- Page 10 SEC/SH/09/21/ZF1 STEP 13 PARTS REQUIRED TOP PANEL(DRAWER) HARDWARE REQUIRED TOOLS REQUIRED STEP 14 PARTS REQUIRED TOP PANEL HARDWARE REQUIRED TOOLS REQUIRED Page 10...
- Page 11 SEC/SH/09/21/ZF1 STEP 15 PARTS REQUIRED 17 - BACK PANEL HARDWARE REQUIRED TOOLS REQUIRED STEP 16 PARTS REQUIRED HARDWARE REQUIRED TOOLS REQUIRED Page 11...
- Page 12 SEC/SH/09/21/ZF1 STEP 17 PARTS REQUIRED LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER SUPPORT HARDWARE REQUIRED TOOLS REQUIRED STEP 18 PARTS REQUIRED LEFT DRAWER SIDE RIGHT DRAWER SIDE 4x38mm DRAWER BACK DRAWER SUPPORT HARDWARE REQUIRED TOOLS REQUIRED Page 12...
- Page 13 SEC/SH/09/21/ZF1 STEP 19 PARTS REQUIRED 18 - DRAWER BASE HARDWARE REQUIRED TOOLS REQUIRED STEP 20 PARTS REQUIRED RIGHT DRAWER FRONT 10 - LEFT DRAWER FRONT HARDWARE REQUIRED TOOLS REQUIRED Page 13...
- Page 14 SEC/SH/09/21/ZF1 STEP 21 When Fitting Cams Ensure the starting position is correct before you insert the connecting bolt, turn clockwise until secure. PARTS REQUIRED RIGHT DRAWER FRONT 10 - LEFT DRAWER FRONT HARDWARE REQUIRED TOOLS REQUIRED STEP 22 PARTS REQUIRED HARDWARE REQUIRED 3.5x14mm TOOLS REQUIRED...
- Page 15 SEC/SH/09/21/ZF1 STEP 23 PARTS REQUIRED HARDWARE REQUIRED TOOLS REQUIRED STEP 24 PARTS REQUIRED HARDWARE REQUIRED TOOLS REQUIRED Page 15...
- Page 16 SEC/SH/09/21/ZF1 STEP 25 PARTS REQUIRED HARDWARE REQUIRED TOOLS REQUIRED STEP 26 PARTS REQUIRED HARDWARE REQUIRED TOOLS REQUIRED Page 16...
