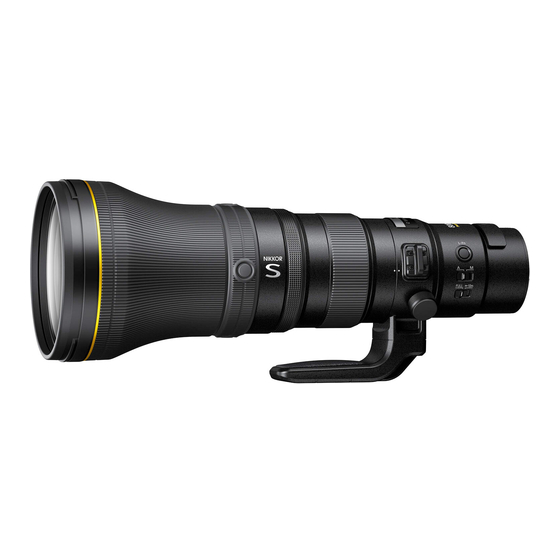

NIKKOR Z 800mm f/6.3 VR S
Reference Guide
• Read this document thoroughly before using the product.
• To ensure proper use of the product, be sure to read "For Your Safety" (page 5).
• After reading this document, keep it readily accessible for future reference.
© 2022 Nikon Corporation
SB2C01(11)
En
7MMA8811-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NIKKOR Z 800mm f/6.3 VR S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nikon NIKKOR Z 800mm f/6.3 VR S

Summary of Contents for Nikon NIKKOR Z 800mm f/6.3 VR S

  • Page 1 NIKKOR Z 800mm f/6.3 VR S Reference Guide • Read this document thoroughly before using the product. • To ensure proper use of the product, be sure to read “For Your Safety” (page 5). • After reading this document, keep it readily accessible for future reference.

  • Page 2: Table Of Contents

    Table of Contents Introduction........... . . Before You Begin.
  • Page 3 Specifications............45 Notices.

  • Page 4: Introduction

    The latest version of the camera firmware can be downloaded from the Nikon Download Center at the URL below. https://downloadcenter.nikonimglib.com/ No reproduction in any form of this document, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

  • Page 5: For Your Safety

    For Your Safety To prevent damage to property or injury to yourself or to others, read “For Your Safety” in its entirety before using this product. After reading these safety instructions, keep them readily accessible for future reference. WARNING: Failure to observe the precautions marked with this icon could result in death or severe injury.
  • Page 6 WARNING Do not use this product in the presence of flammable dust or gas such as propane, gasoline or aerosols. Failure to observe this precaution could result in explosion or fire. Do not directly view the sun or other bright light source through the lens. Failure to observe this precaution could result in visual impairment.
  • Page 7 CAUTION Do not leave the lens pointed at the sun or other strong light sources. Light focused by the lens could cause fire or damage to product’s internal parts. When shooting backlit subjects, keep the sun well out of the frame. Sunlight focused into the camera when the sun is close to the frame could cause fire.

  • Page 8: Using The Lens

    Using the Lens Parts of the Lens: Names and Functions The parts of the lens are listed below. Lens hood mounting mark Use when attaching the lens hood. “Attaching and Removing the Lens Hood” (p.24) Control ring Rotate to adjust a setting such as [Aperture] or [Exposure compensation] assigned using the camera.
  • Page 9 Focus ring Use for manual focus. • When focusing using autofocus, you can adjust focus manually by rotating the ring while the shutter-release button is pressed halfway. Tripod collar ring The camera can be rotated between “wide” and “tall” orientations when a tripod is attached to the tripod collar.
  • Page 10 Slip-in filter holder For use with optional 46 mm screw-on filters. “Filters” (p.33) Slip-in filter holder tab Use when inserting or removing the filter holder. “Filters” (p.33) Parts of the Lens: Names and Functions...
  • Page 11 8 9 10 Lens mounting mark Use when mounting the lens on the camera. “Attachment and Removal” (p.19) Rubber lens-mount gasket Helps prevent the ingress of water droplets or dust along the surfaces where the lens and camera meet when the lens is mounted on the camera.
  • Page 12 L-Fn2 buttons Press to perform a function assigned using the camera. For more information, see the description of [Custom control assignment], [Custom controls], or [Custom controls (shooting)] in the documentation provided with the camera. There are four buttons positioned around the lens at 90º...
  • Page 13 Tripod collar ring attachment screw Fix the tripod collar ring in place. “Using the Tripod Collar Ring” (p.30) Security slot (for anti-theft cable) Attach a third-party anti-theft cable. For more information, see the documentation provided with the cable. Strap eyelets For use when attaching a strap.
  • Page 14 Focus limit switch Choose the autofocus range. • FULL: Choose to focus on subjects at any distance between 5 m (16.41 ft) and ∞. • ∞ – 10 m: Focus is limited to distances of 10 m (32.81 ft) and more. Select this option for faster focusing if your subject will always be at distance of at least 10 m (32.81 ft).
  • Page 15 [Recall focus position] has been assigned (“memory recall”). “Memory Recall” (p.28) Tripod collar Attach a tripod. For information on removing the tripod collar, contact a Nikon-authorized service representative. “Using the Tripod Collar Ring” (p.30) Parts of the Lens: Names and Functions...
  • Page 16 Lens hood Lens hoods block stray light that would otherwise cause flare or ghosting. They also serve to protect the lens. “Attaching and Removing the Lens Hood” (p.24) Lens hood alignment mark Use when attaching the lens hood. “Attaching and Removing the Lens Hood” (p.24) Lens hood lock mark Use when attaching the lens hood.
  • Page 17 Slip-on lens cap (front cap) • Be sure to reattach the cap when transporting the lens or when transporting the camera with the lens attached. • Reverse the lens hood before using the slip-on lens cap. “Attaching and Removing the Lens Hood” (p.24) Parts of the Lens: Names and Functions...
  • Page 18 Lens cap (rear cap) Parts of the Lens: Names and Functions...

  • Page 19: Attachment And Removal

    Attachment and Removal Attaching the Lens Turn the camera off, remove the body cap, and detach the rear lens cap. Attachment and Removal...
  • Page 20 Position the lens on the camera body, keeping the mounting mark on the lens aligned with the mounting mark on the camera body (q), and then rotate the lens counterclockwise (w) until it clicks into place. Attachment and Removal...
  • Page 21 When the Lens Is Mounted on a Tripod: Attaching the Camera Position the camera on the lens, keeping the mounting mark on the lens aligned with the mounting mark on the camera body (q), and then rotate the camera clockwise until the lens clicks into place (w). Attachment and Removal...
  • Page 22 Removing the Lens Turn the camera off. Press and hold the lens release button (q) while turning the lens clockwise (w). Attachment and Removal...
  • Page 23 When the Lens Is Mounted on a Tripod: Removing the Camera Press and hold the lens release button (q) while turning the camera counterclockwise (w). Attachment and Removal...

  • Page 24: Attaching And Removing The Lens Hood

    Attaching and Removing the Lens Hood Attaching the Lens Hood • Align the lens hood mounting mark with the lens hood alignment mark (q) and then rotate the lens hood (w) until the mounting mark is aligned with the lens hood lock mark (e).
  • Page 25 • The hood can be reversed and mounted on the lens when not in use. Attaching and Removing the Lens Hood...
  • Page 26 Removing the Lens Hood • Slide the lens hood release until it clicks (q), rotate the hood as shown (w) until the lens hood alignment mark aligns with the lens hood mounting mark, and remove the hood (e). Lens hood release Lens hood alignment mark Lens hood mounting mark •...

  • Page 27: Attaching A Strap

    Attaching a Strap To attach a strap, follow the steps below. • If the strap is not attached correctly, the lens could fall, causing injury. • Use a lens strap when carrying the camera with the lens attached. Using a strap attached to the camera alone could damage the strap or the mounts on the camera or lens, causing the camera or lens to fall.

  • Page 28: Memory Recall

    Memory Recall Save a frequently-used focus position to the lens. The saved position can then be quickly recalled. Compatible Cameras Memory recall is available only when the lens is mounted on a compatible camera. The cameras compatible with this feature (as of April 21, 2022) are the Z 9, the Z 7II, and the Z 6II.
  • Page 29 Using Stored Focus Positions (Memory Recall) The saved focus position will be restored while the control to which [Recall focus position] has been assigned via [Custom controls] or [Custom controls (shooting)] is pressed. Release the control to resume normal auto or manual focus.

  • Page 30: Using The Tripod Collar Ring

    Using the Tripod Collar Ring Attach tripods to the lens tripod collar, not to the camera. Attaching tripods to the lens tripod collar rather than to the camera allows the camera to be rotated as described below to take pictures in "tall" or "wide" orientation while a tripod is attached.
  • Page 31 Rotate the camera, using the rotation indices for reference (w). Tighten the tripod collar ring attachment screw (e). Using the Tripod Collar Ring...

  • Page 32: Vibration Reduction (Vr)

    Vibration Reduction (VR) The lens supports vibration reduction. Vibration reduction settings can be adjusted from the camera. See the documentation provided with the camera for details. Vibration reduction allows shutter speeds slower than would otherwise be the case, expanding the range of shutter speeds available. Vibration Reduction •...

  • Page 33: Filters

    Filters The lens is designed for use without filters, and can be used without a filter inserted under most conditions. In situations in which a filter is required, an optional 46 mm screw-on filter can be inserted in the slip-in filter holder as described below.
  • Page 34 Press the points on either side of the slip-in filter holder and open the cover. Insert a 46 mm screw-on filter. Depending on their shape, some filters cannot be used with the slip-in filter holder. Use filters that fit the holder. Filters...
  • Page 35 Close the slip-in filter holder cover. Rotate the slip-in filter holder tab as shown (q) and lower it back into its starting position (w). Filters...
  • Page 36 Insert the slip-in filter holder into the slip-in filter holder slot. Insert the holder with the side labeled “FRONT” facing forward (toward the focus ring). Slide the slip-in filter holder in until it latches. • Slide the slip-in filter holder in until it clicks into place. •...
  • Page 37 Using Optional Filters • Using a filter slightly increases the minimum focus distance and shifts the focus distance from that shown by the focus distance display. • When using memory recall, be sure to attach the filter before storing the focus position.
  • Page 38 • Before taking pictures, rotate the ring to control the reflections visible in the shooting display. • Using a filter slightly increases the minimum focus distance and shifts the focus distance from that shown by the focus distance display. • When using memory recall, be sure to attach the filter before storing the focus position.

  • Page 39: Precautions For Use

    • Keep the CPU contacts clean. • Should the rubber lens-mount gasket be damaged, cease use immediately and take the lens to a Nikon-authorized service center for repair. • Reattach the lens caps when the lens is not in use.
  • Page 40 • We recommend that you place the lens in its case to protect it from scratches during transport. • Nikon will not be held liable in the event that the lens is stolen or damaged while a third-party anti-theft cable is attached to the security slot.

  • Page 41: Lens Maintenance

    Lens Maintenance • Removing dust is normally sufficient to clean the glass surfaces of the lens. • When cleaning the fluorine-coated front lens element: Smudges, fingerprints, and other oily stains can be removed using a soft, clean cotton cloth or third-party lens cleaning tissue; clean from the center outwards using a circular motion.

  • Page 42: Technical Notes

    Technical Notes Cameras with AF-Assist Illuminators The lens or lens hood may block the light from the camera AF-assist illuminator. • For the information on using the lens with cameras that have built-in AF-assist illuminators, visit the site below. https://downloadcenter.nikonimglib.com/ Cameras with AF-Assist Illuminators...

  • Page 43: Using The Lens On Cameras With A Built-In Flash

    Using the Lens on Cameras with a Built- in Flash Shadows will be visible in photos where light from the built-in flash is obscured by the lens or lens hood. Remove the lens hood before shooting. Note, however, that depending on the distance to the subject and lens focal length, shadows may appear even when the lens hood is removed.

  • Page 44: Accessories

    Accessories Supplied Accessories • LC-K106 Lens Cap (front cap) • LF-N1 Lens Cap (rear cap) • HB-104 Lens Hood • LN-3 Strap • CL-L3 Lens Case Other Compatible Accessories • 46 mm filters (for use with slip-in filter holder) • C-PL460 Slip-in Circular Polarizing Filter •...
  • Page 45 Specifications Mount Nikon Z mount Focal length 800 mm Maximum aperture f/6.3 22 elements in 14 groups (including 3 ED elements, Lens construction 1 SR element, 1 PF element, elements with a Nano Crystal coat, and a fluorine-coated front lens element) FX format: 3°...
  • Page 46 • [PF Flare Control] can be used only with photographs. It is not available with videos. • NX Studio is available for download from the Nikon Download Center. Be sure to always use the latest version. https://downloadcenter.nikonimglib.com/ Diffraction: Light has the properties of a wave. It bends around obstacles in its path in a phenomenon known as diffraction.
  • Page 47 Notices Notices for Customers in the U.S.A. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 48 ● Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Nikon Corporation may void the user’s authority to operate the equipment. Nikon Inc., 1300 Walt Whitman Road, Melville, New York 11747-3064, U.S.A.
