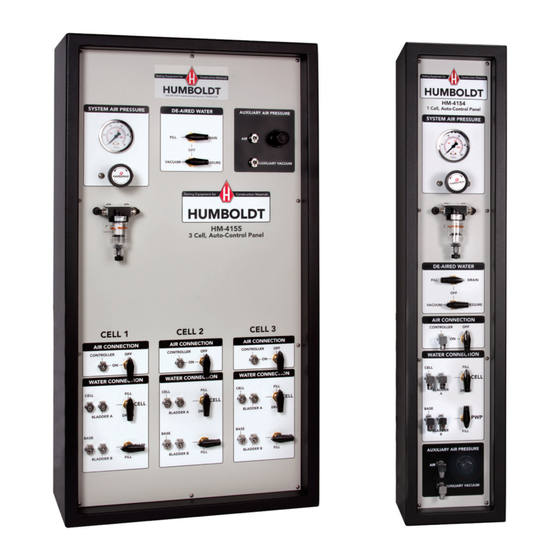

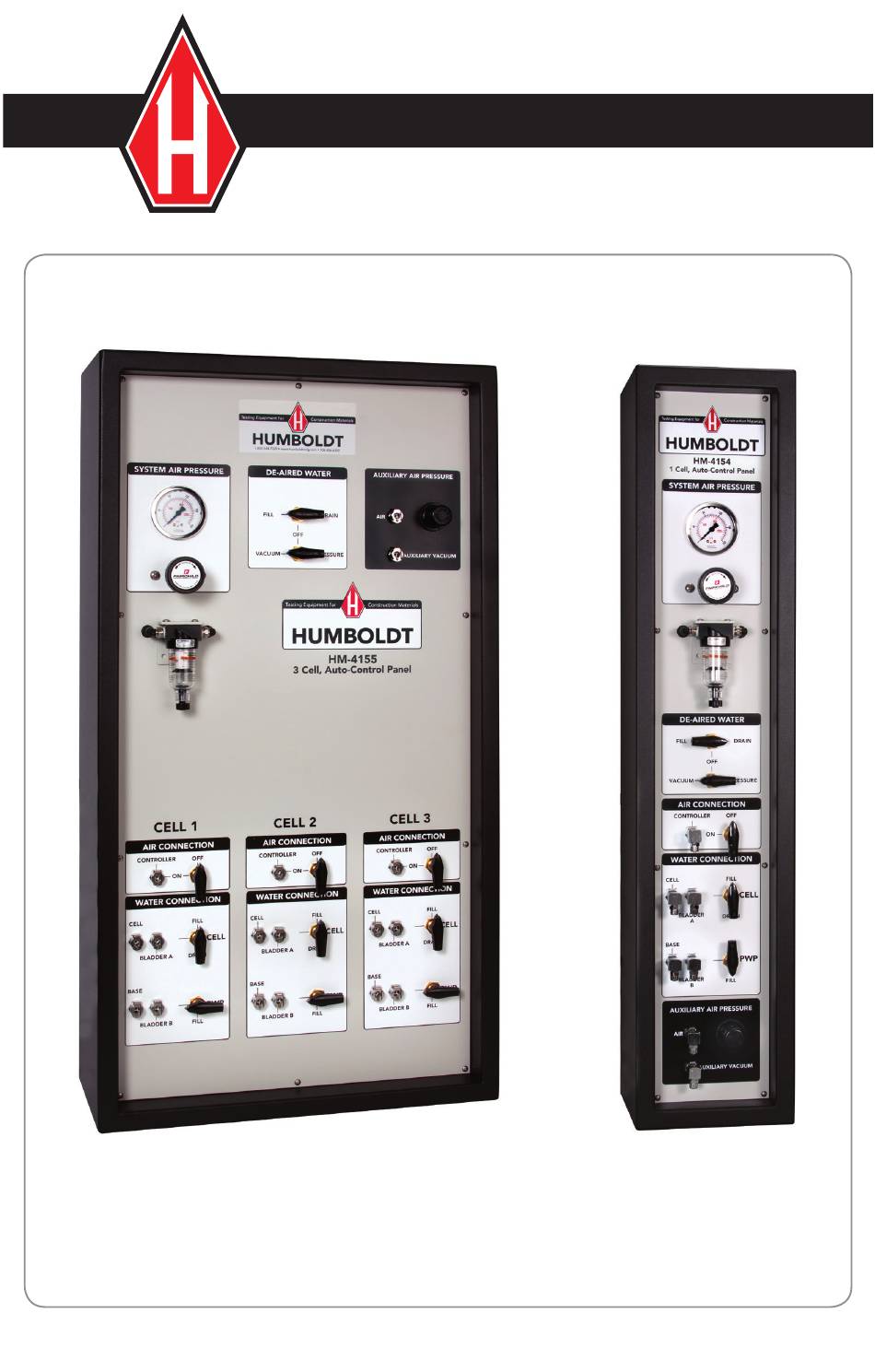

- Page 1 HM-4155, HM-4154 HM-4155_MAN_0812 3-Cell Auto Control Panel 1-Cell Auto Control Panel...
-
Page 2: Installation
INSTALLATION The HM-4155 is a simple, free standing bench mounted system which requires no fixed mounting. PANEL MOUNTING A pair of supporting feet is supplied with the panel so that it can be bench mounted and remain stable. - Page 3 While facing the back of the panel, the four connections starting from the left are for the water drain, tap water input, vacuum input, and compressed air input respectively. The last three connections are for de-aerated water return from the de-airing tank, tap water going to the de-airing tank, and air/vacuum to the de-airing tank respectively.
-
Page 4: Electrical Connection
ELECTRICAL CONNECTION There are no electrical connections required on the HM-4155 Distribution Panel. OPERATION After making all of the necessary connections, check to make sure all of the valves on the front of the panel are set to the off position. -
Page 5: Pressure Gauges
vacuum to the de-airing tank to remove air from the water in the tank and it also allows compressed air to be pumped into the tank to assist in draining the water from the tank. The small auxiliary regulator controls the amount of pressure to assist in draining the water from the de-airing tank (Figure 5). -
Page 6: Maintenance
Slide the filter element off of the support and replace it with a new filter. Reassemble the air filter assembly in the reverse order. SERVICE Please contact Humboldt for service: 1-800-544-7220. 8-32 UNC MACHINE SCREW 8-32 UNC NUT WITH WASHER... - Page 7 Figure 2...
- Page 8 LOOSEN JAM NUT PRIOR TO ADJUSTING AIR PRESSURE PUSH DOWN TO RELEASE CONNECTOR Figure 3 FIGURE 3 VENT VALVE BASE WATER CONNECTION DISTRIBUTION PANEL SOLENOID VALVE PORE WATER LEVER PRESSURE TRANSDUCER FIGURE 4 AUTO VOLUME CHANGE CONNECTION Figure 4 Triaxial Cell...
- Page 9 DE-AIRED WATER AUXILIARY AIR PRESSURE ROTATE THE KNOB CLOCKWISE TO INCREASE PRESSURE FILL DRAIN TO THE DE-AIRING TANK & TO THE AUXILIARY AIR CONNECTOR AUXILIARY VACUUM VACUUM PRESSURE POINT THE KNOB TO THE RIGHT TO APPLY PRESSURE TO THE DE-AIRING TANK FIGURE 5 Figure 5 REGULATING AUXILIARY AIR PRESSURE...
-
Page 10: Air Connection
AIR CONNECTION CONTROLLER POINT KNOB LEFT TO APPLY AIR PRESSURE TO THE AUTOMATIC PRESSURE CONTROLLER Figure 7 FIGURE 7 AIR PRESSURE CONTROL VALVE WATER CONNECTION TURN KNOB UP FILL CELL TO FILL CELL AND BLADDER CYLINDER "A" WITH TAP WATER CELL TURN KNOB DOWN TO DRAIN CELL... - Page 11 Wilkerson Lubricators and Filters Installation & Service Instructions: Pneumatic Division 1M103G Miniature Series Richland, Michigan 49083 Micro-Mist Lubricators & Particulate Filters 269-629-5000 ISSUED: November, 2003 Supersedes: September, 2000 Doc.# 1M103, ECN# 030539, Rev. 8 In new installations, it is good practice to “wet down” the inside diameter of WARNING piping and/hose with oil before making final connections.
- Page 12 Warranty Humboldt Mfg. Co. warrants its products to be free from defects in material or workmanship. The exclusive remedy for this warranty is Humboldt Mfg. Co., factory replacement of any part or parts of such product, for the warranty of this product please refer to Humboldt Mfg.
