Kaon PG2141 Quick Installation Manual

Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

Quick Installation Guide
PG2141 is GPON ONT for FTTH Net works BoSA On Board Opt ical
Solut ion Sm art Wi- Fi.
Connect the Hardware
I f your I nt ernet connect ion is t hrough an Et hernet cable from t he
wall inst ead of t hrough a DSL/ Cable m odem , connect t he Et hernet
cable direct ly t o t he rout er's I nt ernet port , and skip Step 1,2,3 to
com plet e t he hardware connect ion
.

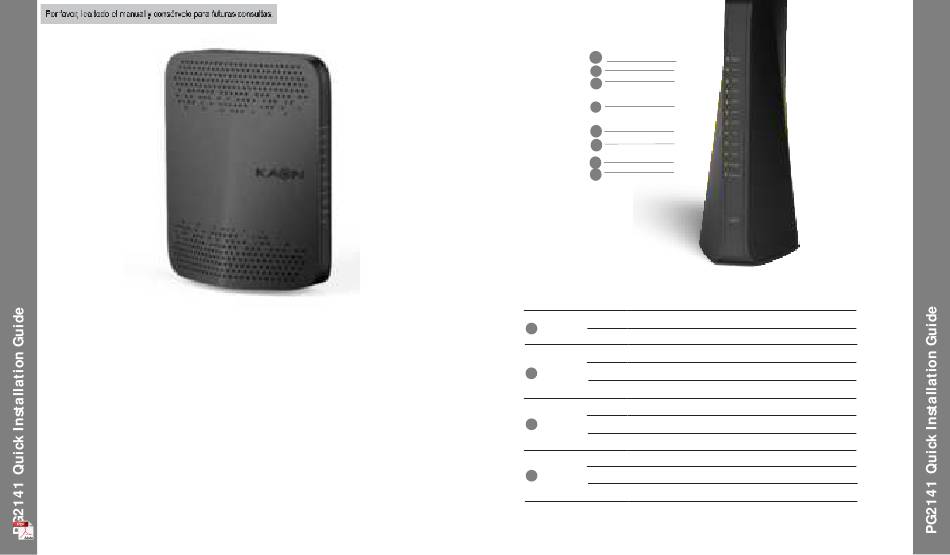

1. Front Panel
1
2
3
4
5
6
7
8
Off
The modem is powered off.
1
POWER
On
The modem is powered on.
Off
The initialization is not started, or has failed.
Flashing The PON mode is scanning the range.
2
PON
On
The PON mode is available.
Off
The modem is upstream ranging.
LOS
3
Flashing The modem is upstream ranging.
On
The modem is upstream locked.
Off
Internet service isnot available.
4
LAN 1-4
Flashing The modem is initializing.
On
Internet service is available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG2141 and is the answer not in the manual?

Questions and answers

Related Manuals for Kaon PG2141

Summary of Contents for Kaon PG2141

  • Page 1 Quick Installation Guide POWER The modem is powered on. PG2141 is GPON ONT for FTTH Net works BoSA On Board Opt ical The initialization is not started, or has failed. Solut ion Sm art Wi- Fi. Flashing The PON mode is scanning the range.

  • Page 2: Rear Panel

    3. Rear Panel 5G WiFi Interface disabled. Flashing 5G WiFi is sending or receiving data. 5G WiFi Interface enabled. 2.4G WiFi Interface disabled. Flashing 2.4G WiFi is sending or receiving data. 2.4G 2.4G WiFi Interface enabled. The WPS I nterface enabled. The WPS I nterface in use.
  • Page 3 1 meter or more away from the telephone, as this may cause frequency interference 6. PackageContent Quick Guide PG2141 Ethernet Cable Power Adaptor Quick Guide (CAT5/RJ45) Adaptador ca/cc Entrada: 100-240 Vca 50/60 Hz 0.8ª Salida: 12 Vcc 2.5A...

  • Page 4: Specification

    256MB DDR3 RAM 802.11 a/b/g/n/ac MU-MIMO Wi-Fi 3x3 2.4 GHz + 4x4 5 GHz dual band concurrent Internal antenna Mesh KAON Smart Mesh 12 x LED Indicators Front WPS Button 1 x Fiber optic 4 x GbE LAN Ports Rear 2 x FXS ports (RJ-11) 1 x USB2.0...
  • Page 5 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
