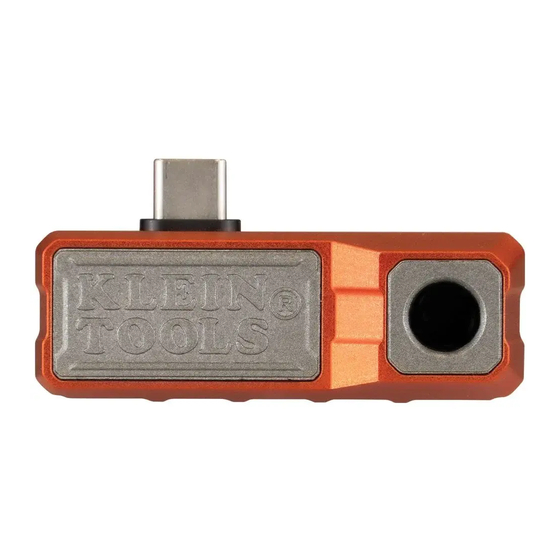

INSTRUCTION MANUAL
Thermal Imager for
Android
Devices
Devices
®
• 10,800 PIXELS TO
TROUBLESHOOT
HOT AND COLD
SPOTS
• CAPTURE,
STORE, AND
SHARE IMAGES,
VIDEO, AND
TIME-LAPSE VIDEO
• DIFFERENTIAL AND
TOUCH SCREEN TEMPERATURE
• HIGH AND LOW TEMPERATURE
ALARMS
• SELECTABLE COLOR PALETTES
• COMPATIBLE WITH MOST
ANDROID
* DEVICES
®
*Android
®
version 6.0 or higher
-4° – 752°F
-20° – 400°C
2 m
www.
.com
TI TI
220
information@itm.com
Advertisement
Table of Contents
Related Manuals for Klein Tools TI220
Summary of Contents for Klein Tools TI220
- Page 1 TI TI ENGLISH INSTRUCTION MANUAL Thermal Imager for Android Devices Devices ® • 10,800 PIXELS TO TROUBLESHOOT HOT AND COLD SPOTS • CAPTURE, STORE, AND SHARE IMAGES, VIDEO, AND TIME-LAPSE VIDEO • DIFFERENTIAL AND TOUCH SCREEN TEMPERATURE • HIGH AND LOW TEMPERATURE ALARMS •...
-
Page 2: General Specifications
ENGLISH GENERAL SPECIFICATIONS Klein Tools TI220 Thermal Imager allows easy capture, storage, and sharing of images and video, including time-lapse video, for instant troubleshooting on your Android device. Excellent resolution of over 10,800 pixels, with your ® choice of color palettes. The meter features differential temperature, touch-point temperature, and high and low temperature alarms. -
Page 3: Feature Details
WARNINGS To ensure safe operation and service, follow these instructions. • Read the instructions to ensure safe operation. • Always wear approved eye protection. • Do not use if the housing is damaged in any way. • DO NOT use if the USB-C connector, micro-USB connector/adapter is damaged in any way. -
Page 4: Display Details
ENGLISH DISPLAY DETAILS LIVE MODE SCREEN FIG. B Photo/Video Gallery 7:30 AM Center Point Temperature 124.2 80.7 Differential Temperature 51.5 132.2 Red Marker - High Temperature White Marker - Center Point 132.2 Gray Marker (User-Selectable) 124.2 Calibrating Icon Time-Lapse Video Capture Button Photo Capture Button 90.4 Video Capture Button... -
Page 5: Video Mode Screen
7:30 AM 7:30 AM 7:30 AM Settings Photos Photos January 23, 2020 80.7 Camera Settings 132.2 132.2 Language 124.2 January 22, 2020 80.7 DISPLAY DETAILS VIDEO MODE SCREEN FIG. D 7:30 AM 7:30 AM 80.7 124.2 124.2 80.7 80.7 132.2 51.5 51.5 132.2... -
Page 6: Settings Screen
ENGLISH DISPLAY DETAILS SETTINGS SCREEN FIG. F Previous Screen Icon Camera Settings Button Frequently Asked Questions Button Language Button CAMERA SETTINGS SCREENS 1.800.561.8187 information@itm.com www. .com... -
Page 7: Downloading The App
(FIG. H). 3. Connecting your device will automatically open the app, and a popup will ask for confirmation: "Open Klein Thermal to handle Klein Tools TI220?" Tap "OK" or "CANCEL". Optionally, check the box to select "Always open Klein Thermal when Klein Tools TI220 is connected."... - Page 8 ENGLISH OPERATING INSTRUCTIONS PHOTO CAPTURE While in Live View mode (see FIG. B), aim the Camera at the subject to be photographed and tap the Photo Capture button take a photo. NOTE: When the first photo is captured, the app will ask permission, "Allow Klein Thermal to access photos and media on your device?"...
- Page 9 Emissivity on the TI220 may be adjusted from 0.01 to 0.99 to enable accurate measurement of the temperature of most types of materials. Generally speaking, shiny bright surfaces such as chrome, white boards, etc.
-
Page 10: Fcc & Ic Compliance
ENGLISH CLEANING Be sure unit is not connected to a device and wipe with a clean, dry lint-free cloth. Do not use abrasive cleaners or solvents. STORAGE Do not expose to high temperatures or humidity. After a period of storage in extreme conditions exceeding the limits mentioned in the General Specifications section, allow unit to return to normal operating conditions before using.
