Panchromatic
Eumig Mark 8
User Manual
The Place to find Antique, Vintage, Retro or just plain used, 8 mm Super 8 mm 9.5 mm,
16 mm Film Projectors, Slide Transparency Projectors, Cameras and Darkroom
Equipment.

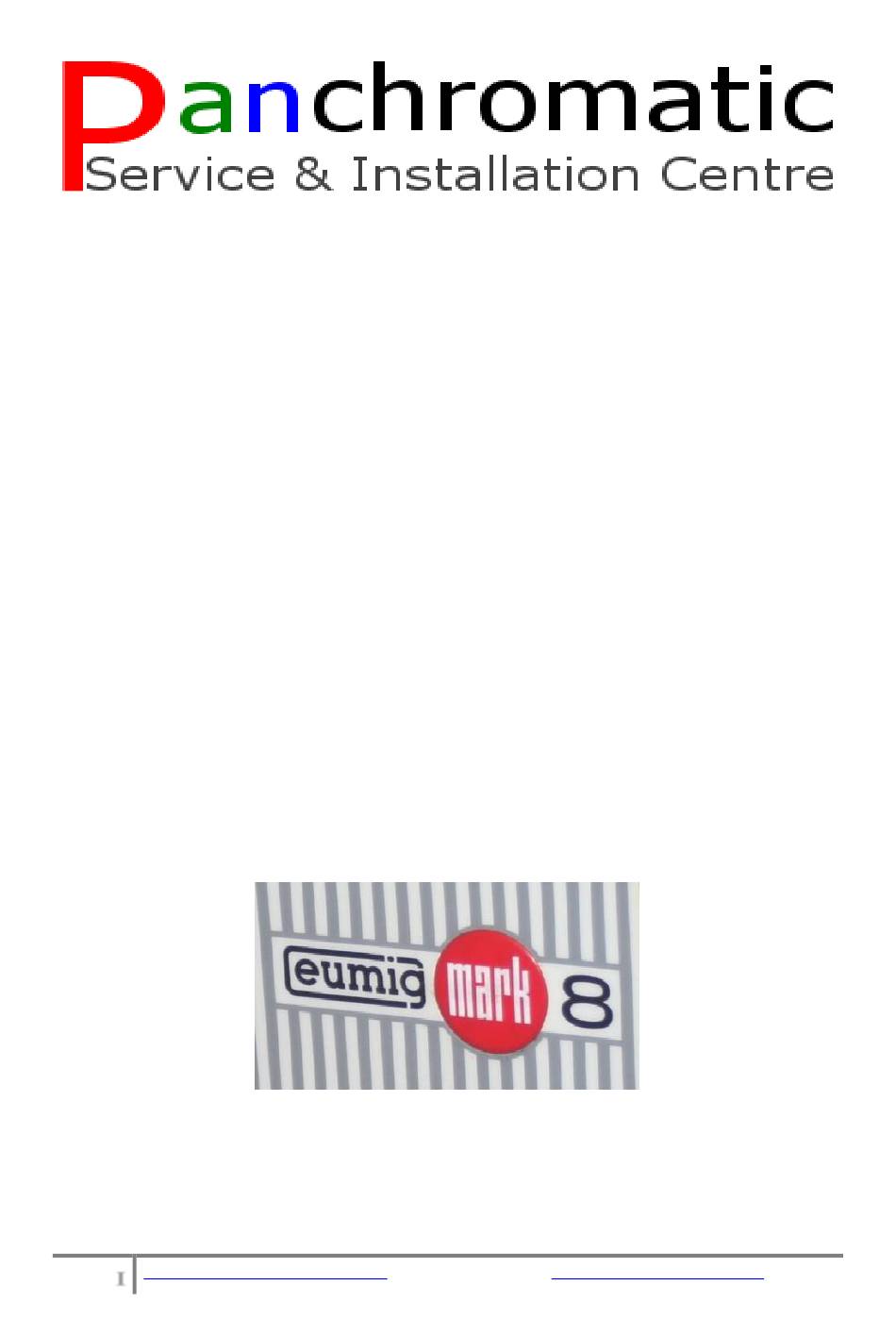

Eumig Mark 8
Dual Format
Film Projector
User Manual
Service@Panchromatic.co.uk
1
Service@Panchromatic.co.uk
www.Panchromatic.co.uk
Advertisement
Table of Contents
Related Manuals for Panchromatic Eumig Mark 8
Summary of Contents for Panchromatic Eumig Mark 8
- Page 1 Panchromatic Eumig Mark 8 User Manual The Place to find Antique, Vintage, Retro or just plain used, 8 mm Super 8 mm 9.5 mm, 16 mm Film Projectors, Slide Transparency Projectors, Cameras and Darkroom Equipment. Eumig Mark 8 Dual Format...
- Page 2 Panchromatic Eumig Mark 8 User Manual EUMIG MARK 8 Silent film projector for Standard 8, Super 8 and Single 8 mm films Projection lens AUSTROVAR 1,4/15-25 mm. This projector is equipped with. a 12V/100W halogen lamp 562 U 240.
- Page 3 Panchromatic Eumig Mark 8 User Manual Before Use Be sure that the nature of your electric supply, its voltage and frequency are compatible with the specifications of your projector. Should you find it necessary to adjust the voltage setting on your unit this can be done in the following way.
- Page 4 Panchromatic Eumig Mark 8 User Manual 5. Push light grey film guide towards the lens take it out replace it by dark grey film guide. (First push in until it comes to a stop, then push toward the left until the two guide pins click into position.) Replace the dark grey film pressureplate.
- Page 5 Panchromatic Eumig Mark 8 User Manual Place the provided special take-up reel on the rear reel support in such a way that it is firmly fastened. (The film length indication marks must be facing toward you). Wrongly spooled films (contrary to our illustration) must be rewound twice to correct the error.
- Page 6 Panchromatic Eumig Mark 8 User Manual Adjustment of Running Speed With the projector connected to the mains and the central switch in the "0"' setting. Push knob 6 down as far as it will go = 18 frames per second.
- Page 7 Panchromatic Eumig Mark 8 User Manual Removal of a partially projected film 1. Set central switch to "0" and pull lens forward. 2. Pull out film pressure plate. 3. Release the pressure guides of the feed sprocket and take-up sprocket.
- Page 8 Panchromatic Eumig Mark 8 User Manual Never touch the projection lamp with bare fingers; every finger-print will burn into the quartz lamp, thus diminishing the light output. (Should you inadvertently touch the lamp with bare fingers, immediately clean the lamp with a clean cloth moistened with alcohol.)
