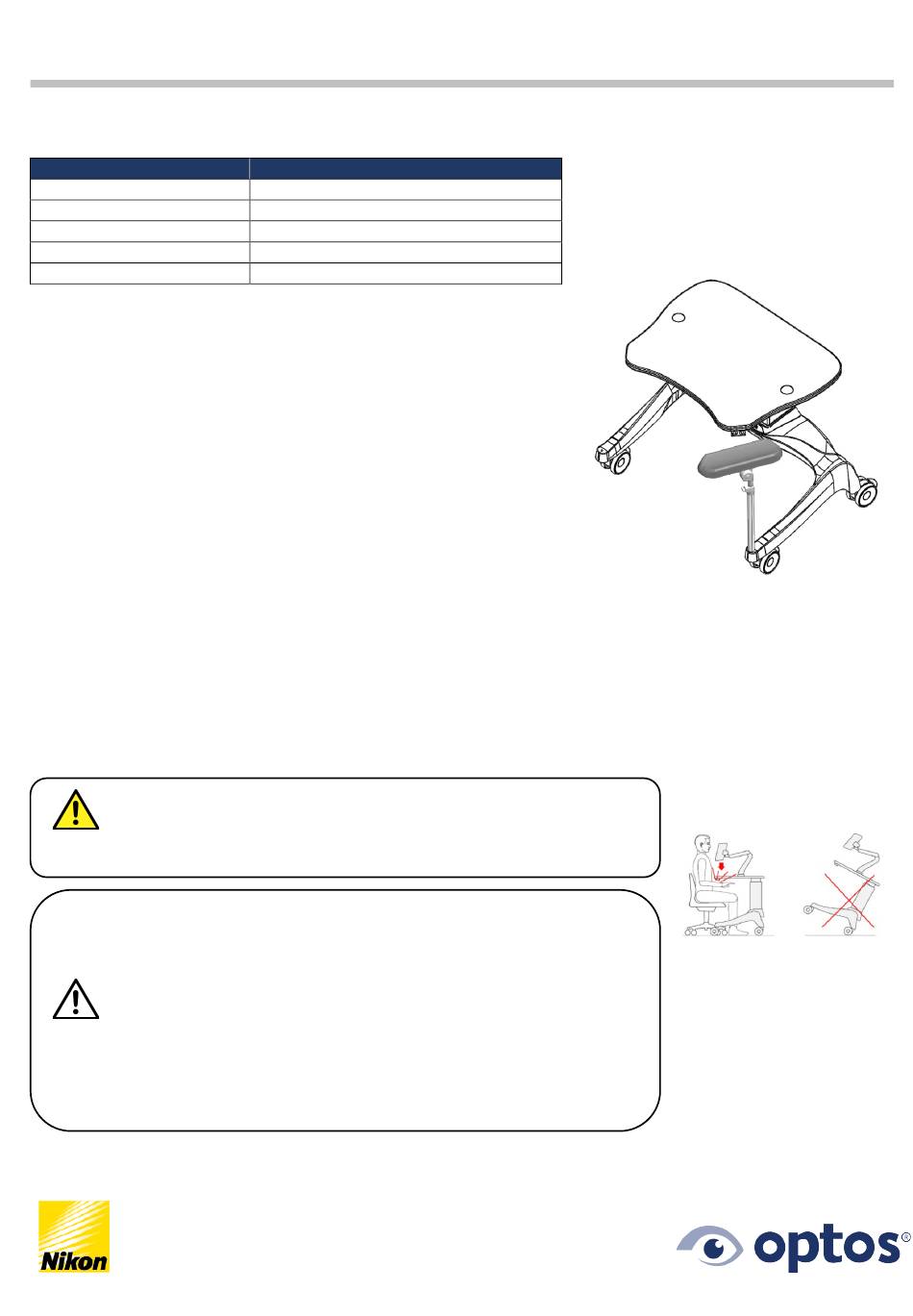

Optos Arm Rest
Installation and User Guide

Technical specifications

Dimensions
Width
Depth
Arm rest height
Arm rest weight
Maximum load on Arm rest
Note: The arm rest height does not include the height from the floor to the table
base where the arm rest connects.

Warnings and cautions

The Optos arm rest MUST be operated within the safety parameters and instructions defined in the Optos Table User Guide.
If you have any questions regarding the correct use of the Optos arm rest, please contact your Optos representative before
attempting to operate the Optos arm rest.
Do NOT lean on the arm rest.
Ensure the patient or operator's arm is NOT trapped or impacted when the arm
rest position is adjusted or when Optos table height is adjusted.
WARNING
Incorrect positioning of the arm rest MAY result in patient harm.
The Optos Table legs and arm rest fixing points protrude. The patient and
operator must take care when moving around the table.
If you suspect the arm rest is faulty, or if the pad becomes worn or damaged,
please contact your Optos representative.
In order to prevent any contamination always clean and disinfect parts of the
equipment which will be in contact with the patient.
CAUTION
Avoid contact with injured skin or mucous membranes.
Be careful NOT to damage the arm rest when cleaning.
You should be aware of your contractual obligations before disposing of any
equipment.
Details
12 cm (5 inches)
35 cm (14 inches)
55 cm to 75 cm (22 inches to 30 inches)
1.7 kg (3.8 lbs)
15 kg (33 lbs)
