Instruction Manual

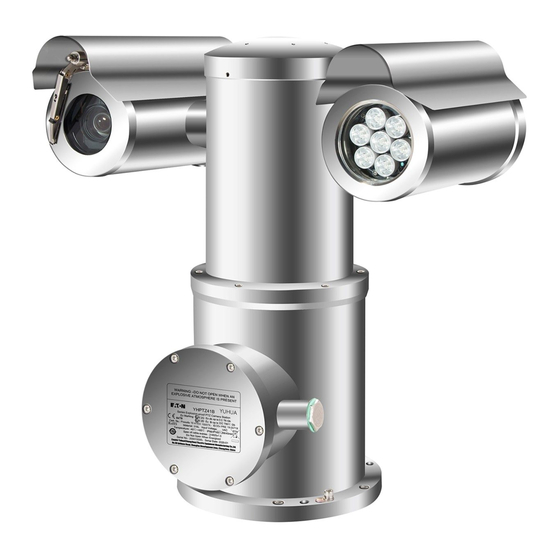

YHPTZ41 Series
Explosion proof Integrated Camera Set
IP Code: IP 68 (1.2m/45min)
II2G Ex db op is IIC T6 Gb (for type YHPTZ41)
Ex Marking:
or Ex db IIC T6 Gb (for type YPTZ41-1)
II2D Ex tb IIIC T80°C Db
Ex tb op pr IIIC T95°C Db (optical fiber version)
Certificate number:
0470 Presafe 14 ATEX 4570X
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eaton YHPTZ41 Series
Summary of Contents for Eaton YHPTZ41 Series
- Page 1 Instruction Manual YHPTZ41 Series Explosion proof Integrated Camera Set IP Code: IP 68 (1.2m/45min) II2G Ex db op is IIC T6 Gb (for type YHPTZ41) Ex Marking: or Ex db IIC T6 Gb (for type YPTZ41-1) II2D Ex tb IIIC T80°C Db Ex tb op pr IIIC T95°C Db (optical fiber version)
-
Page 2: Copyright Statement
Cooper Yuhua remains the right to modify the content and technical specifications of the product in this Instruction Manual without any form of notification, in order to provide the newest and most advanced product. The end users can get the latest product information on Yuhua’s website: http://www.cyh.com.cn. eaton www.eaton.com... -
Page 3: Quality Guarantee
Damage caused by improper operation that against the • Instruction Manual. Damage caused by unauthorized disassembly. • Thunder or other force majeure natural disasters. • If any other contracts between clients and us exist, we will follow the promise or regulation strictly. eaton www.eaton.com... -
Page 4: Notice
The internal and external grounding shall be reliable; • Ensure the installation is firm and reliable, to avoid unexpected • damage of the camera; Protect the flame-proof joints from stumble and crack in • installation, operation and maintenance. eaton www.eaton.com... -
Page 5: Table Of Contents
4.0 Transportation and storage ......................16 4.1 Cautions in hoisting and transportation ................... 16 4.2 Storage condition, duration and cautions ................16 5.0 Camera specifications ......................... 16 Annex 1: Table of poisonous and harmful substances or elements ..........17 eaton www.eaton.com... - Page 6 We suggest using this product with Surge Protection Devices. • Internal and external grounding shall be reliable. • 5. Operation & maintenance requirements Do not dismantle this product; there is no user serviceable • part inside. eaton www.eaton.com...
-
Page 7: Ex Structure Instruction
Select the best position to move the product • reserved length of the cable is no less than 2 meters. Serrated joint Serrated joint Vertical cylinder part free rotation Serrated joint Spigot joints Horizontal cylinder part free rotation No knocking down eaton www.eaton.com... -
Page 8: General
Horizontal cylinder part can not rotate freely All associate technical document, drawings and samples of YHPTZ41 series explosion-proof integrated camera are tested and certified by Presafe, ATEX certification number: 0470 Presafe... -
Page 9: Features
Instruction Manual Effective March 2020 Features Electrical data YHPTZ41 series explosion-proof integrated camera set integrates Input voltage: 100~240VAC high-performance color camera, omni bearing variable speed PTZ, Frequency: 50~60Hz multifunction decoder controller and infrared light source, and also common communication protocols and speed. It will give you Maximum current: ≤1A... -
Page 10: Installation & Debugging
Other tools required: Certificate of conformity, Qualification certificate and Instruction Manual Cross screw driver: 6X150 1pc Outer hexagon adjustable wrench: 300X36 1pc Cross recess oval head screws: M5X8 4pcs Hexagon bolts: M8X30 6pcs Brass screws:1/4”X6 1pc Brass screws:1/4”X12 1pc eaton www.eaton.com... -
Page 11: Assembly
Figure 2.2.1.2 Tighten the compression nuts 700 N/mm Assembly 2.2.1 Component assembling Fixing bolts of the sun shade: Cross recess oval head screws: 4-M5X8 Figure 2.2.1.1 installation of sun shade eaton www.eaton.com... -
Page 12: Usage
Table 2.3.2.1 Cable indication Composite cable Product Power cable UTP5E Function Live wire Zero line Earth line Data transmission Orange green blue brown Yellow Color brown Grey & orange & blue & green & brown /green white white white white EATON www.eaton.com... - Page 13 Eg. If the address of the explosion-proof integrated camera is 64: set Sw4 at 0, SW5 at 6, SW3 at 4. Function setting RS485communication module Address setting Figure 2.3.3.4 hundred’s digit(SW4), ten’s digit(SW5) and unit’s digit(SW3) Figure 2.3.3.2 the main function switch arrangement on the panel eaton www.eaton.com...
-
Page 14: Support Preparation Before Installation Of Yhptz41
2.3.6 Service status and inspection in service YHPTZ41 will start self checking automatically after power on. Normal self checking procedures: • Horizontal left rotating a round→right rotating a round Rain wiper run once Vertical rotating to-90°→up to +90°→back to horizontal position eaton www.eaton.com... -
Page 15: Installation And Fastening
Ex terminal boxes or devices that suitable for the hazardous area. Camera Time settings During product use, the camera needs to reset the time after each power outage restart. EATON www.eaton.com... -
Page 16: Transportation And Storage
Packaged product can be delivered in all modes of transportation Rated voltage:12V±10% but without direct rain or snow. Dissipation power:≤10W Storage condition, duration and cautions This product can be stored for one year in environment of temperature range: 0°C~+40°C and humidity no more than 90%. eaton www.eaton.com... -
Page 17: Annex 1: Table Of Poisonous And Harmful Substances Or Elements
Treatment of this poisonous, harmful substances or elements can not carried out by user selves, please deliver it to the appointed department according to the local laws or regulation. eaton www.eaton.com... - Page 18 Eaton is binding. Photos and pictures also do not warrant a specific layout or functionality. Their use in whatever form is subject to prior approval by Eaton. The same applies to Trademarks (especially Eaton, Moeller, and Cutler-Hammer). The...
