Summary of Contents for Desview R5II
- Page 1 User Manual...
-
Page 2: Table Of Contents
Contents Notice ■ Product Overview ■ Operation ■ Settings ■ Technical Data ■ Disposal and Conformity ■ Warranty ■... -
Page 3: Notice
Desview. Desview is not responsible for any loss of injury or any liability arising from direct or indirect use of the product. Follow all security guidelines, including but not limited to this user manual. -

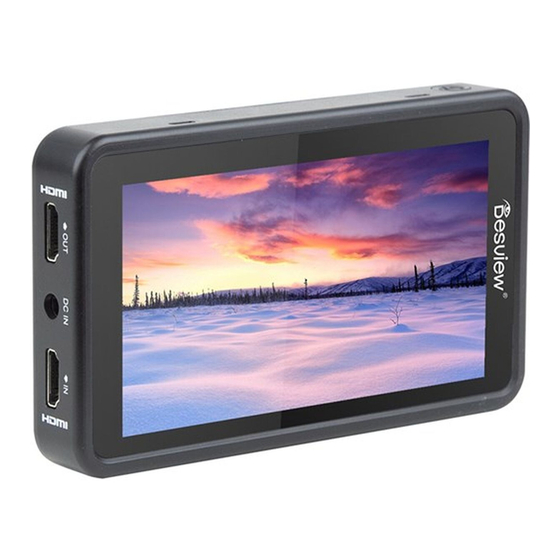

Page 4: Product Overview
PRODUCT OVERVIEW Bottom view 22 mm Front view 3.5 mm 1/4" USB connection 8 V DC output jack connection (�.� x �.� mm) connection 151.4 mm Power on/off switch Top view Battery slot (E6, NP-F) Rear view... - Page 5 PRODUCT OVERVIEW Left view Right view HDMI output 1/4" connection DC input (�.� x �.� mm） HDMI input...
- Page 6 PRODUCT OVERVIEW Sunshade Paste the sunshade on the holder. Paste the sunshade with the holder on the monitor.
- Page 7 PRODUCT OVERVIEW Rechargeable Batteries The monitor supports batteries of type NP-F550, NP-F750, NP-F970 and E6. NP-F battery series E6 battery...
-
Page 8: Operation
OPERATION Touchscreen 1. Navigation 2. Zoom 3. Volume and Brightness False Color SPECTRUM ARRI On the right area of the screen, Tap on the screen to call up the Move two fingers together or apart on swipe up to increase the volume; quick UI menu. - Page 9 OPERATION LUT Import Plug the USB stick into the monitor's USB connection. Find the “Custom LUT” in the LUT config menu, then click “Look U-Disk”. USB connection Exposure Assist Focus&Composition Quit USB LUT Config Cinelike D Cinelike V User LUTS Log Conversions Natural Camera LUTS...
- Page 10 OPERATION 4. After import the LUT file, click “Exit U-Disk”, then pull out the USB stick. C:\Log Conversions Quit USB Up Folder Cinelike V Log Conversions Natural Load All LUT Upgrading 100% 5. Then select "User LUTS" option in LUT setting, and load the downloaded LUT log. Exposure Assist Focus&Composition LUT Config...
- Page 11 OPERATION Firmware Upgrade formatting EOS DIGITAL (L:) Format the USB-Stick as "FAT32 format" with a computer. capacity （ P） : Copy the downloaded upgrade file into the USB-Stick. The file system(F) Plug the usb disk into the monitor's usb port. （default）...
-
Page 12: Settings
SETTINGS 1. Exposure Assist Exposure Assist False Color Close SPECTRUM ARRI �� Zebra Histogram Close Brightness Position Transparency Waveform Close Luminance Position Transparency Open Vectorscope Close Position Transparency Open All Wave Close Open HLG Rec��� Close... - Page 13 SETTINGS 2. Focus & Composition Focus &Composition Single Color Close Peaking Close Weak Average Strong Strength Open Center Mark Close Safe Area Transparency 16:10 16:9 1.85:1 2.35:1 2.40:1 Mark Ratio Grid Lines Audio Meters Close Left Right...
- Page 14 SETTINGS 3. LUT Configuration LUT Config Htocked User LUTS Open Close Sony S-Log Camera LUTS Close Open Custom LUT_sd Look USB 4. Display Setting Display Setting Auto 4：3 16：10 16：9 1.85：1 2.35：1 Aspect Ratio Display Flip Close Open Close Open H Flip V Flip Zoom...
- Page 15 SETTINGS 5. System Configuration System Config Menu Config Duration Colse Brightness Sharpness Contrast Saturation �� �� �� �� Color Green Blue �� �� �� 5600K 6500K Color Temperature Color Temperature 9300K User �� Volume Sound Mute Battery Notification Close Open...
- Page 16 SETTINGS 5. System Configuration Mar �� ����, ��:��:�� Swprogress Update(USB) Status Input HDMI Resolution No Signal Scan Mode No Signal Frame No Signal Color Temperature 6500K Aspect Ratio Auto R� LV�.� �������� Backlight Volume 6. Quick Function Language Language �� Backlight Backlight Reset...
-
Page 17: Technical Data
TECHNICAL DATA Screen size 5.5 inch Dimensions 15.1 x 8.9 x 2.2 cm Weight 200 g Resolution 1920x1080 Contrast 1000:1 Brightness 800nits Viewing angle 178°(H/V) Backlight Material ABS engineering plastic Voltage DC 7– 24 V Power ≤ 9W Signal input HDMI1.4 Signal output HDMI1.4... - Page 18 TECHNICAL DATA HDMI input signal format HDMI output signal format ���x���i & ���x���p @ ��.��, �� Hz ���x���i & ���x���p @ ��.��, �� Hz ���x���i & ���x���p @ �� Hz ���x���i & ���x���p @ �� Hz ����x���p @ ��, ��.��, �� Hz ����x���p @ ��, ��.��, ��...
-
Page 19: Disposal And Conformity
Do not dispose old devices into the household waste! If the Desview R5II is no longer used, every consumer is legally obligated to dispose them separately from the household waste, for example, at a collection site of his community / city district. -
Page 20: Warranty
WARRANTY Warranty The statutory liability for defects exists. The statutory warranty applies to the purchased product, except for consumables and wearing parts, which may also be worn out during the warranty period through proper use. The warranty period is two years from delivery of the goods. - Page 21 WARRANTY Warranty Card USER INFORMATION Name Phone: Add: SALES INFOMATION Sale Date: Distributor Name: Distributor Tel: REPAIR LOG Repair Date: Repair name: Issue: Result: repaired not repaired return...
- Page 22 Imported by: Rollei GmbH & Co. KG In de Tarpen 42 D-22848 Norderstedt Service Hotline +49 40 270750277 Item No.: 28807 Production: 2022/05...
