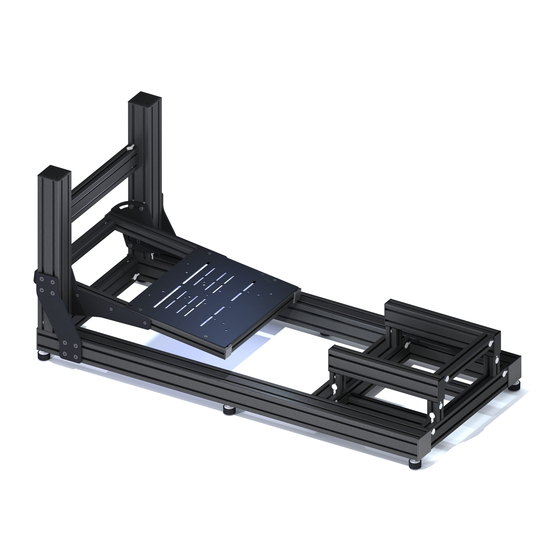

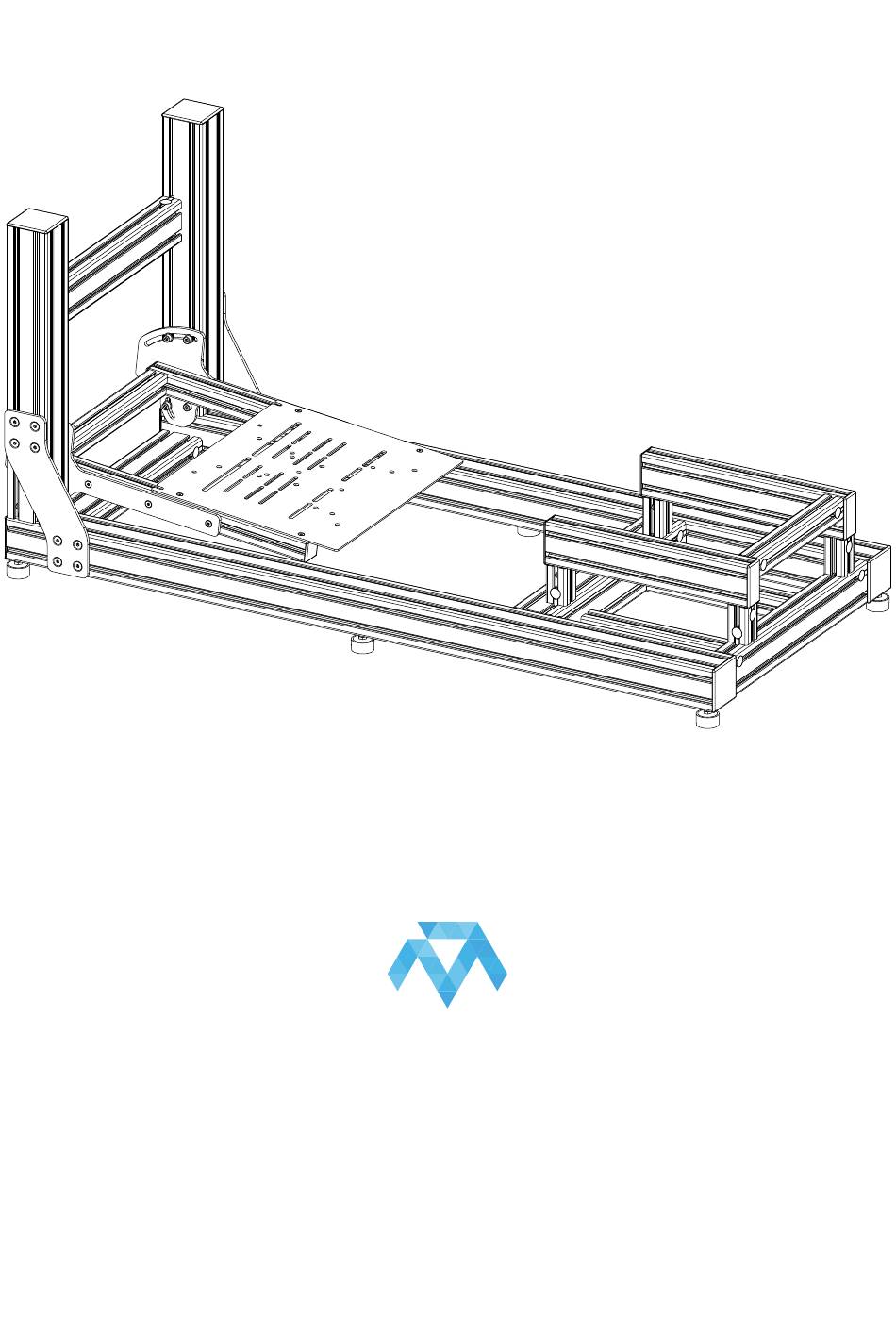

- Page 1 MTS BASE FRAME Instruction Manual Bedienungsanleitung Mode d‘emploi...
- Page 2 PARTS [dimensions in mm / different scales] MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 3 BAG 1 flat head black MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 4 BAG 2 (feet) MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 5 Prepare universal connectors (loose fit) and slide in paired. Detail Use a plan surface for Use a plan surface for assembly. assembly. Tighten slightly until ALL Tighten slightly until ALL profiles are placed. profiles are placed. MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 6 320 mm top view 320 mm MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 7 Tighten all bolts now! MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 8 Mounting the feets. Two in the middle of the profiles. Four at the ends. feet flat nut M8 spacer 5 mm washer Ø24 mm slot nut M8 MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 9 MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 10 4x slot nut M8 MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 11 M8x30 universal connector universal connectors Tighten slightly until all outer side profiles are placed. MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 12 If your seat has a different mounting width you can leave this profile away. ATTENTION! Monstertech Center Joysick woun‘t fit for other seat width! Tighten bolts now. 130 mm 130 mm MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 13 Tighten bolts slightly. approx. 150 mm Mount profile and then tighten bolts. MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 14 Same assembly on both sides of the rig. M8x16 slot nut flat head black place caps MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 15 PARTS - PEDALS / RUDDER [dimensions in mm / different scales] hole pattern could change by updates MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 16 BAG 3 (pedals / rudder) black black black BAG 4 with various bolts and nuts for mounting your pedals. BAG 5 various tools MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 17 Choose a position where the profile didn‘t block your pedal profile didn‘t block your pedal mounting bolts. mounting bolts. 2x slot nut M6 2x slot nut M6 3x slot nut M6 3x slot nut M6 MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 18 3...4x M6x14 flat head black Adjust distance by loosening the bolts. MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 19 4x M6x14 flat head black another distance adjustment option slot nut both sides MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 20 For height washer Ø16 and angle black M8x16 adjustments black loose these bolts. MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL...
- Page 21 01-11-2021...
