Summary of Contents for Monstertech PILOT SEAT

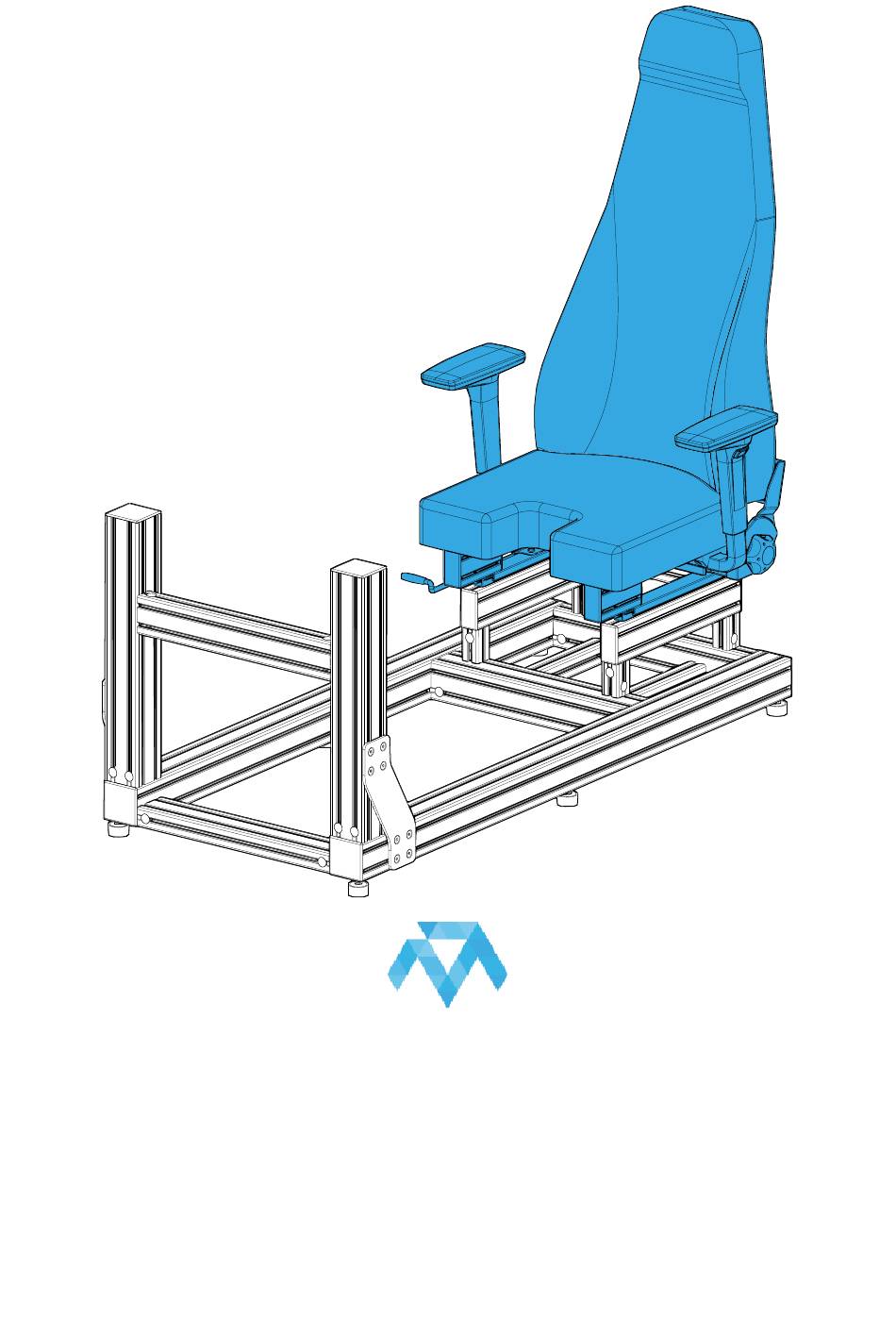

- Page 1 PILOT SEAT Instruction Manual Bedienungsanleitung Mode d‘emploi...
- Page 2 ASSEMBLY 4x M6x50 4x toothed washer 4x washer Ø14 MONSTERTECH MTS PILOT SEAT INSTRUCTION MANUAL...
- Page 3 4x M6x35 4x toothed washer 4x washer Ø12 MONSTERTECH MTS PILOT SEAT INSTRUCTION MANUAL...
- Page 4 4x slot nut M8 To get access to the mounting holes pull lever and move the parts of the slider. MONSTERTECH MTS PILOT SEAT INSTRUCTION MANUAL...
- Page 5 2x M8x14 front side MONSTERTECH MTS PILOT SEAT INSTRUCTION MANUAL...
- Page 6 2x M8x14 MONSTERTECH MTS PILOT SEAT INSTRUCTION MANUAL...
- Page 7 4x slot nut M8 MONSTERTECH MTS PILOT SEAT INSTRUCTION MANUAL...
- Page 8 2x M8x14 MONSTERTECH MTS PILOT SEAT INSTRUCTION MANUAL...
- Page 9 2x M8x14 MONSTERTECH MTS PILOT SEAT INSTRUCTION MANUAL...
- Page 10 bottom view 04-03-2022...
