POWER PER CHANNEL
•
6 x 150w RMS into 4 ohms @ 1% THD
•
6 x 200w RMS into 2 ohms @ 1% THD
•
4 x 150w RMS into 4 ohms + 1 x 500w RMS into 4 ohms (Ch 5+6 Bridged) @ 1% THD
•
4 x 200w RMS into 2 ohms + 1 x 500w RMS into 4 ohms (Ch 5+6 Bridged) @ 1% THD
•
Do NOT bridge into 2 ohms.
•
All power ratings are at 14.4v DC.
INPUTS SWITCH
•
2 = Use input 1+2 and route them to channels 3+4 and 5+6
•
4 = Use input 1+2 and 3+4
1+2 and 3+4 are attenuated by -6dB and routed to 5+6.
This allows constant bass loudness when you fade between 1+2 and 3+4.
•
6 = Use all six inputs.
CHANNELS 1 & 2 CROSSOVER CONFIGURATION
•
Flat: Full Range Signal. No crossover activated.
•
HP: Activates the High Pass Filter for a midbass or tweeter.
•
Copy 3 & 4: Copies the signals and filters from channels 3 & 4 to channels 1 & 2. Use this mode when you need
a band pass filter on all four channels. Recommended when bridging channels 1, 2, 3, 4.
CHANNELS 3 & 4 CROSSOVER CONFIGURATION
•
Flat: Full Range Signal. No crossover activated.
•
HP: Activates the High Pass filter.
•
LP/BP: Activates the selection of either a Low Pass filter for woofer or a Band Pass filter for midrange.
CHANNELS 5 & 6 CROSSOVER CONFIGURATION
•
Flat: Full Range Signal. No crossover activated.
•
HP: Activates the High Pass filter.
•
LP/BP: Activates the selection of either a Low Pass filter for woofer or a Band Pass filter for midrange.
•
Sub Mode: Inputs 5+6 are mixed to mono for bridge mono operation. Crossover slopes become 24dB.
The subwoofer remote volume control is activated. There is a clip distortion light on the remote volume control.
If you see this light is on, reduce volume until the light goes out so that you do not damage your speaker.
AUTOMATIC POWER TURN ON/OFF
1.
The best way to automatically turn the amplifier power on and off is to use the REM wire from your source radio
connected to the REM amplifier terminal.
2.
If your original equipment stereo or source radio has a BTL amplifier then the RCA inputs have an auto turn
on sensing circuit. When you connect the high level BTL speaker wires to the RCA input the REM wire is not
necessary.
V2
FDP 6.900

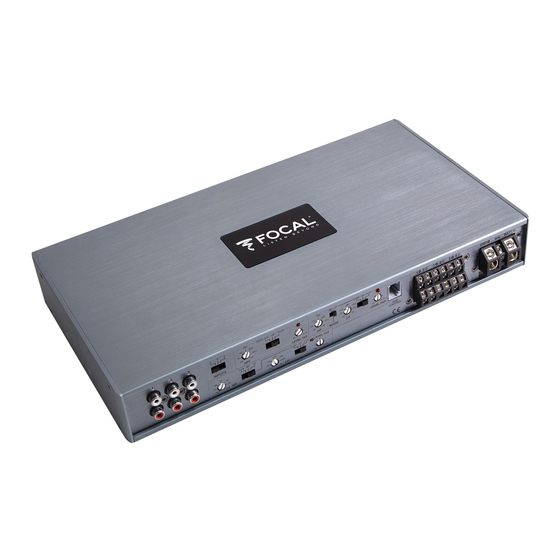

: 6-CHANNEL AMPLIFIER
OPERATION / CONFIGURATION MANUAL
1
Advertisement
Table of Contents
Related Manuals for Focal FDP 6.900 V2
Summary of Contents for Focal FDP 6.900 V2
- Page 1 FDP 6.900 : 6-CHANNEL AMPLIFIER OPERATION / CONFIGURATION MANUAL POWER PER CHANNEL • 6 x 150w RMS into 4 ohms @ 1% THD • 6 x 200w RMS into 2 ohms @ 1% THD • 4 x 150w RMS into 4 ohms + 1 x 500w RMS into 4 ohms (Ch 5+6 Bridged) @ 1% THD •...
- Page 2 For a sealed box, the high pass is typically set between 10Hz and 30Hz to increase power handling capacity. • For a vented box, the high pass filter must be set 5Hz lower than the port tune frequency to prevent woofer damage. FDP 6.900 V2 CONFIGURATION EXAMPLES 6 CHANNEL STEREO NON-BRIDGED (SEE GRAPHIC C1 ON PG 3) •...
- Page 3 (6 CHANNEL STEREO NON-BRIDGED) 75Hz 75Hz FLAT or HP FLAT or HP RADIO XOVER XOVER XOVER XOVER XOVER XOVER 75Hz FLAT or HP IF YOU ARE USING TWO SUBWOOFERS (SEE GRAPHIC C2 BELOW) • Put your woofer/tweeters on channel 1+2, 3+4. Set 1+2, 3+4 switch to HP.
- Page 4 • If you have six input wires from the source deck plug them into inputs 1+2, 3+4, 5+6. Set INPUT switch to 6. • Put your woofer/tweeters on channel 1+2, 3+4. Set 1+2, 3+4 switch to HP. Adjust 1+2, 3+4 HP frequency to 75 Hz. •...
- Page 5 (TRIAMP A SUBWOOFER, WOOFER, AND TWEETER) REMOTE SUB CONTROL SUBWOOFER WOOFER RADIO 75Hz LP/BP + – WOOFER TWEETER 20Hz 75Hz LP/BP TWEETER + – SUBWOOFER 3 CHANNEL BRIDGED (SEE GRAPHIC C5 BELOW) • Set INPUT switch to 6 Connect Front Left Channel from Source unit with Y adapter to input 1+2 Connect Front Right Channel from Source unit with Y adapter to input 3+4 Connect Sub output from you Source unit to input 5.
- Page 6 POWER FUSES & BALANCED/UNBALANCED SWITCHES POWER FUSES > TO USE: Remove the end panel by the power terminals 3 x 25 amp ATC fuse You should have an 80 AMP fuse at the battery. BALANCED/UNBALANCED SWITCHES > TO USE: Remove the end panel by the RCA jacks. The standard switch position is input ground “ON”.
- Page 7 You need to get more fresh cool air to the amplifier. Do not cover the amplifier or mount it flush into a hole. If the amp is cold and the Focal sign is flashing, there is an internal fault. The amplifier must then be returned for service.
- Page 8 The authorized dealer will then work with Focal America / Orca Design & Manufacturing to obtain service, if necessary. If found to be a defect due to manufacturing, the item will be repaired or replaced with a refurbished amplifier.
