ASSEMBLY INSTRUCTIONS FOR THE SR-15/25
SEAT
RIGHT END FRAME

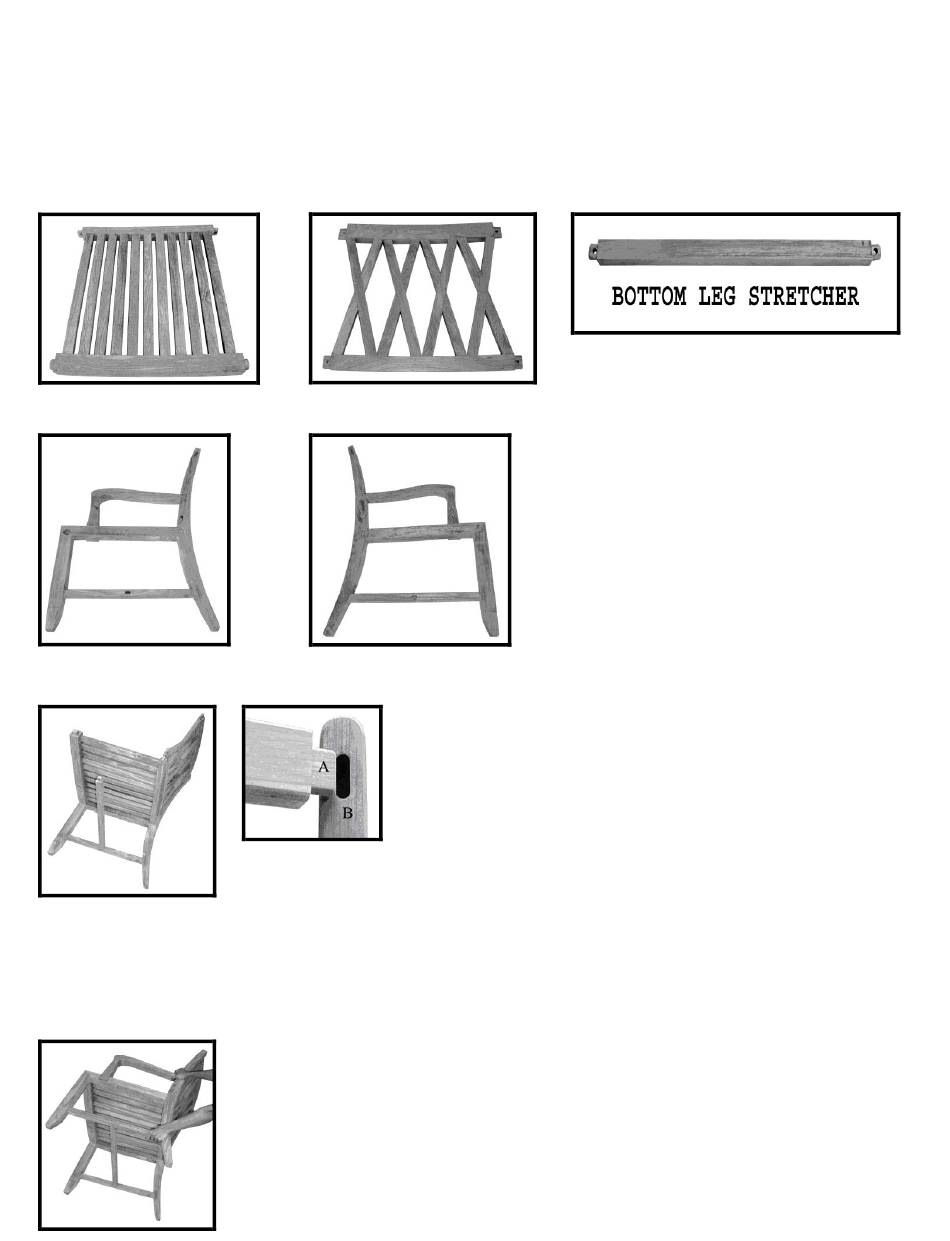

shown in the photographs. NOTE: BOTTOM LEG STRETCHER ends are cut at an angle as
the chair flairs outward toward the front; there is a FRONT and BOTTOM to the part. If
necessary, gently rock the BACK FRAME while pushing tenons into mortise holes until joints
fit snugly together.
KINGSLEY-BATE
Fine Garden Furniture
BACK
LEFT END FRAME
* NOTE:
A TENON
B MORTISE HOLE
STEP-II
Find the END FRAME with the stamped numbers
near the mortise holes and gently lay it down first.
Fit the BACK , BOTTOM LEG STRETCHER and
SEAT tenons into the end frame mortise holes as
STEP-III
Fit the remaining end frame mortise holes over and onto all exposed
tenons.
STEP-I
Unpack, inspect and lay the parts on
a clean, flat, soft surface to avoid
marring the wood.
NOTE: During assembly of the
furniture please match all joints with
the corresponding letters or numbers
stamped on the furniture.
