Complete - PENTAGON DefendaGuard Manual Operation

6

COMPLETE

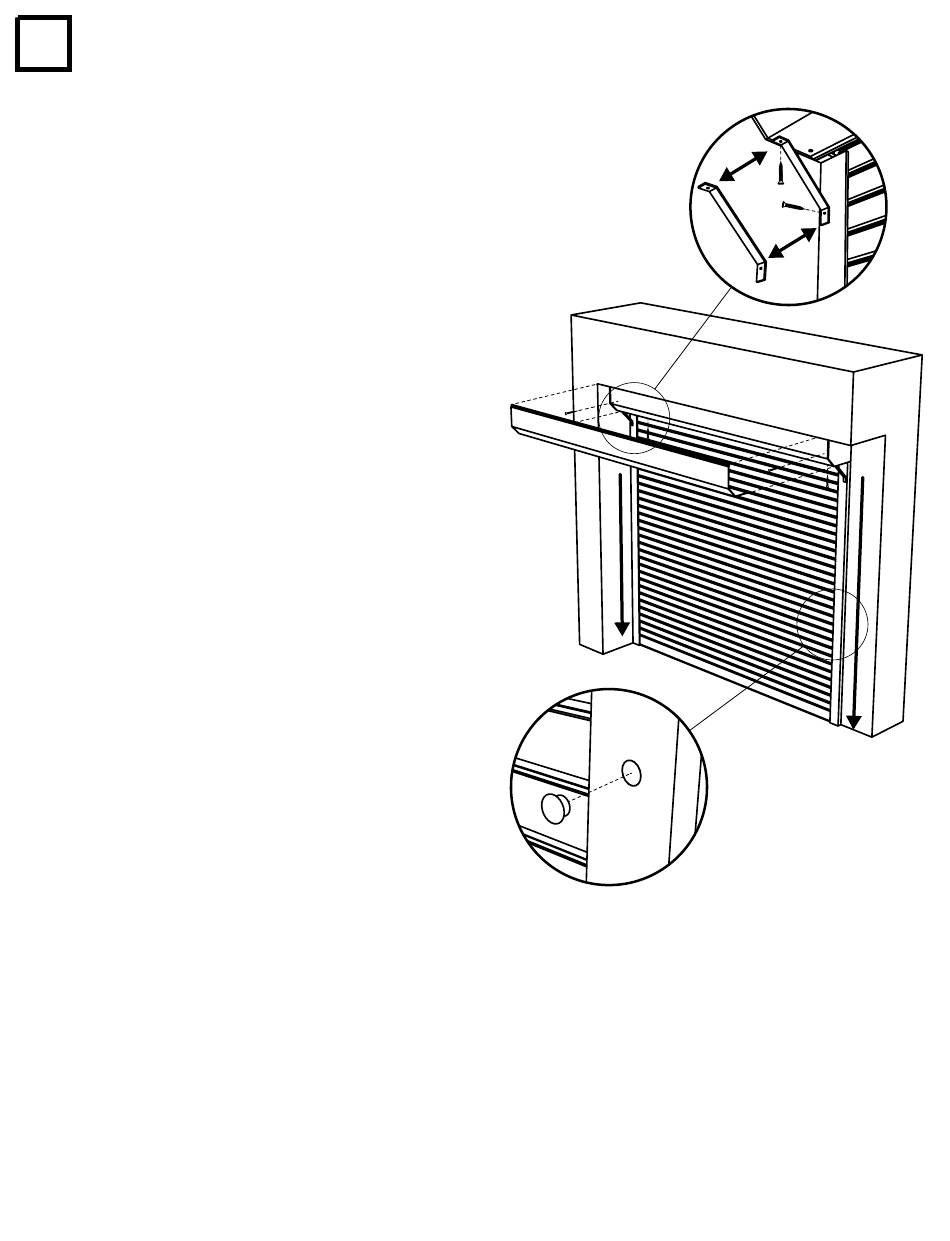

1. Put the curtain down into the closed
position.
2. If your shutter has support brackets:
Remove the support brackets (K) in
order to complete the next step.
3. Replace the box housing (A) cover lid
and secure it with the four screws you
removed in stage 1 of the installation.
4. If your shutter has support brackets:
Replace the support brackets (K) you
removed in step 2.
5. Put the screw hole covers (I) into the
installation holes on the surface of the
guide rails (C).
6. If your shutter is installed outdoors:
The shutter must be sealed to the wall.
Put a good bead of suitable exterior
caulking where the shutter meets the
wall along the top and on both sides of
the shutter.
20 SIX: COMPLETE
