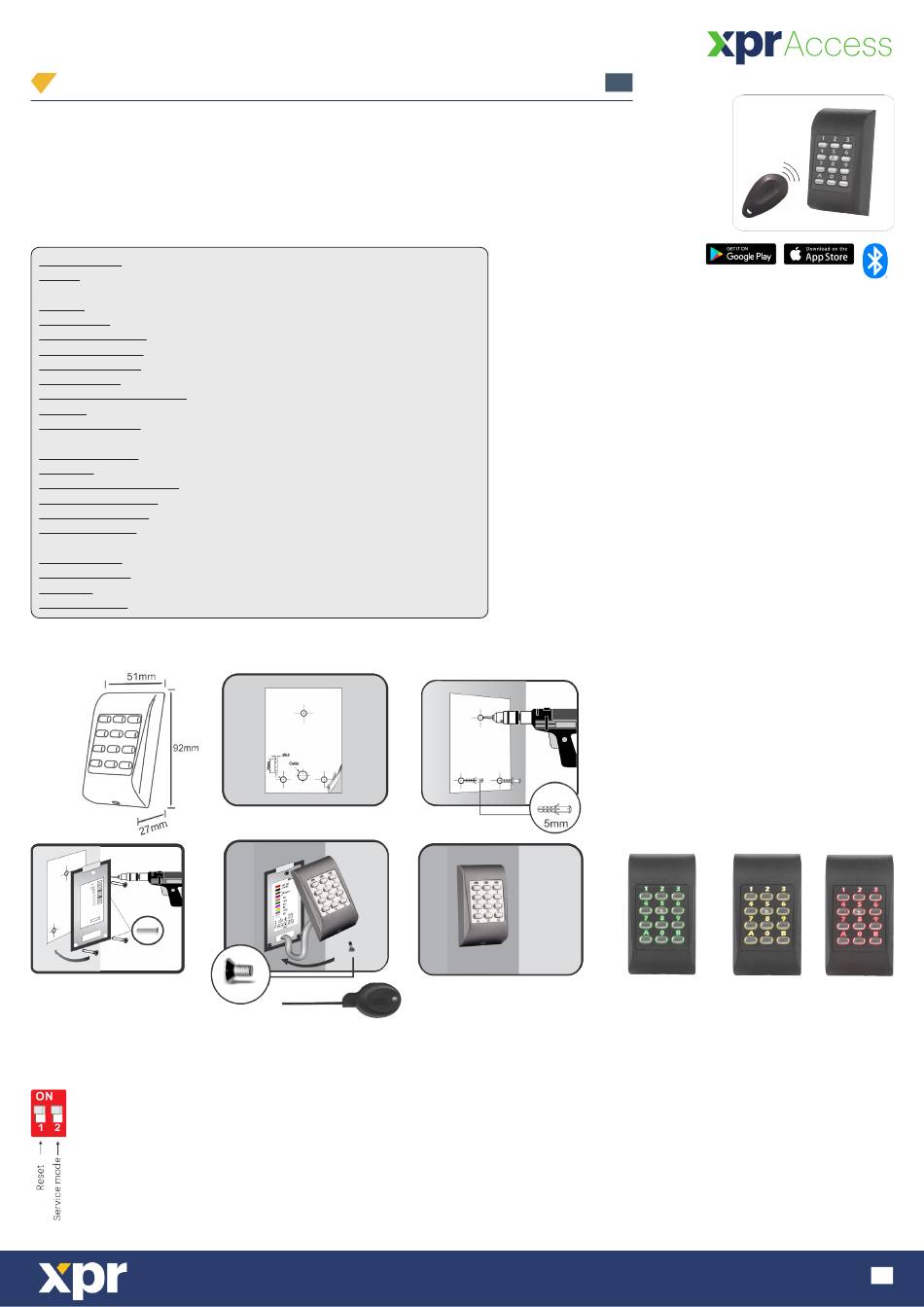

XPR Access MTPADP-BT-EH-SA User Manual

MTPADP-BT-EH-SA
1. SPECIFICATIONS
User capacity:
Relays:
Output:
Entry mode:
RFID reading type:
Reading distance:
PIN Code Length:
Power supply:
Buzzer, backlight control:
Tamper:
RS-485 interface:
Door Open Time:
IP Factor:
Operating Temperature:
Operating Humidity:
Firmware upgrade:
Wiegand output:
Programming:
Door operation:
Holidays:
Event capacity:
2. MOUNTING
3 (3 x 30mm)
3. RESET READER TO DEFAULT
1. Turn the device OFF
2. Put dipswitch 1 to position ON
3. Turn the power ON
4. Wait approx. 15 seconds until continuos beeps.
5. Put dipswitch 1 to OFF
6. Wait for long beep and orange back light led.
Bluetooth® standalone keypad with integrated RFID reader
USER'S MANUAL
100 Cards and 100 PIN Codes
1 or 2 depending on the remote relay unit
1 with RTT and RU1 and 2 with RU2 and DINRTT
RS-485, Wiegand
PIN Code, Card, PIN Code or Card
EM 4002/4100 and HID (125kHz)
up to 4cm
6 Digits
12 VDC; max. 100mA
Yes, ON/OFF via XPR Smart Admin
Yes
Yes, for connecting I/O boards like
RU1, RTT, RU2, DINRTT
0 to 255 sec. or toggle (ON/OFF mode)
IP65
20ºC to +50ºC
5% to 95% RH without condensation
Yes, via Bluetooth® wireless technology
Wiegand 24, 26, 32, 34, 56, 58 bits
or 4, 6, 8 bit per key for the keypad
via XPR Smart Admin
via XPR Smart Access
24
4000
1 (M3 x 6mm)
www.xprgroup.com
EN
Important note:
The Bluetooth® reader comes with RU1 remote relay unit.
Make sure to make firmware update with the latest available firmware.
Access Granted
(Output 1 or 2)
The reset procedure will bring the reader to default.
The password will be deleted, all the users and the reader will
be unpaired from the remote relay unit.
Unpairing the reader after reset, prevents unauthorized reset
and keeps the unit in high security state.
Tricolor indication LED
Idle Mode Access
Denied
Rev. 1.02 - 22.02.2022
